DUPLEX twin type automatic packing machine for snacks

ASK FOR A QUOTE

Please enter your demands, our sales staff will offer you in 6 hours.

Clicks:
  • Product Description
  • Video

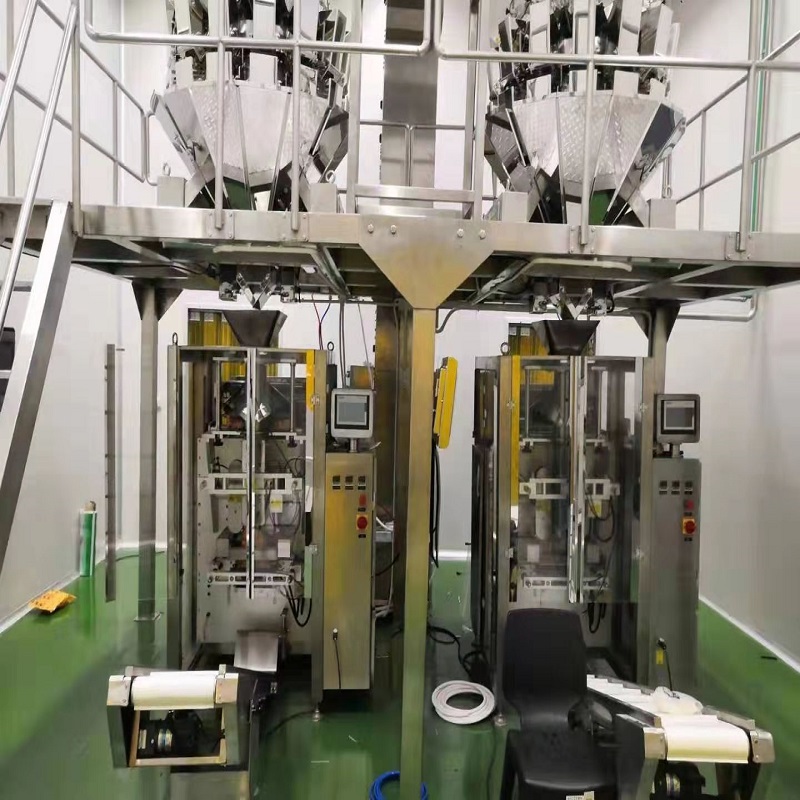

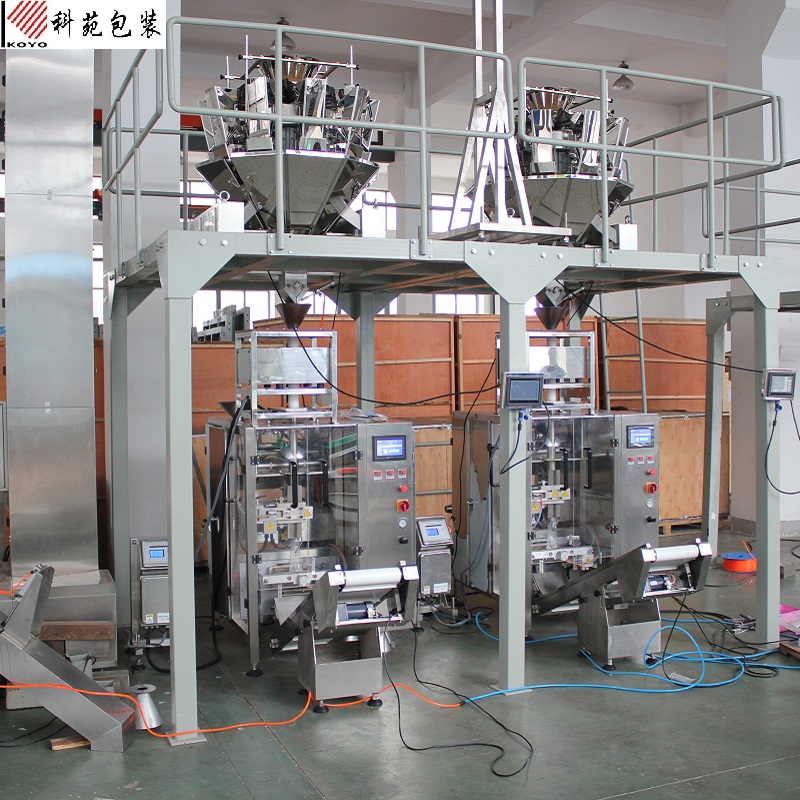

  • This unit is for granule products automatic bag making, material weighing & Filling, sealing, date coding etc. Includes Bucket elevator for Material feeding one set,combination multihead weigher 2 sets,Supporting platform with guardrail & Ladder 2sets, vertical packing machine 2 sets ,Take off conveyor 2sets ,used for weighing filling packing puff food, snacks into plastic bag



    Advantages:

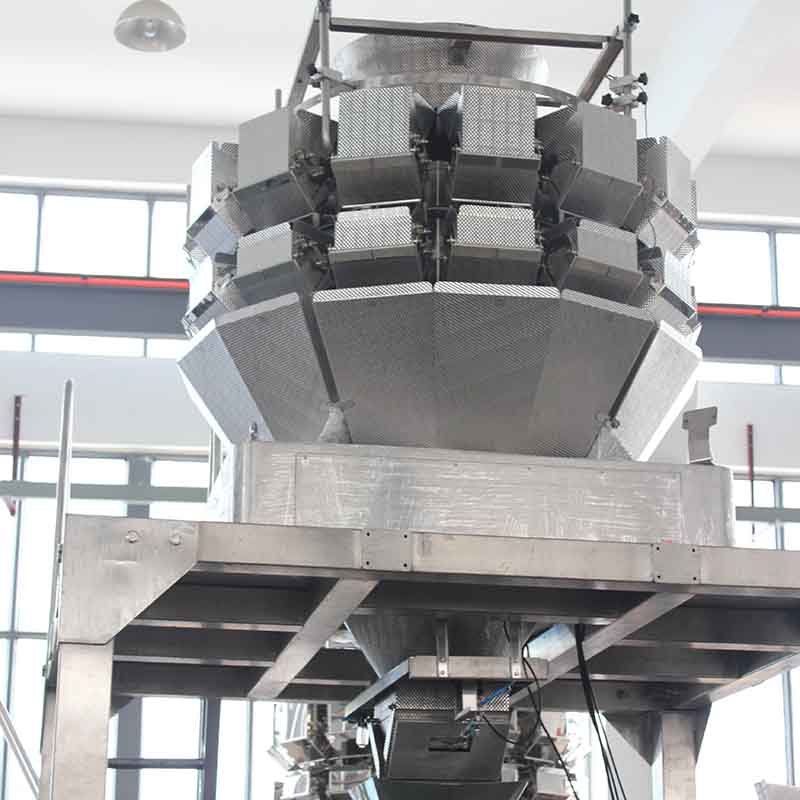

    Combination weigher

    Adopt high precision and high accurate loadcell of famous brand, resolution is improved up to 2 decimal;

    Program recovery function can reduce operation failures and support multi-segment weight calibration;

    No products auto pause function can improve weighing stability and accuracy;

    100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation;

    Linear amplitude can be adjusted independently in the running;

    Many languages available for global markets.

    Mechanical Character

    Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy;

    Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.

    Vertical packing machine

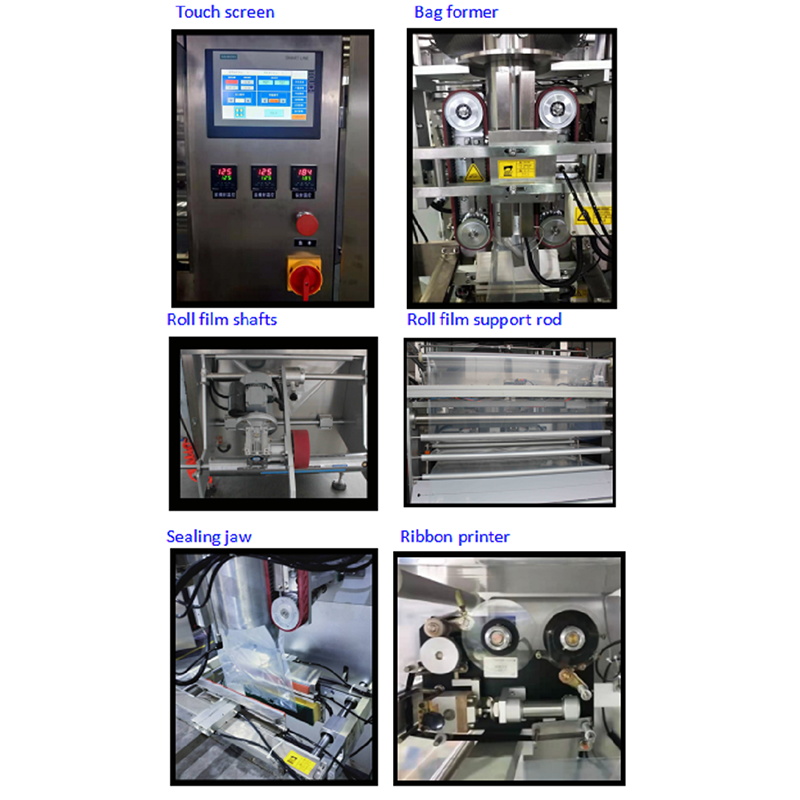

    This machine own functions of bag-making,sealing,date printing,cutting,etc.

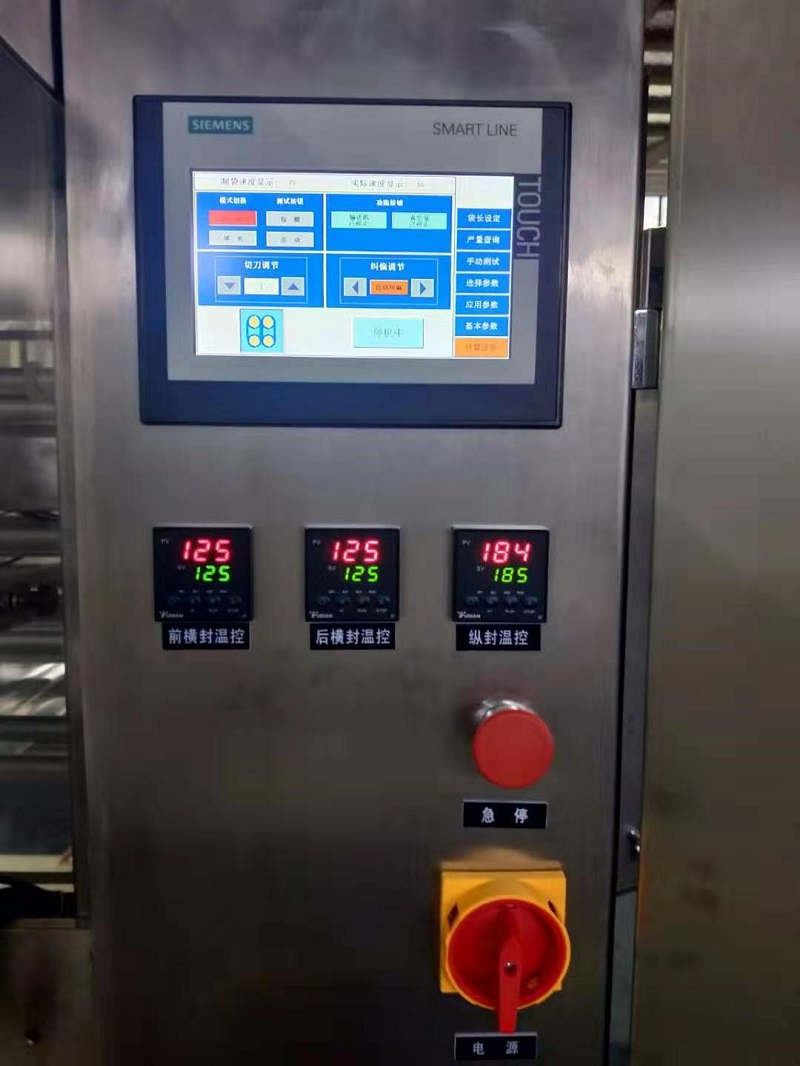

    Adopts Siemens PLC & Touch ScreenPANASONIC servo motor, Japanese Photo Sensor, Korean Air valve,Schneider electrical components,etc.

    Can be used for making pillow bag,gusset bag,hole-punching bag, box type bag,etc.

    Can be installed with ribbon printer, thermal transfer coding machine,label sticking machine for printing dates,letters,QR code,bar code and sticking labels on bag.

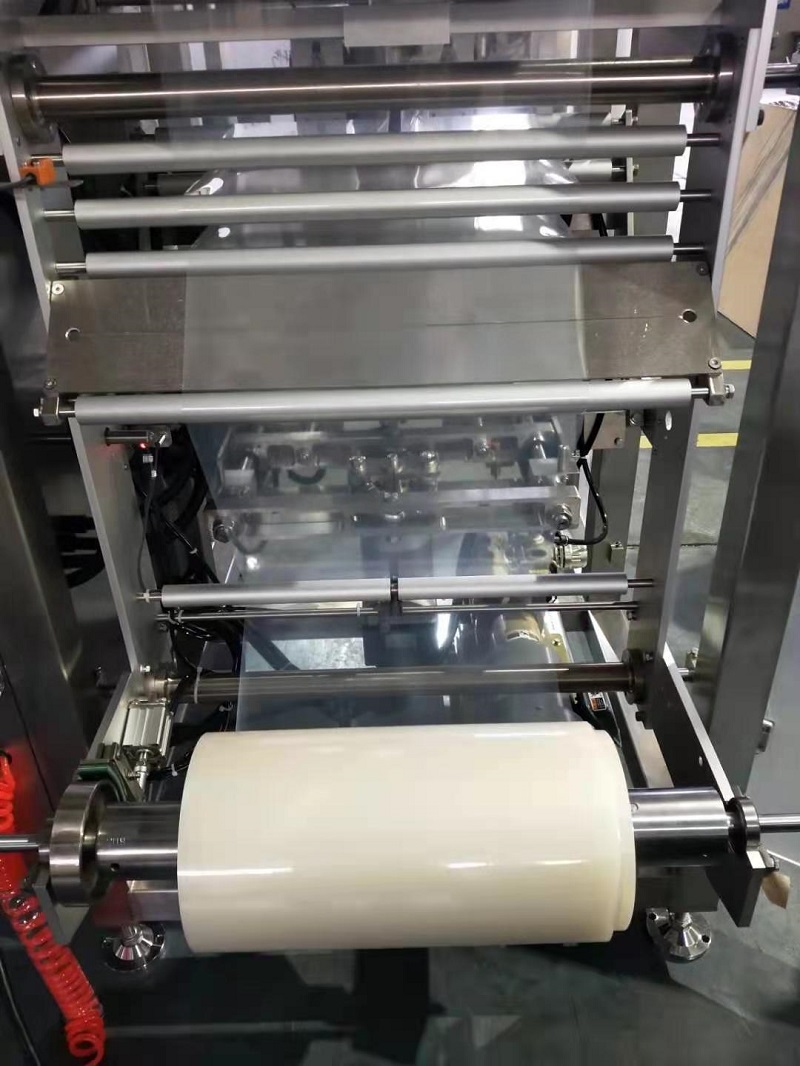

    Automatically form and make a bag by using roll film



    Technical information:

    Bag material: laminated roll film;

    Bag type: pillow or gusset type bag.

    Bag size:(50mm-280mm)*(70mm-180mm)(L*W);

    Weighing range: 10g—500g;

    Packaging speed: 100-120 bags/min(according the packaging weight and the bag size );

    Accuracy: 0.5g-1g (according the packaging weight and the bag size );

    Power supply: AC380V, 3Phase, 50Hz, 10KW;

    Compressed air requirement: 0.6M3/Min, 0.6MPa;
