Combination weigher

Adopt high precision and high accurate loadcell of famous brand, resolution is improved up to 2 decimal;

Program recovery function can reduce operation failures and support multi-segment weight calibration;

No products auto pause function can improve weighing stability and accuracy;

Linear amplitude can be adjusted independently in the running;

Many languages available for global markets.

Mechanical Character

Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy;

Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.

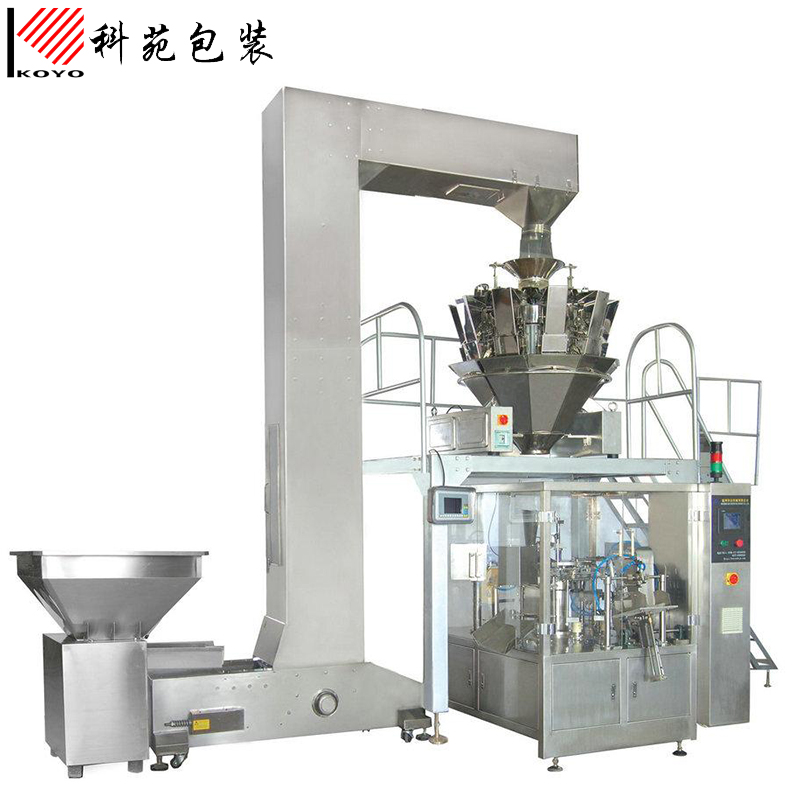

Premade bag packing machine

Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

Safety device: Machine stop at abnormal air pressure, heater disconnection alarm

With independent touch screen for seting parameters

Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.

The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.

Use no oil vacuum pump, avoid polluting the environment in the production.

The opening zipper framework is special in the feature of zipper bag,it can avoid distortion or destroy when open the zipper

Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food

Model

Weigher/Filler

Working station

Bag type

Bag size:(mm)

Max speed

KYG6-200

ZH10

6

Pillow bag,

4 side/ 3 side seal bag,

W(80-200)*L(100-300)

50BPM

KYG6-260

ZH10

6

W(130-260)*L(100-300)

50BPM

KYG6-300

ZH14

6

W(180-300)*L(200-500)

40BPM

KYG8-200

ZH10

8

Pillow bag,

4 side/ 3 side seal bag/

Stand up bag with Zipper/doy bag

W(80-200)*L(100-300)

50BPM

KYG8-260

ZH10

8

W(130-260)*L(100-300)

50BPM

KYG8-300

ZH14

8

W(180-300)*L(200-500)

40BPM
