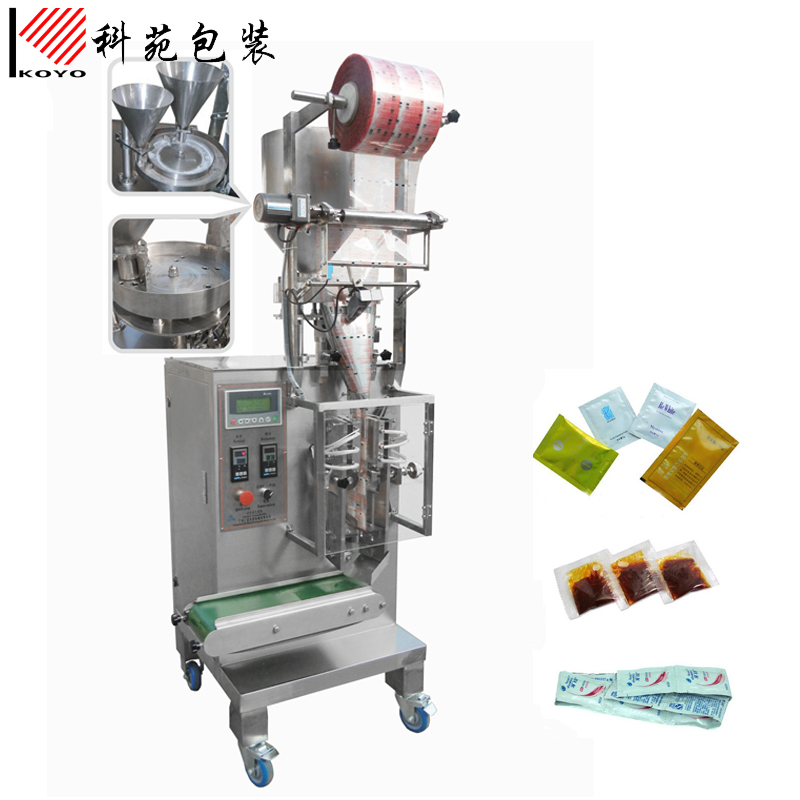

Introduction:
This Machine is suitable for pharmacy,food,household chemicals,plastic products and other special industry and other loose type and inviscid granule material.Such as seeds,Chinese Drugs, feeding stuff,medicinal granules,piller, monosodium glutamate,salt,sugar,soup blend,oat,tea,active carbon,washing powder,dryer,etc.
Application:
Advantages:
|
1 |
Automatic packing machine can finish the process like conveying bag,filling,weighing,sealing,cutting,counting,lot number,etc. |
|
2 |
2.7 inch touch screen,Mitsubishi, Japan PLC control, stainless steel cabinet.Set up the required data(include filling,weighing,bag size,etc) in the visuable settings,the control system automatic optimization match with all the program so that achieve the best packing speed precisely. |
|
3 |
Stepper Motor control,this system has the advantage of precise,needless to adjust the other parts.
|
|
4 |
It has color system controller,so that can get the complete trade mark design. |
|
5 |
Suitable for the complex film and tin foil and other packing material.Fine packaging performance,low noise,clear sealing texture and strong sealing performance.
|
Technical parameters:
|
Model |
KYK60B |
|
Capacity |
30-60bags/min |
|
Measuring range |
1-100ml |
|
Bag size |
（L）40-200、（W）20-100mm |
|
Max film width |
220mm |
|
Sealing type |
Back seal |
|
Power |
1350w |
|
Net weight |
260kg |
|
Voltage |
220V/50-60HZ、380V/50HZ |
|
Packing material |
aper/PE,Polyester/aluminum foil/PE,nylon/polyethylene,tea filter paper,etc. |
|
Overall size |
L800×W800×H1750mm |
