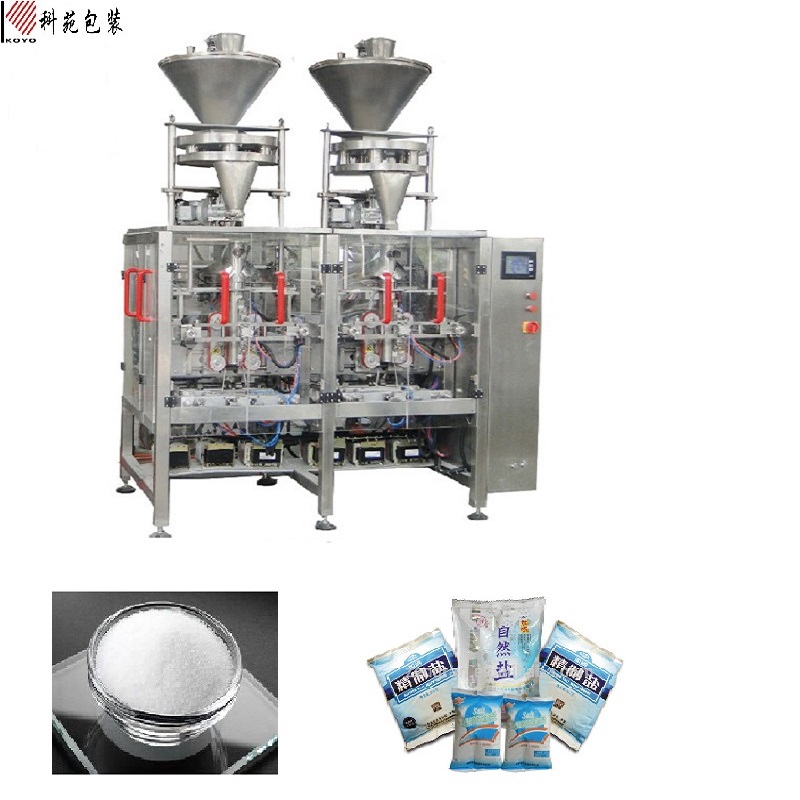

Cup filler

This machine is for salt weighing and filling. Including hopper,rotation panel with cups, cup volume adjustment device and frame etc. The contact parts be made by 316S.S and the frame be made by 304 S.S.

China main 3 Phase motor for filling;

Separate motor Hopper agitator to prevent salt block inside the hopper;

Siemens control for cup filling;

Schneider electronics;

Dust extraction connection can be choose.

The cup volume can be adjust 20% up and down

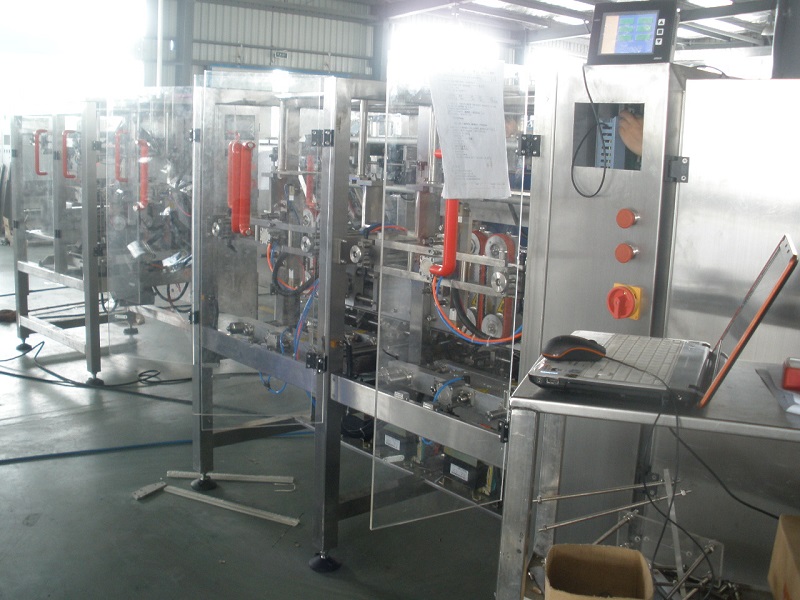

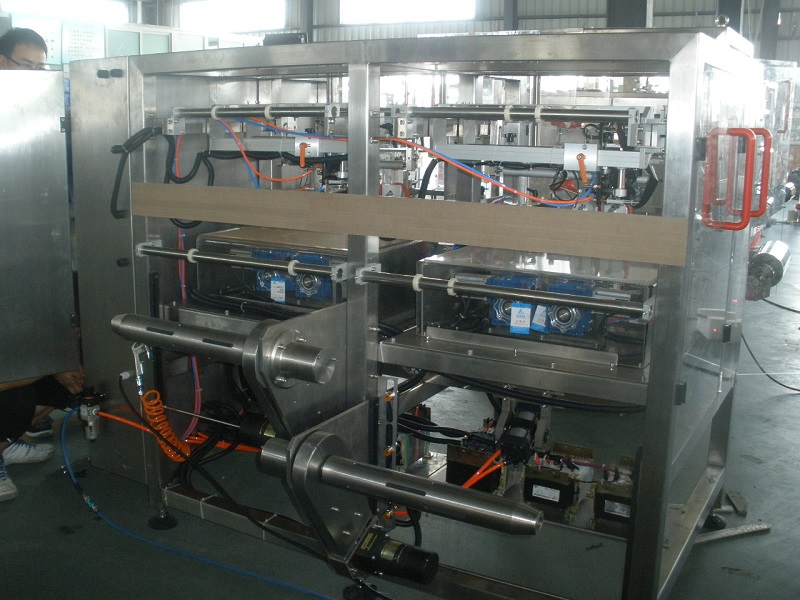

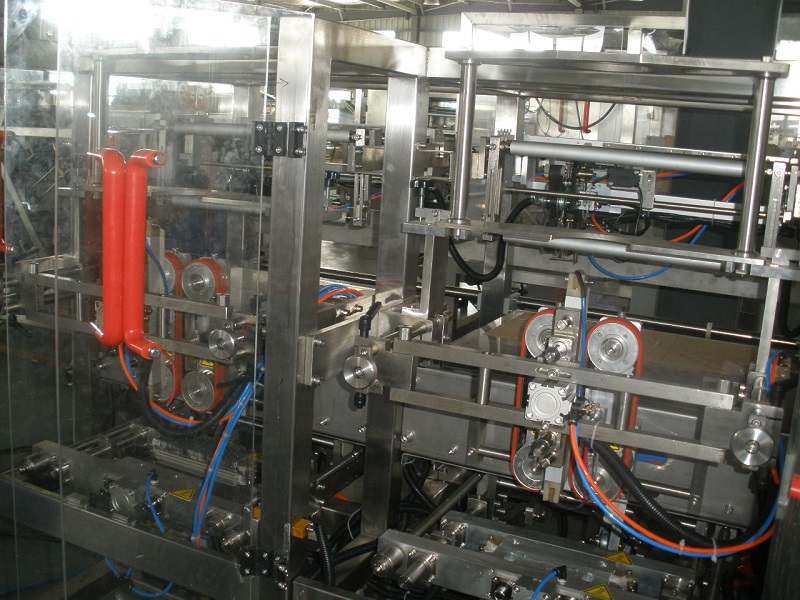

Vertical packing machine

This machine own functions of bag-making,sealing,date printing,cutting,etc.

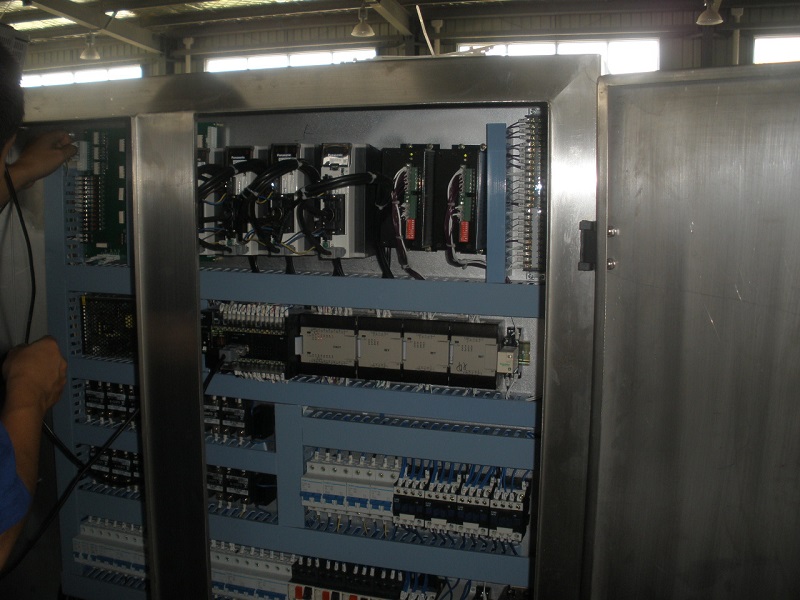

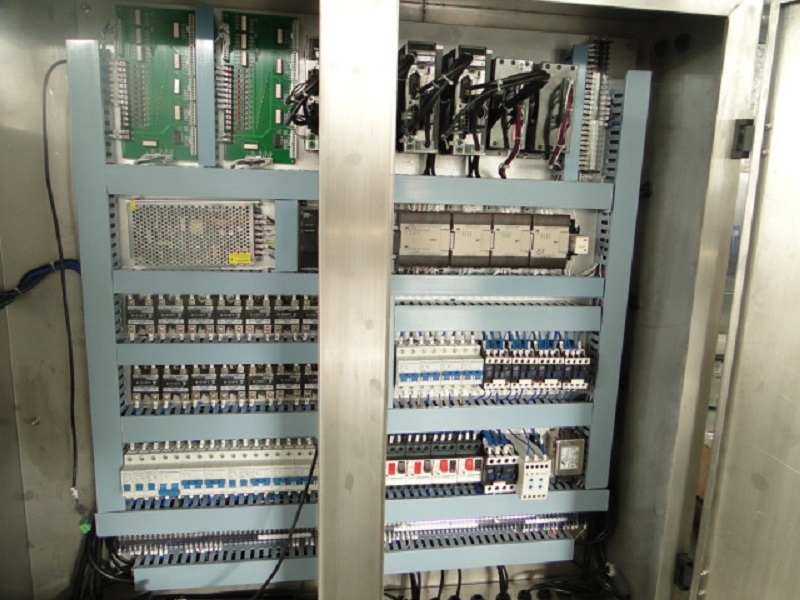

Adopts Siemens PLC & Touch Screen，PANASONIC servo motor, Japanese Photo Sensor, Korean Air valve,Schneider electrical components,etc.

Can be used for making pillow bag,gusset bag,hole-punching bag, box type bag,etc.

Can be installed with ribbon printer, thermal transfer coding machine,label sticking machine for printing dates,letters,QR code,bar code and sticking labels on bag.

Automatically form and make a bag by using roll film

With independent touch screen for seting parameters
