Continuous high speed snack food packing machine

ASK FOR A QUOTE

Please enter your demands, our sales staff will offer you in 6 hours.

Clicks:
  • Product Description
  • Video
  • Introduction:

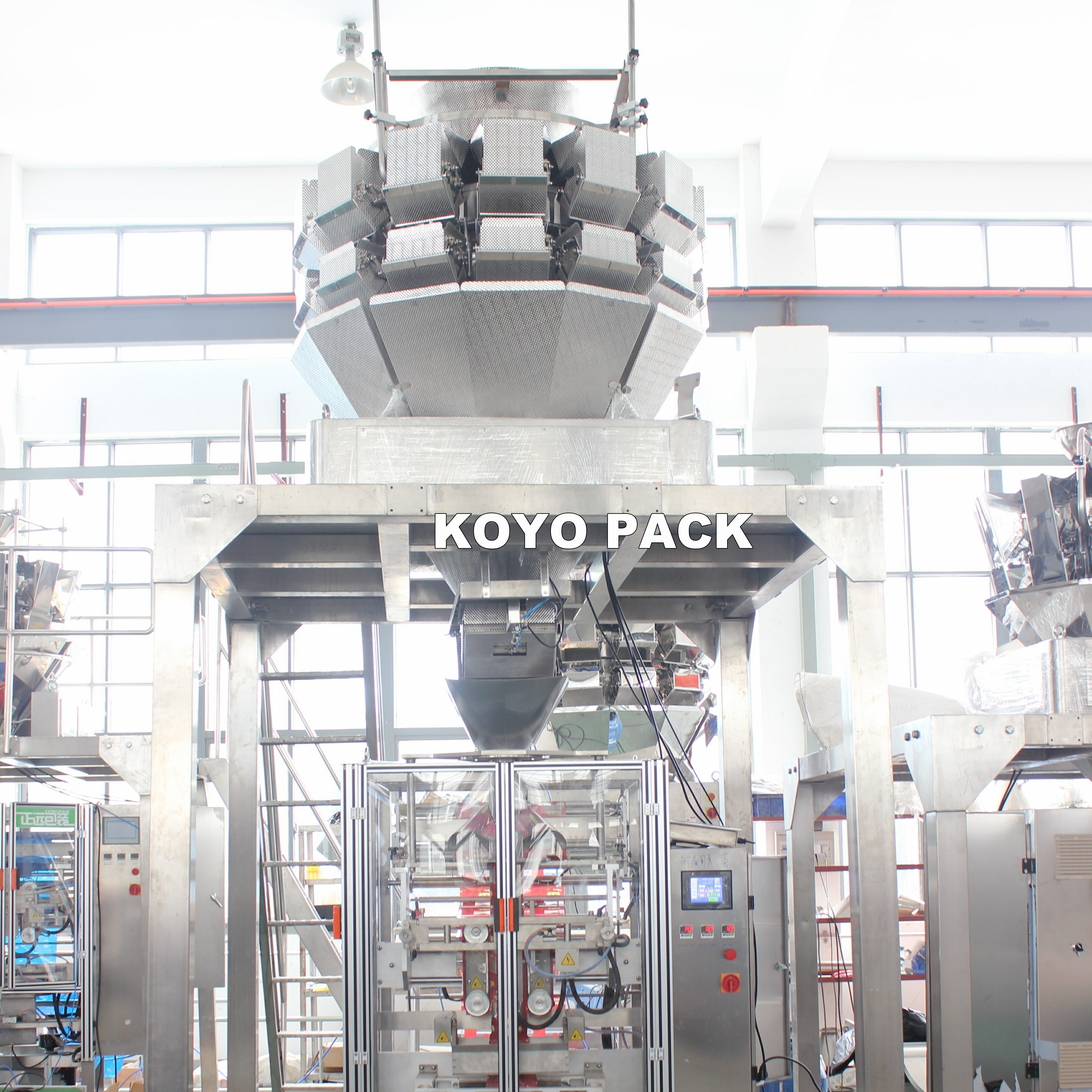

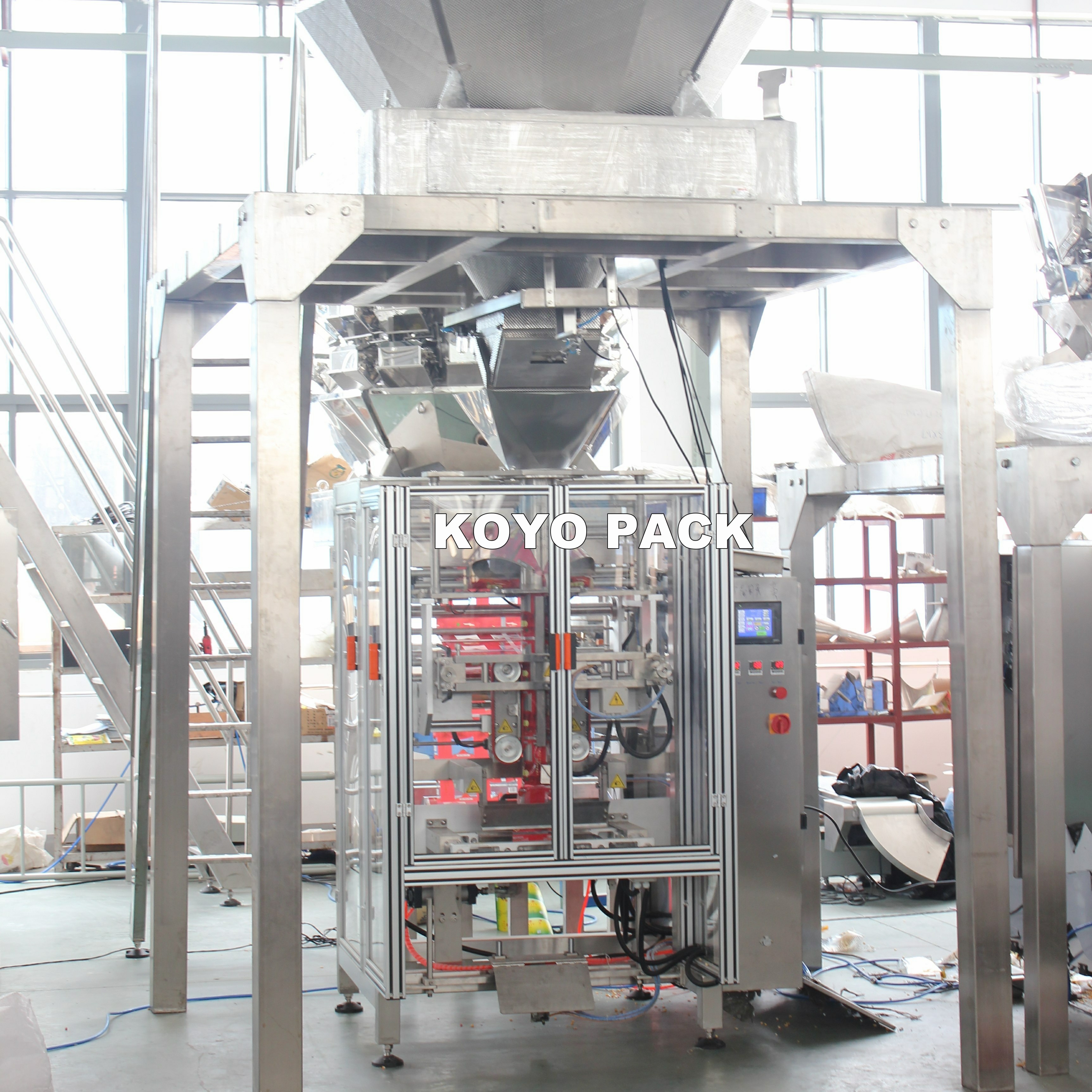

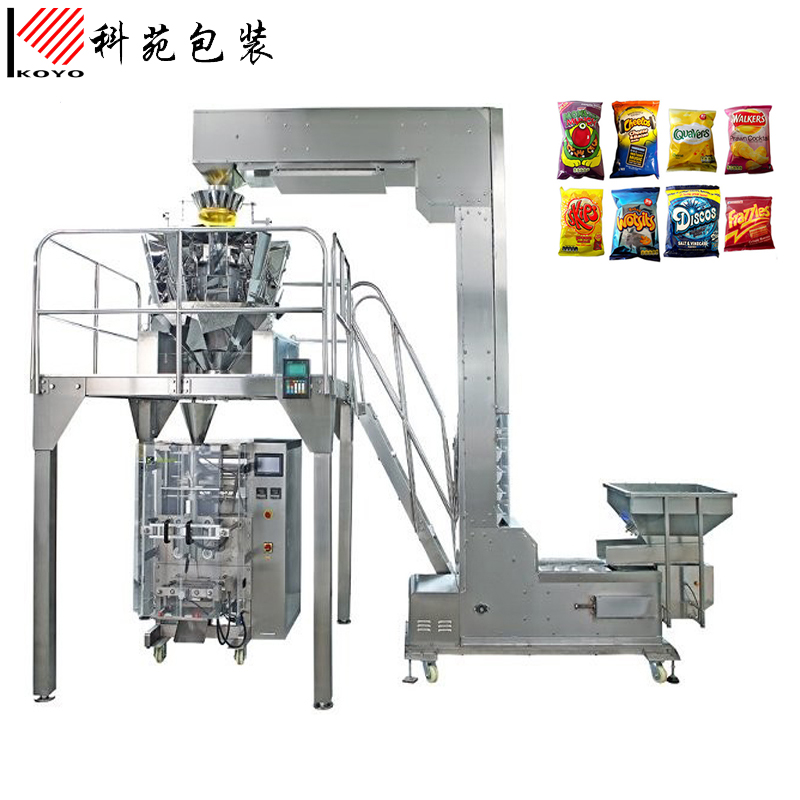

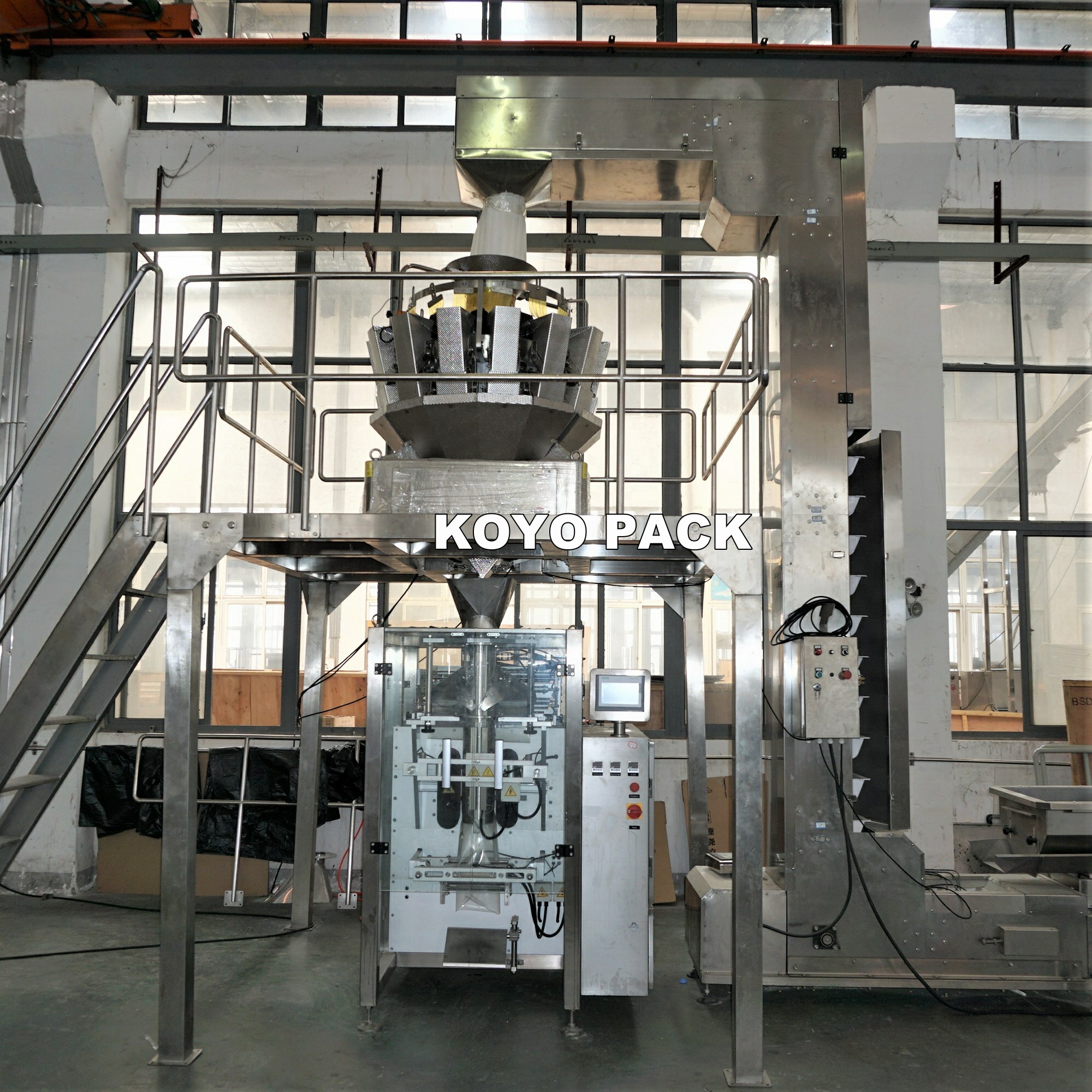

    This packing unit consists of one continuous high speed packing machine for bagging ,one set combination weigher for weighing , one z type bucket elevator for feeding ,one platform for supporting weigher and one conveyor for taking off the finished bags .It integrates functions of automatic bag-making, weighing, filling, sealing, printing, cutting and sealing into one. The advanced design has guaranteed this machine suits for packaging snack foods, speed can reach 100-120bags per min.Its adjustment , operation and maintenance are very convenient.









    Application:




    Sample bags:


    Advantages:

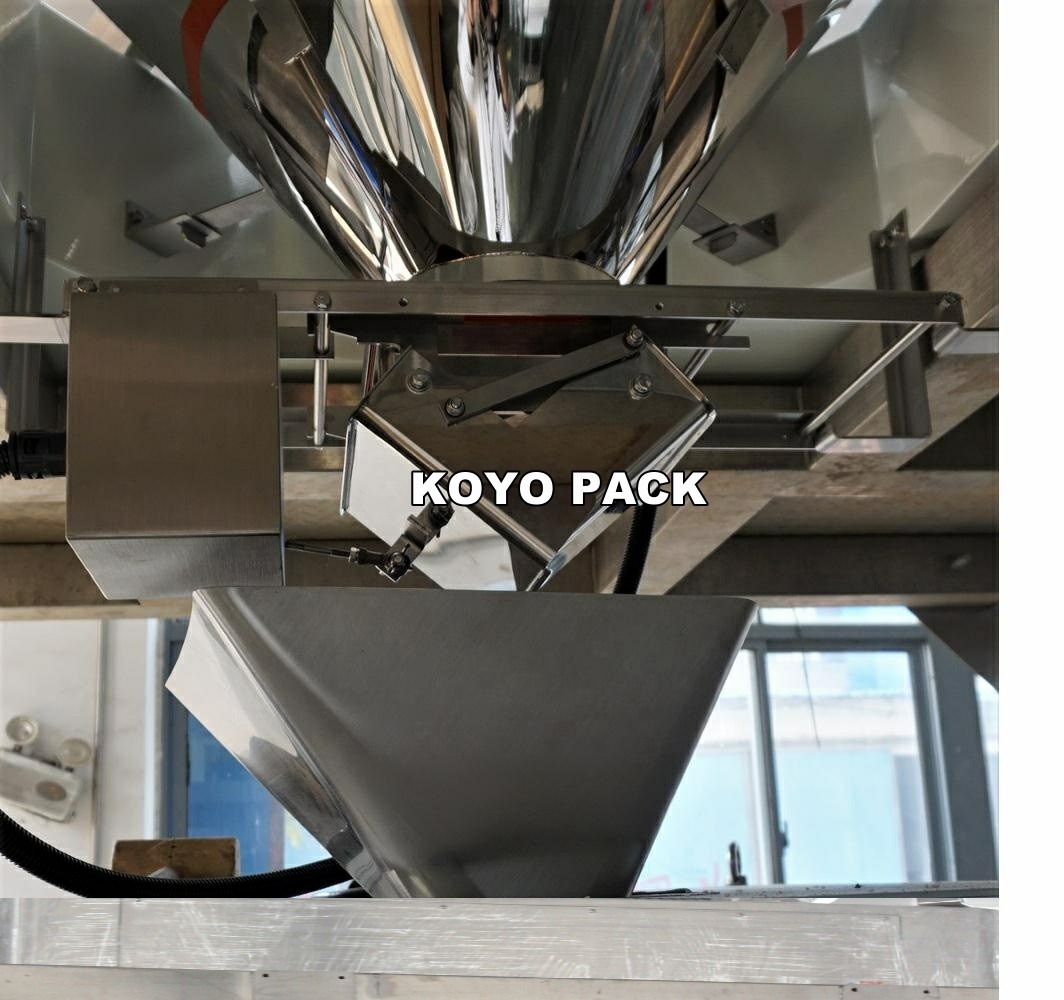

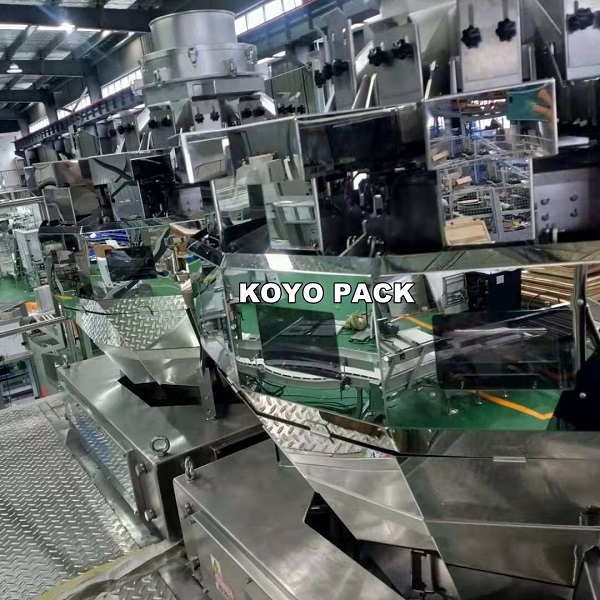

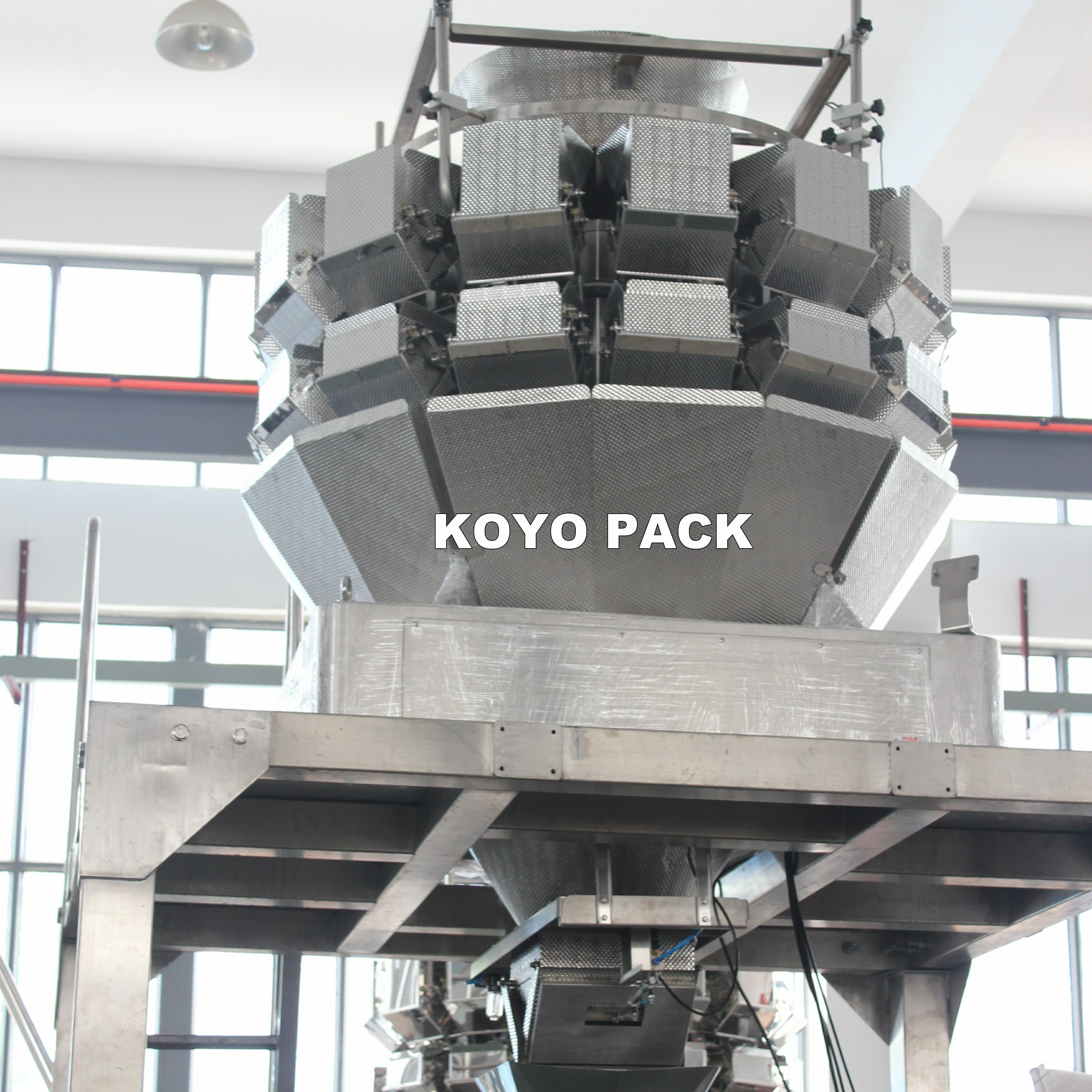

    Combination weigher

    Adopt high precision and high accurate loadcell of famous brand, resolution is improved up to 2 decimal;

    Program recovery function can reduce operation failures and support multi-segment weight calibration;

    No products auto pause function can improve weighing stability and accuracy;

    100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation;

    Linear amplitude can be adjusted independently in the running;

    Many languages available for global markets.

    Mechanical Character

    Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy;

    Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.

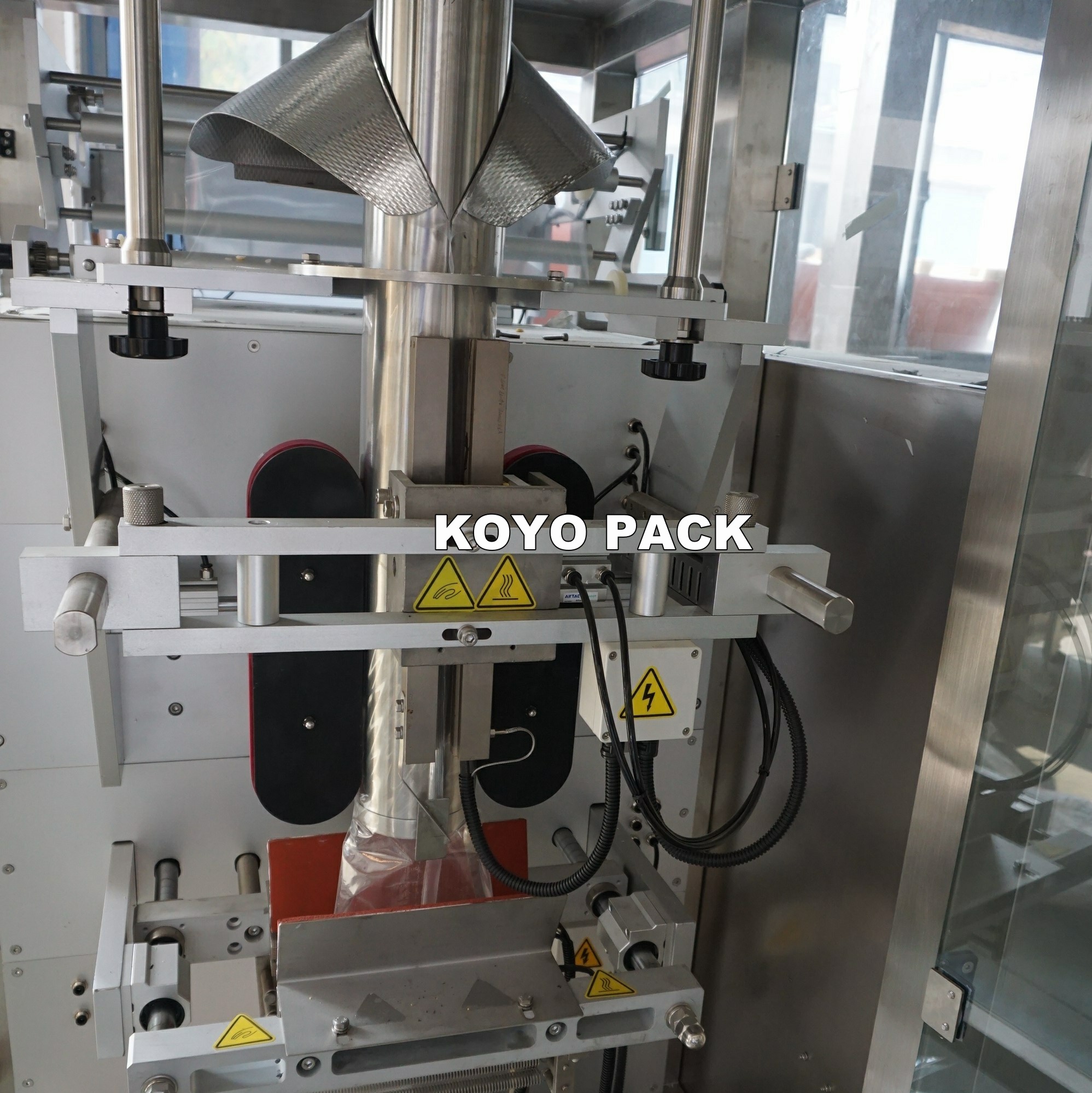

    Continuous high speed packing machine

    This machine own functions of bag-making,sealing,date printing,cutting,etc.



    Adopts Siemens PLC & Touch ScreenPANASONIC servo motor, Japanese Photo Sensor, Korean Air valve,Schneider electrical components,etc.

    Can be used for making pillow bag,gusset bag

    Can be installed with ribbon printer, thermal transfer coding machine,label sticking machine for printing dates,letters,QR code,bar code and sticking labels on bag.

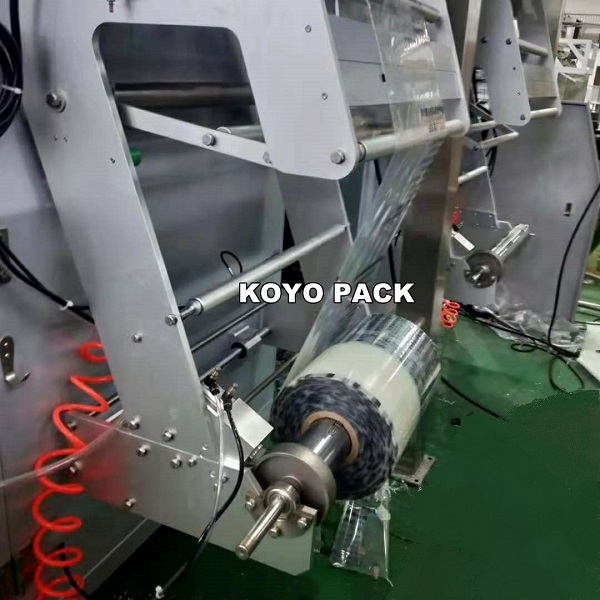

    Automatically form and make a bag by using roll film

    Adopts continuous and uninterrupted film-pulling and sealing technology to reach a high speed packaging



    Technical parameters:

    Model

    KY-5000G

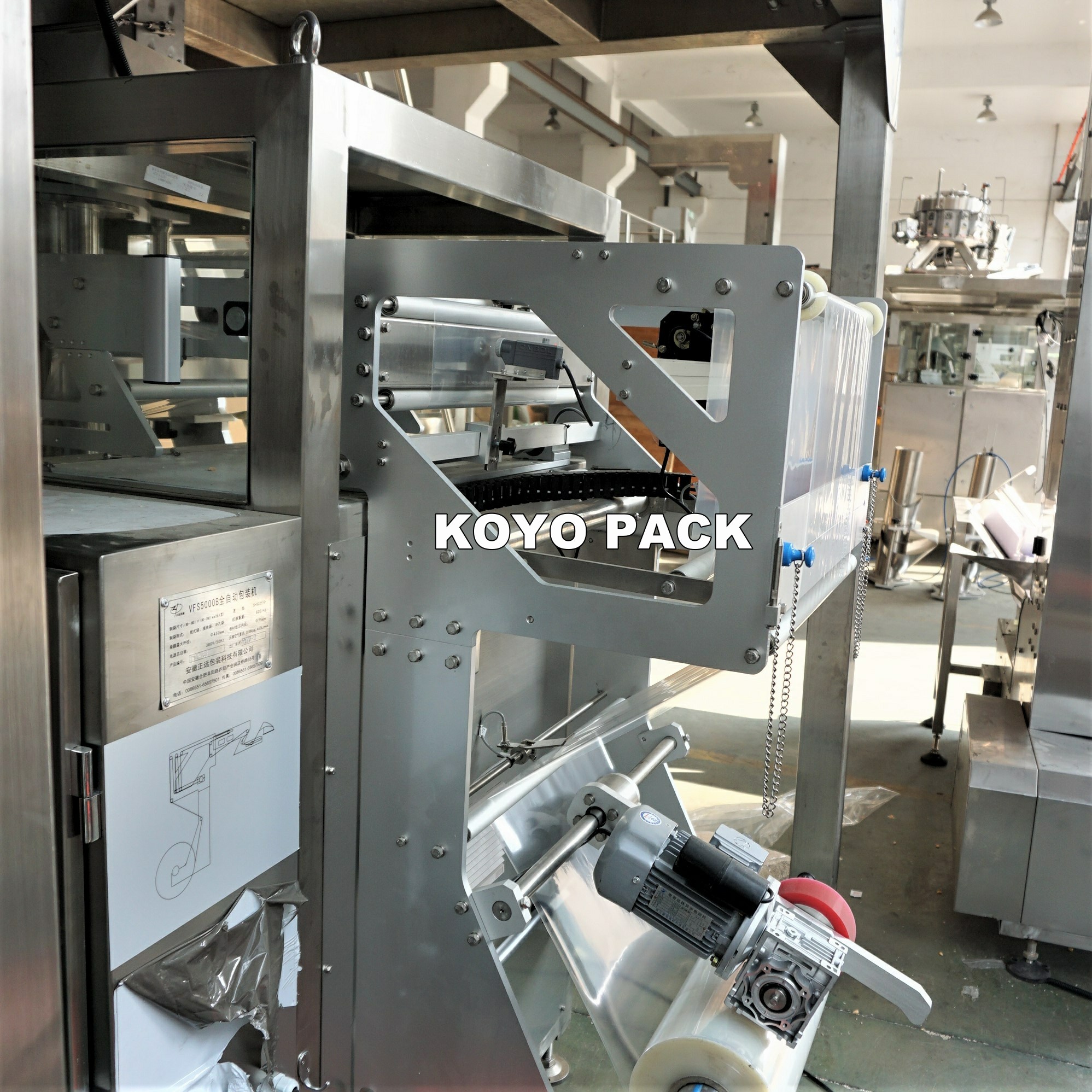

    Film auto shift on machine

    Electric adjustment;

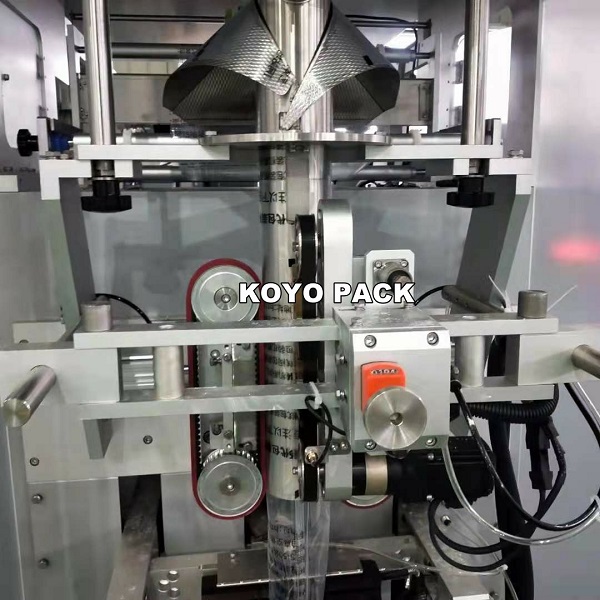

    Film pulling

    Double servo motor;

    Pulling belt

    Normal double belt;

    Horizontal sealing

    Continue type

    Cutter

    pneumatic blade;

    Vertical seal

    mechanical;

    Bag type

    pillow type without hole punching;

    Bag material

    Laminated roll film

    Bag size

    (50mm-380mm)*(70mm-260mm)(L*W);

    Max speed

    400g 100-110bpm;

    500g 90-100bpm;

    1000g 75-85bpm;

    Compressed air requirement

    0.6MPa,0. 36m3/min.

    Power supply

    AC380V 3 Phase 5.5KW
