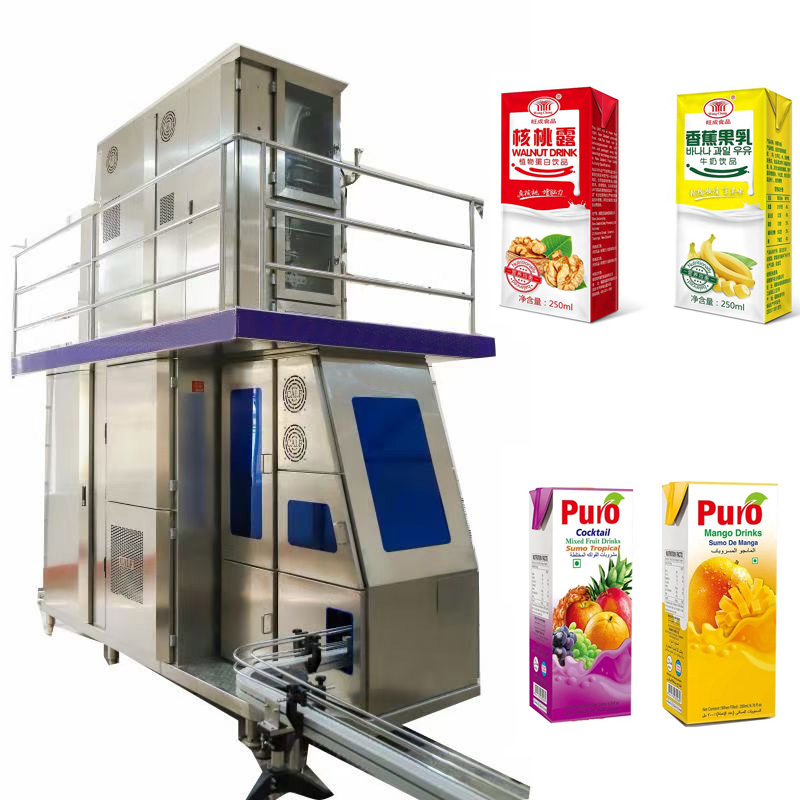

Auto UHT Milk Carton Packaging Machine

1. Workflow:

Put rolling card board into holder (manually) → Bottom preforming → Bottom heating and sealing → Ultrasonic capping (Optional) → Filling → Top preforming → Top heating and sealing → Date printing → Finished product - stick the straws to the finished products (Optional) - output.

Machine features:

1: Automatic feeding, sterilization, box making, filling, forming and sealing functions are complete in one time. The composite material is sprayed with hydrogen peroxide and high-intensity ultraviolet radiation and dried by aseptic hot air. The forming of the packaging box, the filling of the material and filling of the closures are done in a sterile room with positive pressure to ensure aseptic packaging materials and equipment so packaged UHT-sterilized fruit drinks shelf-life of up to one year at room temperature.

2: The machine's PLC, photo electric correction, frequency control, Pneumatic, solenoid valve, vacuum system, liquid level control, intelligent electronic temperature control, Automatic fault alarm system, Sterile room etc. are all from well-known brands in Germany, Japan and other countries. The whole machine is made of stainless steel, the appearance is beautiful, easy to operate, using quality weighing system control, quantitative filling, filling more accurate.

3. The use of mirror welding technology to ensure smooth weld formation, leaving no health corner.

4. Product valves and filling head moving parts using steam barrier protection, filling room with steam sterilization.

5. Using programmable logic controller for automatic device operation.

6. Product warranty period: Using paper based composite packaging material, the shelf life is 12 months at room temperature of 25 to 30 degrees.

7. Suitable for packing material:Polyethylene/ paper (cardboard) / polyethylene / aluminum foil / polyethylene / polyethylene six layer web base composites.

Model：KY-3000

Filling volume：200ml (one machine only can pack one model)

Product name：Packaging machine

Shelf Life：Juice 9- 12 months/Milk 7 months

Filling speed：3000 cartons per hour for 200ml (Stand model)

Over all dimensions：4600mm(L)x 2000mm (W)x 4300mm(H)

Weight：1600kg

Total Power：49KW (actual power consumption 23kW)

Power Source：50Hz, 380/220V

Operating system：Human machine inter face, PLC and touch screen

Chilling system：Pure water

Operating environment：Temperature 10-32℃, Humidity 20-60% rh

Air source pressure：0.8- 1.0MPa

Air consumption：1.2m3/min (0.8MPa- 1.0MPa)

Filling temperature content：15-25℃

Steam consumption：2.4kg/hr ( 130±5℃, 0. 17±0.03MPa)

Filling content viscosity：<30cP

H2O2 concentration：30-50%

H2O2 usage amount：1.4-2.5L/hr

Purified water usage amount：15L/hr (0.3-0.45Mpa,<20℃)

Lubricating oil type：320#

Straw Adhesion Machine can stick straws on the surface of various beverage packages to increase the packaging quality of beverages and increase the convenience of consumption. It is especially suitable for sticking on the surface of cartons, plastic cups, plastic bottles and other surfaces.

The machine complied with PLC automatic control system, which can automatically complete the process of product transportation, straw conveying, suction pipe cutting, product gluing, and straw affixing. It is reliable in operation and reaches the technical level of similar international products.
