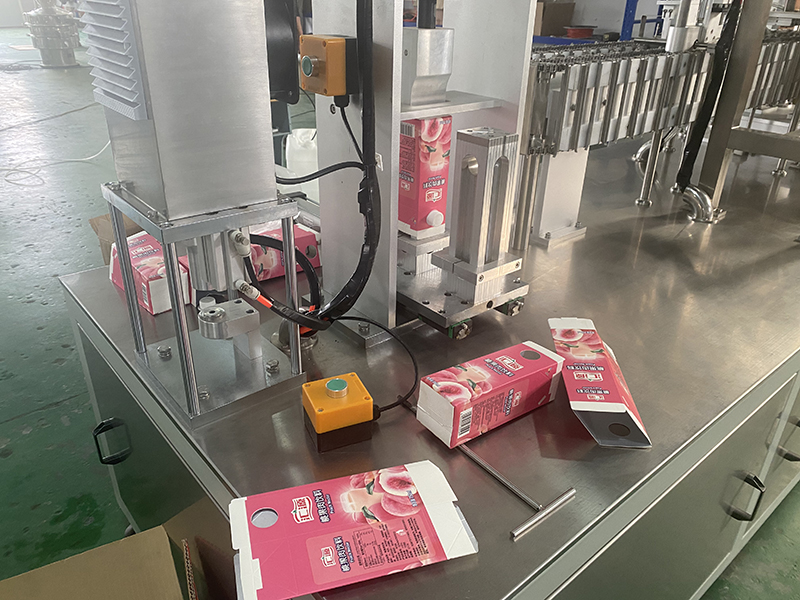

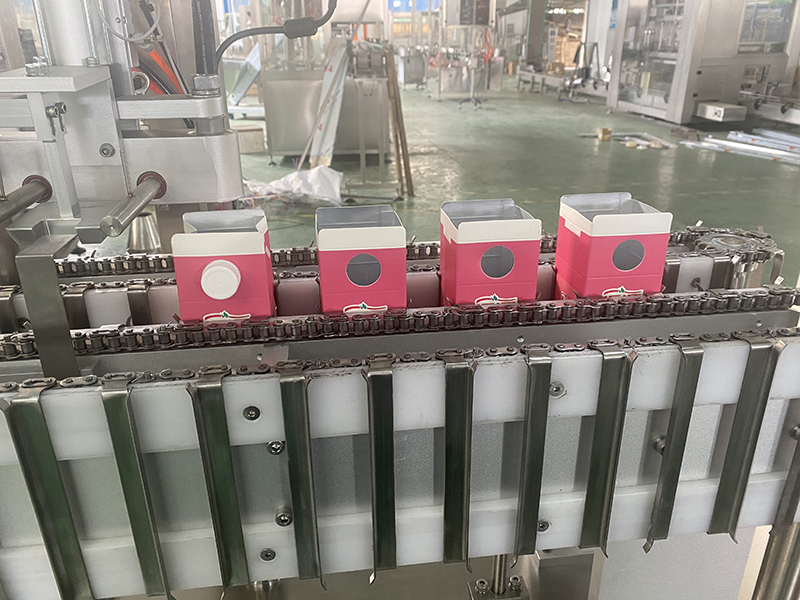

This machine can fill 250-2000ml brick paper aluminum composite box. Widely suitable for food, medicine, chemical industry, such as milk powder, flour powder, corn powder, starch powder, chemical powder, cosmetic powder, medical powder, instant powder, coffee powder, bean powder, tea powder, food additive. This machine adopts paper aluminum composite material, automatic batch-type working. Flow as below: workman put box - automatic folding forming - automatic filling - automatic sealing - automatic bevel hot sealing - automatic falling box.

Equipment introduction:

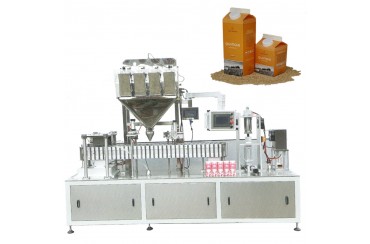

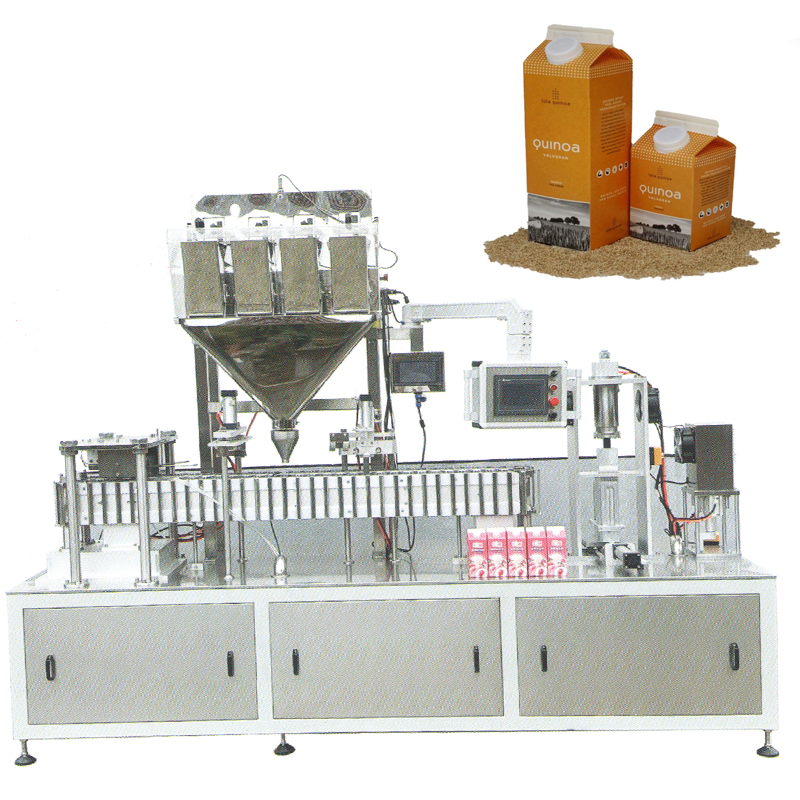

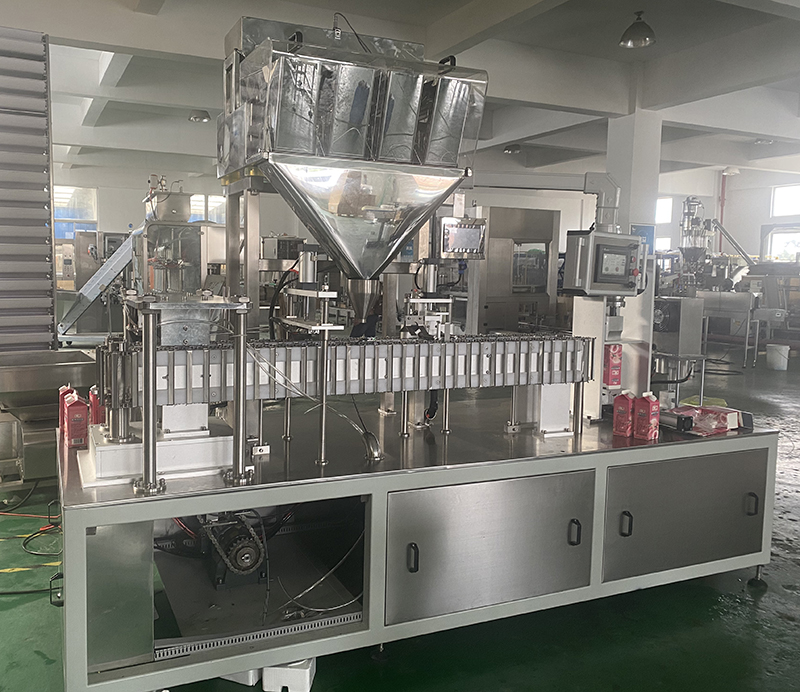

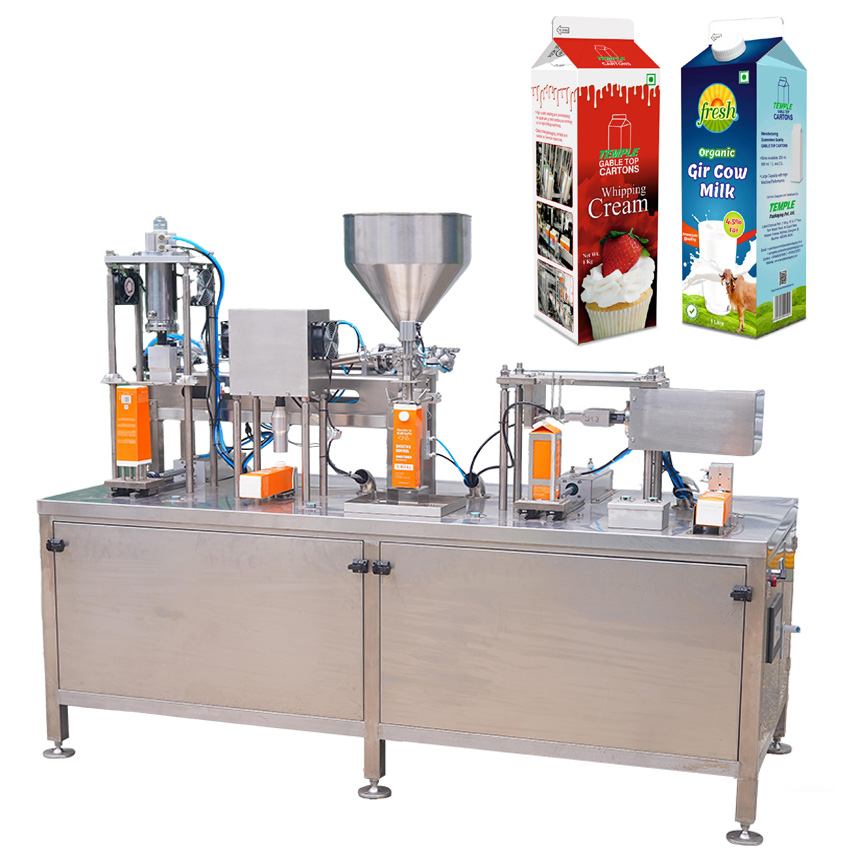

The semi carton auto filling sealing machine, an automatic weighing machine and an optional automatic feeding machine, which integrates automatic loading, automatic weighing, ,Automatic filling, automatic sealing, automatic date printing.

Feature：

Stainless Steel Construction

Auto Positioning Belts

PLC Controls

Color Touch Screen Display

Easy to operate and clean

Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable

PLC human control, Human - Machine Interface with English and Chinese display. Intuitive operation and  Low Fault rate. The forming system we choose our own patent rectangular forming method instead of roundness system.  this system made the running much more stable, the function much more reliable, the exterior appearance.

Technical Parameters:

Filling Capacity:              250ml-2000ml

Error Filling Capacity:      ±0.5%

Air Pressure:                   0.6-0.8Mpa

Air Consumption:           80L/min

Production Speed:          800-1200Box/Hour

Power:                            6.0KW 380V 50Hz

Size:                               3500mm*1300mm*2600mm

Weight:                           1000kgs
