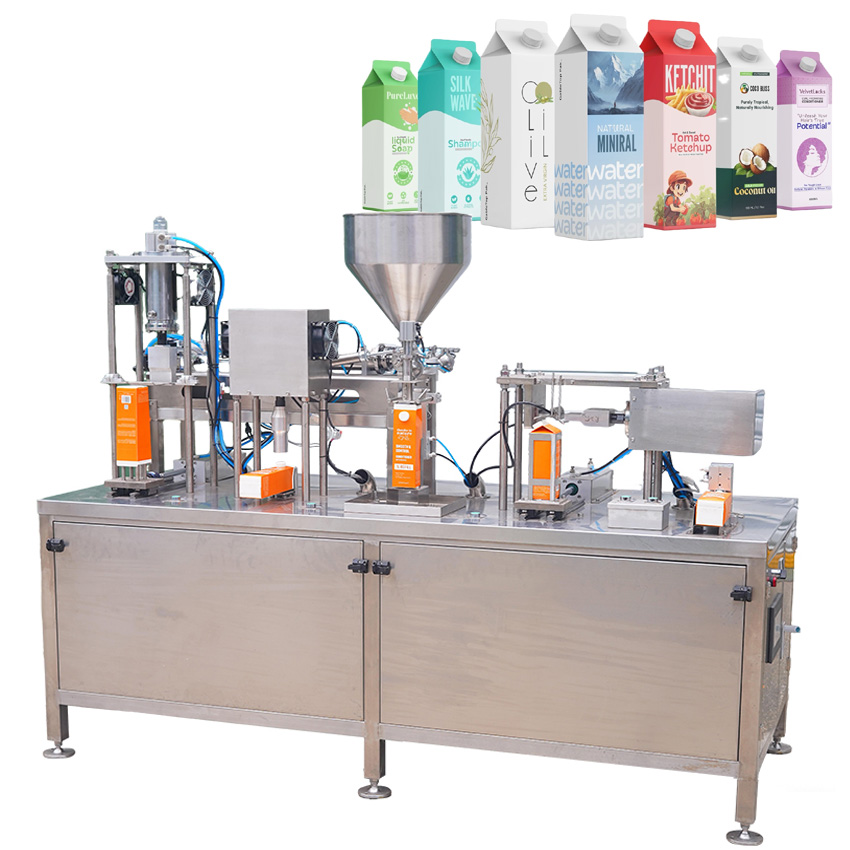

Manual Gable Top Carton Dairy Filling Machine

Scope of application:

This machine is suitable for filling water, juice, milk and so on.

Working Condition:

1) Capacity: 500 packs/h

2) Sealing: By high frequency

3) Power: 7KW

4) Weight: 400KG

5) Packaging material: roof cardboard box or roof aluminium foil carton With caps.

6) Shape size: 1.8*1.0*1.6 M

7) Compressed air: flow rate: 0.8-1.0M3/min Pressure: 1.0-1.4 Mpa No oil, no dust

8) Filling Type: Atmospheric pressure filling

9) Filling temperature: 2-50° 80-88°

10) Filling error: ±2.5ml

12) Power: 380V 50HZ

13) Air: 85psi/7bar, 2.5scfm/65lpm

14) Installation request: Cement, floor tiles and plastic floors can be used, not need the corners.

Design process flow:

Roof carton → Manual upper box → Bottom Heating and Pressing Forming → Open carton → Covering by Ultrasound Welding → Open Covered Carton → Manual box placement on track → filling → Top Seal Composite Type → Print Date → Enter conveyor chain and pack

The main filling process of the control system, the whole machine is controlled by PLC, more about two workers are required to complete the whole work process.
