Introduction:

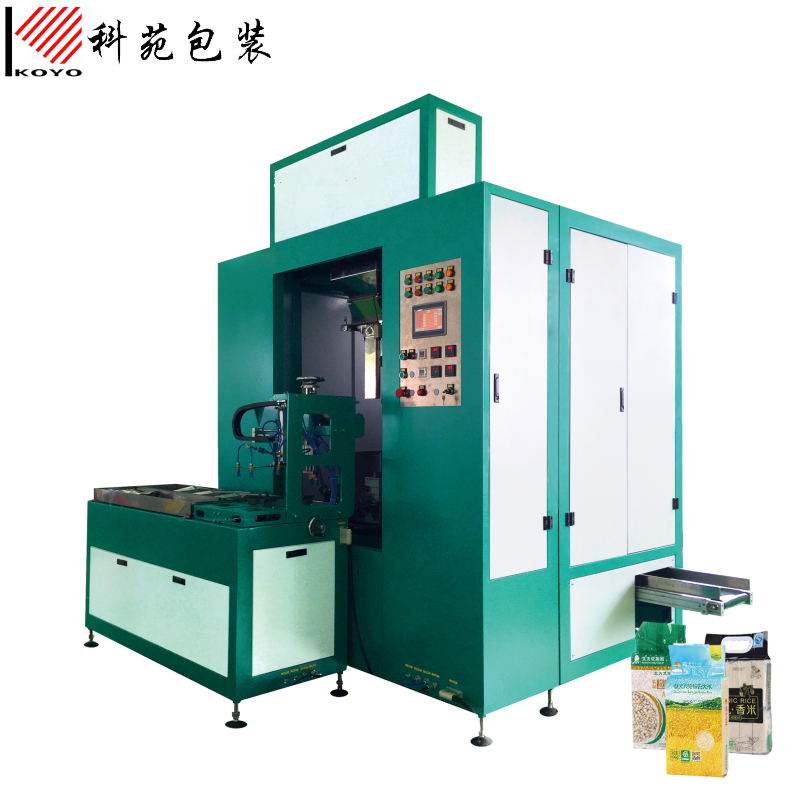

This machine consists of one set linear weigher for weighing and filling, one set bag given type vacuum packaging machine, one set take-off conveyor,it own functions of automatic weighing, filling, bag giving, vacuuming ,sealing and taking off. It is suitable for granules,such as: rice,miscellaneous grains,beans,cashew nuts,etc.
Application:
Advantages:
|
1. Equipped with automatic bagging manipulator to realize automatic vacuum shaping packaging, weighing, bagging, six-sided |
|
2. The whole process of shaping, vacuuming, heat sealing, unloading, and finished product conveying is controlled automatically. |
|
3.Double-station bagging, double-station vacuum shaping design, rotating and vertical delivery mechanism, vacuum packaging working speed is fast. |
|
4. The wide-capacity shaping mechanism is suitable for thick and thin shape packaging, with good shaping effect and large packaging range. |
|
5.It adopts high-precision alloy steel sensor, pneumatic and vibration feeding mechanism, fast weighing speed and high packaging accuracy. |
|
6.Using Chinese display touch screen, Siemens programmable controller, touch screen intelligent weighing module. |
Technical parameter:
|
Model |
KYG2-5K |
|
Packing range |
0.25~5kg |
|
Packing speed |
700-800 bags/hour |
|
Packaging error |
2~5g |
|
Power consumption |
AC380V 50HZ 2.5KW |
|
Gas source requirements |
0.6Mpa 4m3/h |
|
Appearance size |
length 2440*width 2445*height 2908 (mm) |
|
Vacuum degree (MPa) |
-0.07-0 (adjustable) |
