Auto granule pillow bag vacuum packing machine

ASK FOR A QUOTE

Please enter your demands, our sales staff will offer you in 6 hours.

Clicks:
  • Product Description
  • Video
  • Introduction:

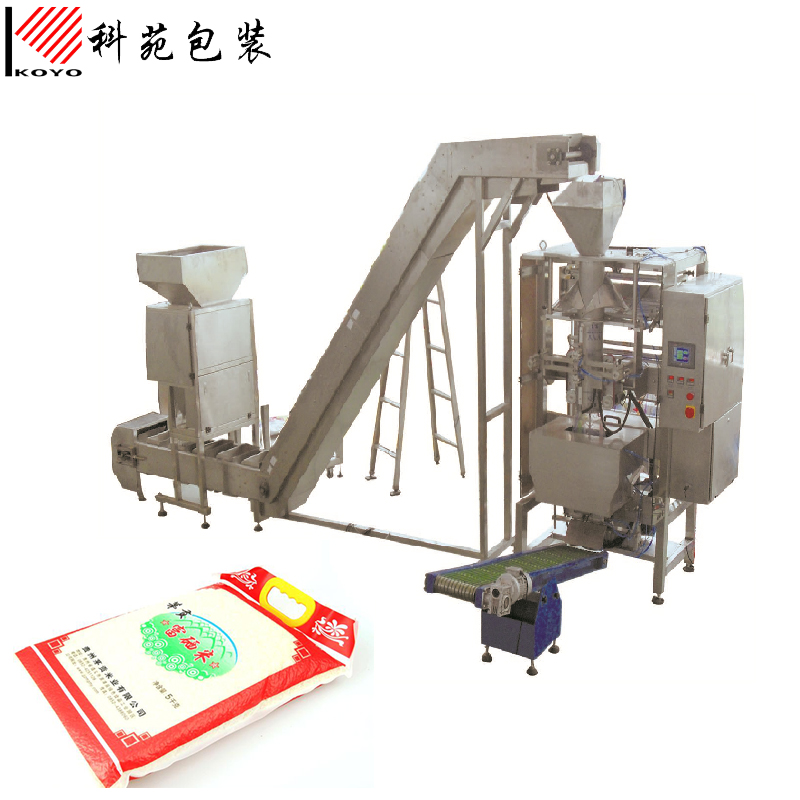

    This packing unit consists of one vertical vacuum packing machine for vacuuming and bagging ,one set linear weigher for weighing , one vertical bucket elevator for feeding ,one platform for supporting weigher and one conveyor for taking off the finished bags .It integrates functions of automatic bag-making, weighing, filling,vacuuming, sealing, printing, cutting . The advanced design has guaranteed this machine suits for different kinds of granules,like rice,beans,seeds,corns and other kind of solid granules. Its adjustment , operation and maintenance are very convenient.



    Application:



     Advantages:



    Linear weigher

    2/4/6 weighing heads can be choose according to client’s capacity,auto weighing and filling.made by Stainless steel



    With independent colorful touch screen for setting parameters

    Each pair of weighing head consists of one fast supplier& one fine supplier to keep accuracy &speed

    Controlled by weighing module

    Pillow bag vacuum packing machine

    This machine own functions of bag-making,vacuuming ,sealing,date printing,cutting,etc.



    Adopts Siemens PLC & Touch ScreenPANASONIC servo motor, Japanese Photo Sensor, Korean Air valve,Schneider electrical components,Zhongde vacuum pump,etc.

    Can be used for making pillow type vacuum bag

    Can be installed with ribbon printer, thermal transfer coding machine,label sticking machine for printing dates,letters,QR code,bar code and sticking labels on bag.

    Automatically form and make a bag by using roll film

    With independent touch screen for seting parameters



    Technical parameters:



    Packing machine

    Weighing

    machine

    Bag type/

    Bag Material

    Max Roll Film width

    Bag size:(mm)

    Max speed

    BPM

    KYV320

    CJF200

    Pillow type vacuum bag

    320mm

    W(60-150)*L(80-180)

    30BPM

    KYV420D

    CJF2000

    420mm

    W(80-200)*L(80-280)

    25BPM

    KYV540B

    CJF2000

    540mm

    W(120-260)*L(80-340)

    20BPM

    KYV730B

    /CJF5000

    730mm

    W(150-350)*L(120-460)

    15BPM

    KYV780B

    CJF5000

    780mm

    W(150-375)*L(120-460)

    10BPM

    KYV1100

    CJF5000/S15/S25

    1100mm

    W(300-535)*L(300-650)

    8BPM

    KYV1500

    S15/S25/S50

    1500mm

    W(350-725)*L(300-900)

    6BPM
