Introduction:

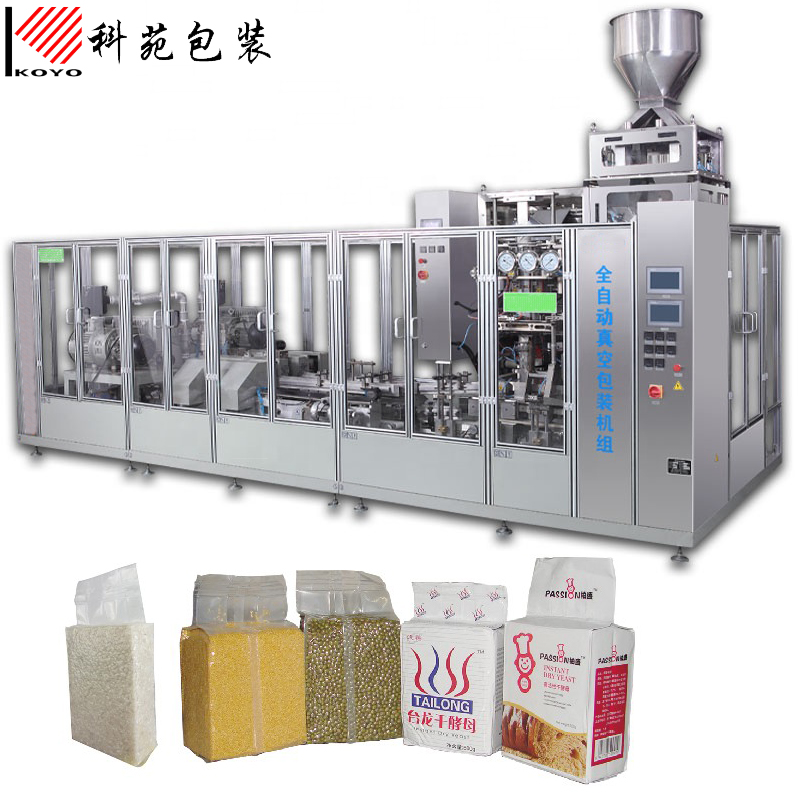

This machine including one set automatic vertical bag making packing and sealing machine .one set linear weigher ,One set vacuum packing machine , one set output conveyor .This machine are widely use for packing food pharmacy chemical and other granules, Like coffee beans,yeast powder and so on .The whole machine adopting inside pumping to vacuum product .The vacuum degree is very high and packing speed is very high ,the finished product is very nice and have a long shelf life.
Application:
Advantages:
|
Linear weigher |
2/4/6 weighing heads can be choose according to client’s capacity,auto weighing and filling.made by Stainless steel
|
|
With independent colorful touch screen for setting parameters |
|
|
Each pair of weighing head consists of one fast supplier& one fine supplier to keep accuracy &speed |
|
|
Controlled by weighing module |
|
|
Vertical packing machine |
This machine own functions of bag-making,filling ,sealing,date printing,cutting,etc.
|
|
Adopts Siemens PLC & Touch Screen，PANASONIC servo motor, Japanese Photo Sensor, Korean Air valve,Schneider electrical components. |
|
|
The finished bag with four corners folding and bag top without sealing |
|
|
Automatically form and make a bag by using roll film |
|
|
With independent touch screen for seting parameters |
|
|
Vacuum machine |
Auto Vibrate, Form, Vacuum & Reseal Brick Bag |
|
Stable working with SIEMENS PLC, Panasonic Servo Drive, |
|
|
Can be equipped with one or two vacuum chambers according to customer’s capacity |
|
|
China brand pump or Germany brand pump can be for choose |
Technical parameters:
|
Model |
KYV3K |
KYV10K |
KYV20K |
KYV500N |
KYV500N2 |
|
Products |
Granules |
||||
|
Roll material |
Laminated film |
|
|||
|
Bag type |
Vacuum brick bag |
|
|||
|
Packaging weight |
500g~3kg |
3~10kg |
10~20kg |
70g~1kg |
70g~1kg |
|
Vacuum chamber |
1~2bags into 1 chamber/time |
1bag into 1 chamber/ time |
1bag into 1 chamber/time |
6~8bags into 1 chamber/time |
6~8bags into 1 chamber/time, total 2 chambers work in turn |
|
Packing speed |
6~8bpm |
6~8bpm |
3~6bpm |
18~20bpm |
38~40bpm |
|
Bag dimension |
According to clients |
||||
