Powder box type bag packing machine

ASK FOR A QUOTE

Please enter your demands, our sales staff will offer you in 6 hours.

Clicks:
  • Product Description
  • Video
  • Introduction:

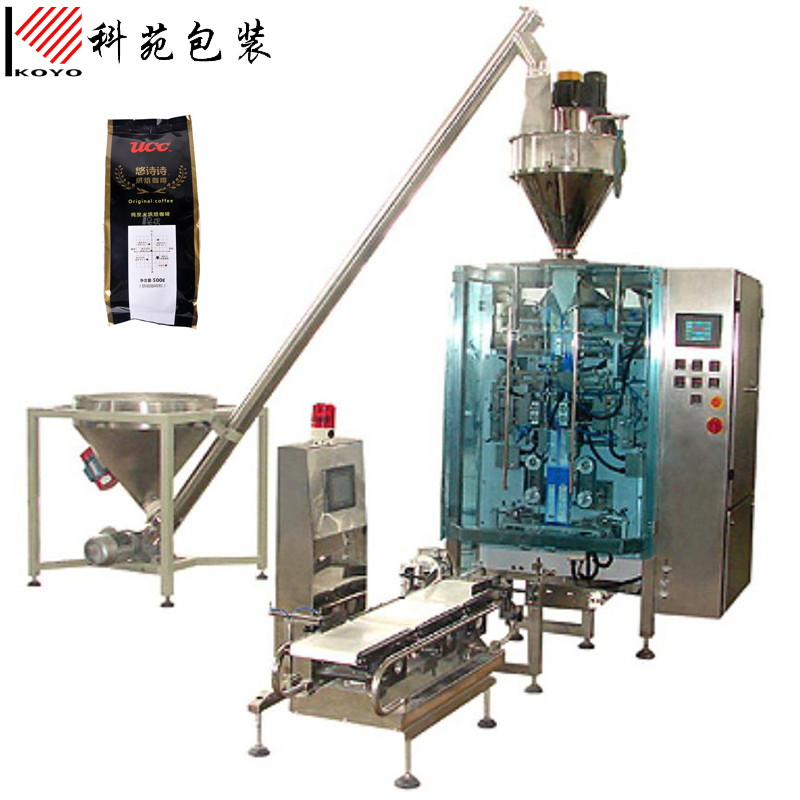

    This box-type bag packaging machine is a latest machine developed by our company, four corners are added on the packaging bag based on vertical bag, making the packaging bag have a stronger spatial vision, nicer appearance and more attraction. This packaging unit consists of one set box type bag packing machine, one set auger filler ,one set screw elevator, one set take-off conveyor, suitable for weighing packing powder ,such as coffee powder,milk powder,flour,etc.



    Application:


    Sample bags:


    Advantages:



    Auger filler

    Servo motor control auger filling

    With full colour Touch Screen for better operating of the machine

    Can be detached for easy clean

    Simple and compact in design

    All stainless steel product contact parts. Non-contact parts are stainless steel and aluminum.

    Box type bag packing machine

    This machine own functions of bag-making ,bag sealing,date printing,cutting,etc.



    This machine own an independent bag edges folding &sealing,used for making box type bag, quad bag.

    Adopts Siemens PLC & Touch ScreenPANASONIC servo motor, Japanese Photo Sensor, Korean Air valve,Schneider electrical components,etc.

    Can be installed with ribbon printer, thermal transfer coding machine,label sticking machine for printing dates,letters,QR code,bar code and sticking labels on bag.

    Automatically form and make a bag by using roll film



    Technical parameters:

    Model

    Weigher/Dosing system

    Bag type/

    Bag Material

    Roll Film width

    Bag size:(mm)

    Speed

    KYH540

    Auger filler

    Quad bag/box type bag/

    Laminated roll film

    Max 540mm

    Front width: 50-190; Side width: 35-90;

    Edges seal:5-8; bag length:120-340;

    Max 35BPM

    KYH730

    Auger filler

    Max 730mm

    Front width: 60-260; Side width: 45-120;

    Edges seal:5-8; bag length:120-460;

    Max 20BPM
