Introduction:

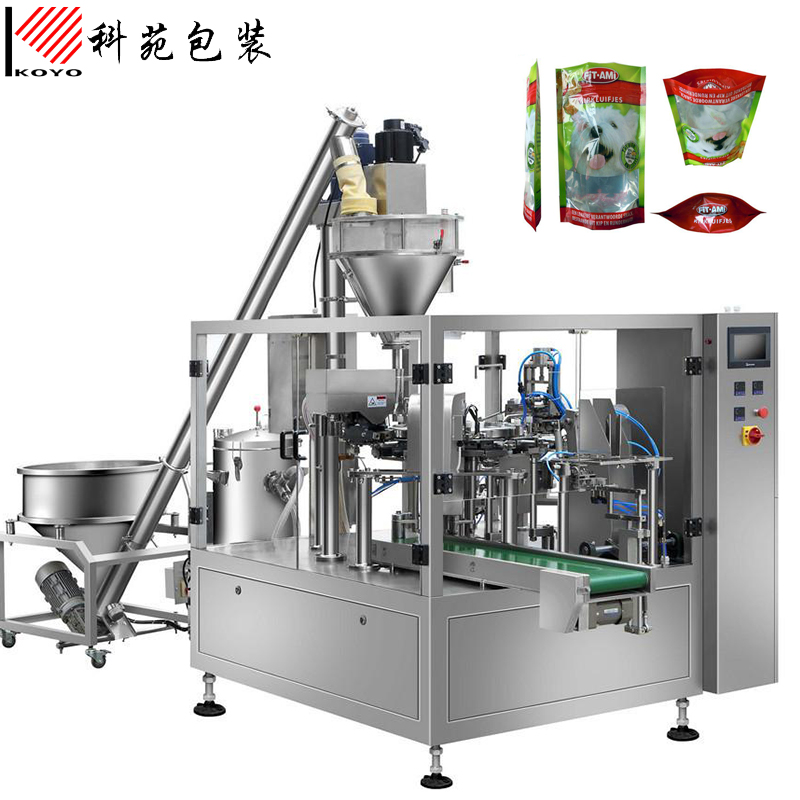

This packing unit consists of one premade bag packing machine for packing ,one set auger filler for weighing , one screw elevator for feeding ,one platform for supporting weigher and one conveyor for taking off the finished bags .It integrates functions of automatic bag-feeding,bag-opening, weighing, filling, sealing, cooling into one. The advanced design has guaranteed this machine suits for different kinds of granules,like salt,rice and seeds. Its adjustment , operation and maintenance are very convenient.
Application:
Sample bags:
Advantages:
|
Auger filler |
Servo motor control auger filling |
|
With full colour Touch Screen for better operating of the machine |
|
|
Can be detached for easy clean |
|
|
Simple and compact in design |
|
|
Premade bag packing machine |
This machine own functions of bag-feeding, bag-opening,sealing,date printing,cooling,etc.
|
|
Easy to operateļ¼adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly |
|
|
Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production |
|
|
Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials. |
|
|
Safety device: Machine stop at abnormal air pressure, heater disconnection alarm |
|
|
With independent touch screen for seting parameters |
|
|
Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags. |
|
|
The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time. |
|
|
Use no oil vacuum pump, avoid polluting the environment in the production. |
|
|
The opening zipper framework is special in the feature of zipper bag,it can avoid distortion or destroy when open the zipper |
|
|
Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food |
Technical parameters:
|
Model |
Weigher/Filler/Dosing system |
Working station |
Bag type |
Bag size:(mm) |
Packaging speed |
|
KYG6-200 |
Auger filler |
6 |
Pillow bag, 4 side/ 3 side seal bag, |
W(80-200)*L(100-300) |
Max 40BPM |
|
KYG6-260 |
6 |
W(130-260)*L(100-300) |
Max 30BPM |
||
|
KYG6-300 |
6 |
W(180-300)*L(200-500) |
Max 20BPM |
||
|
KYG8-200 |
8 |
Pillow bag, 4 side/ 3 side seal bag, Stand up bag with Zipper,doy bag |
W(80-200)*L(100-300) |
Max 40BPM |
|
|
KYG8-260 |
8 |
W(130-260)*L(100-300) |
Max 30BPM |
||
|
KYG8-300 |
8 |
W(180-300)*L(200-500) |
Max 20BPM |
