Introduction:

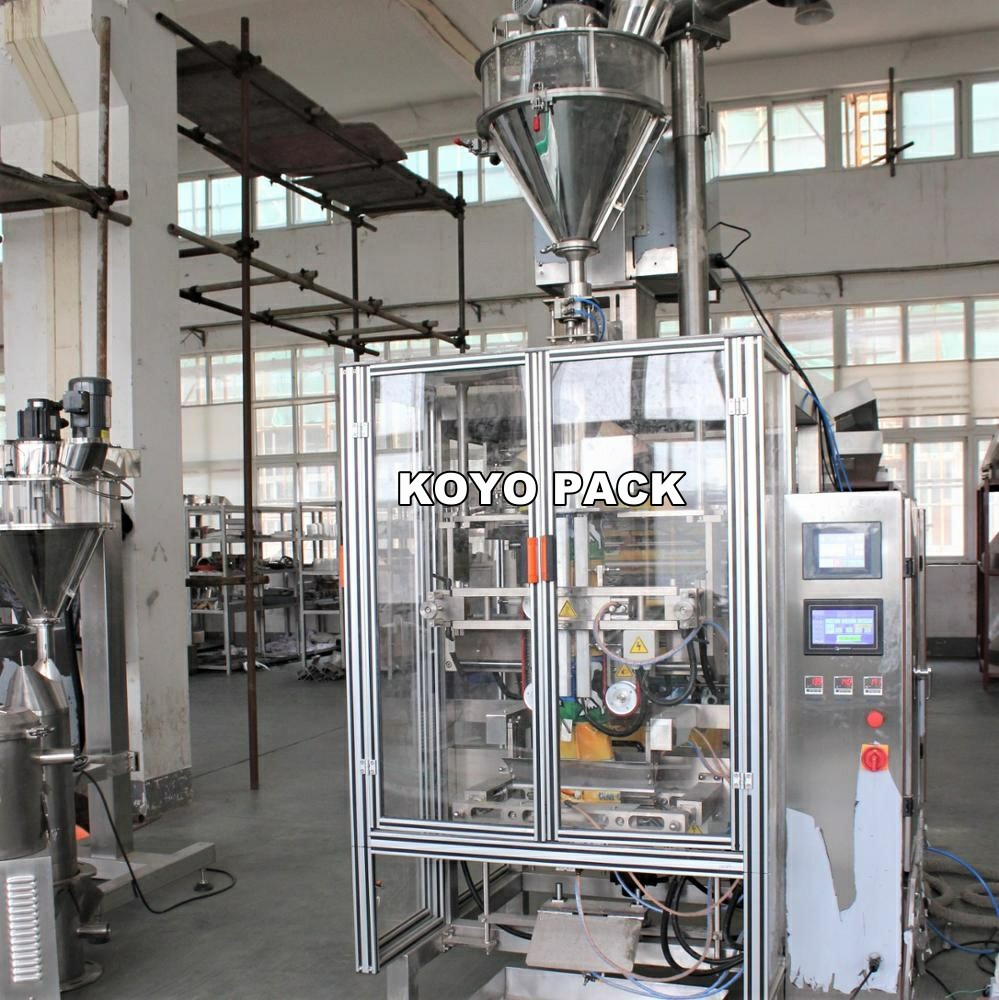

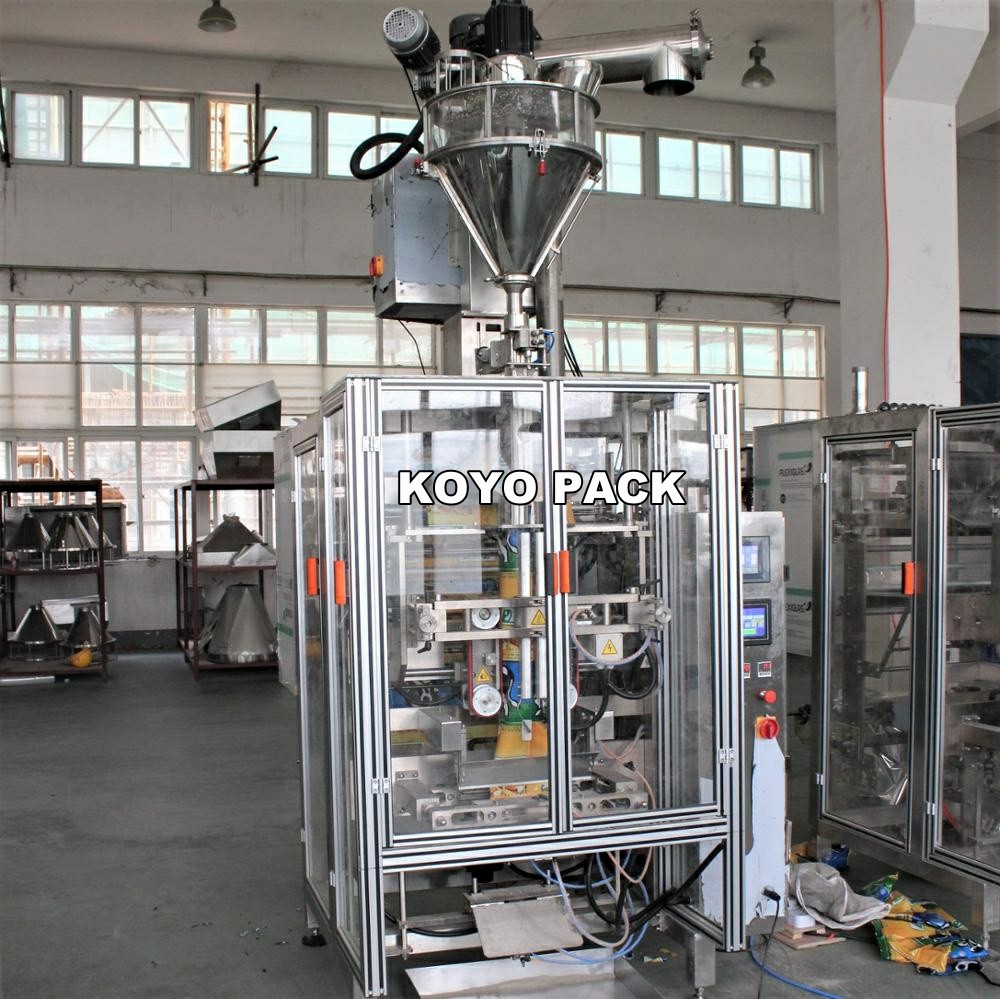

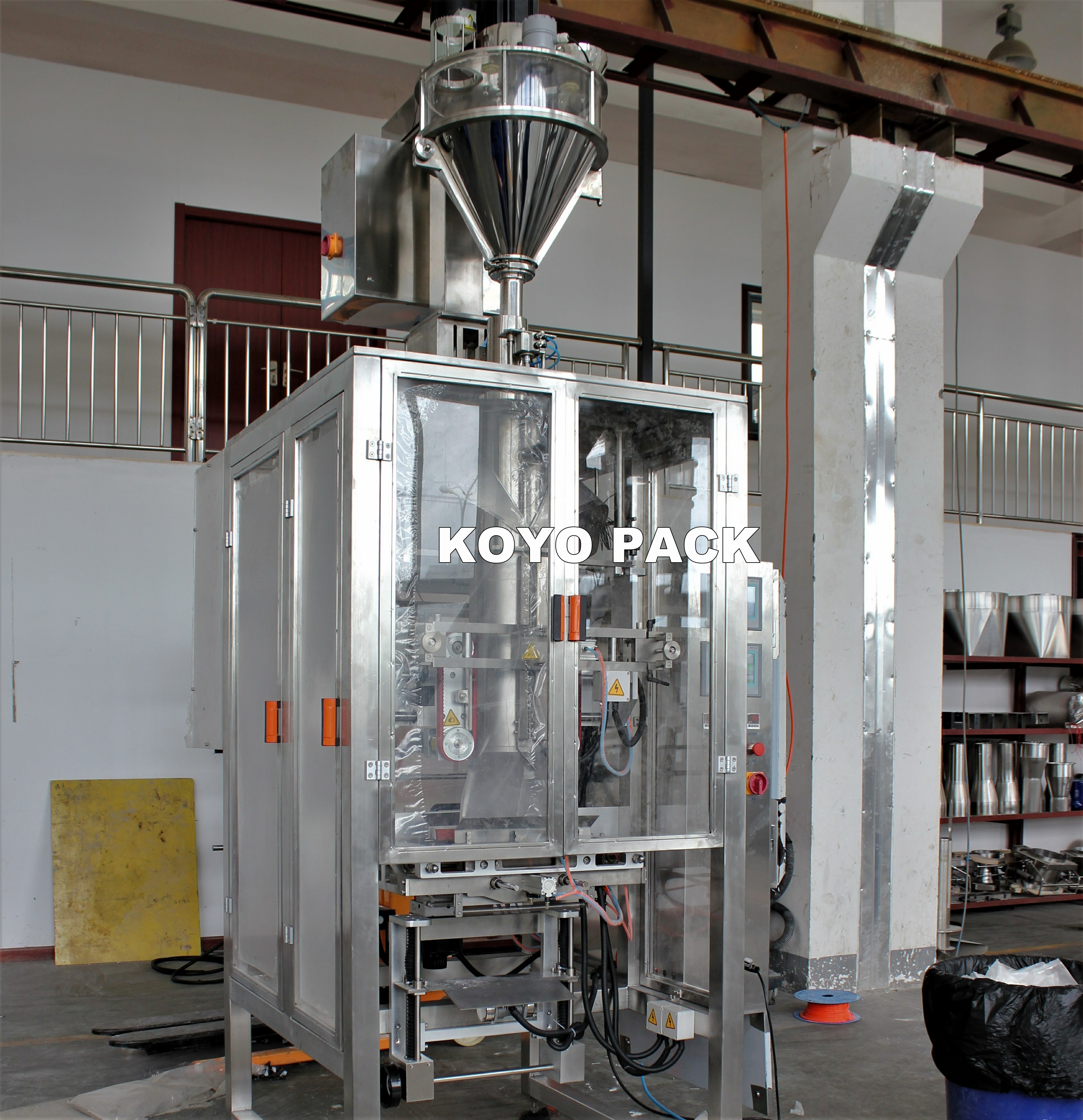

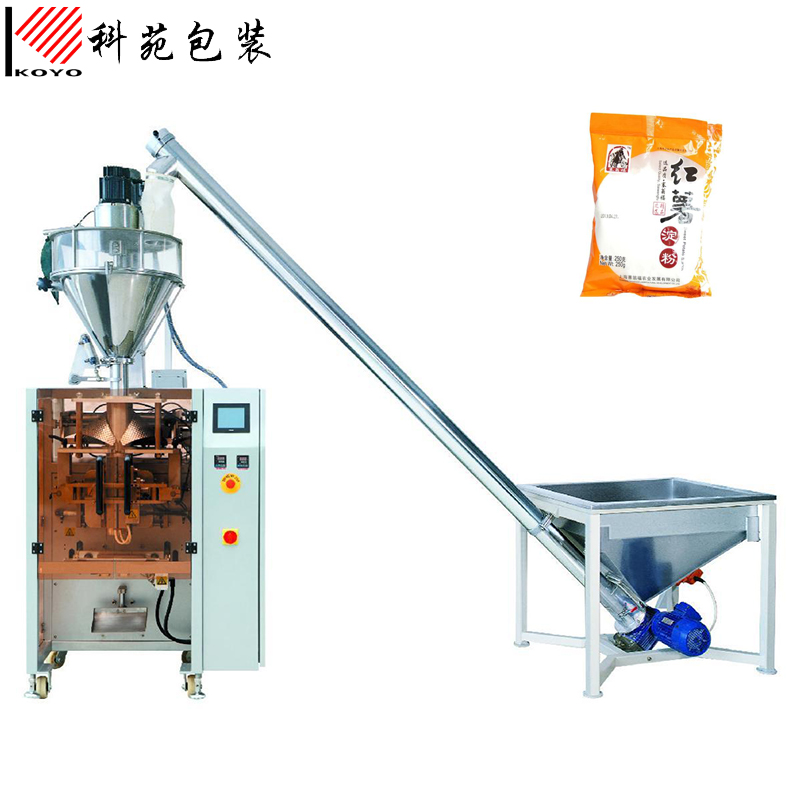

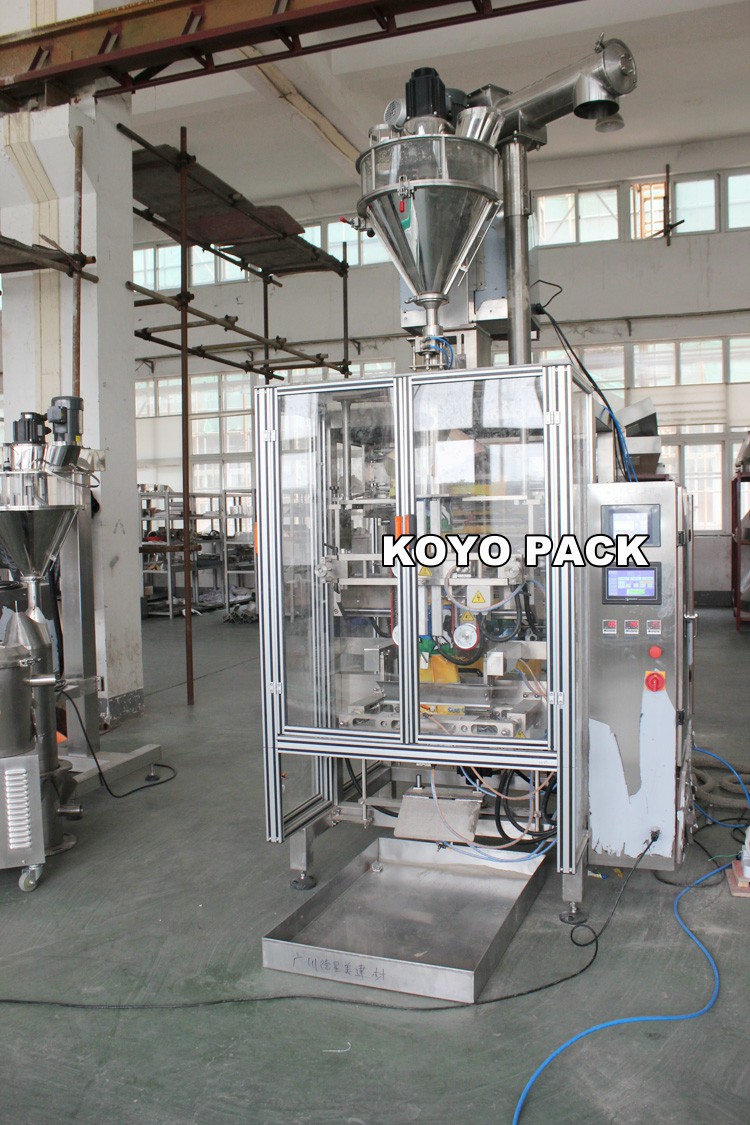

This packing unit consists of one vertical packing machine for bagging ,one set auger filler for weighing , one vertical bucket elevator for feeding , one conveyor for taking off the finished bags .It integrates functions of automatic bag-making, weighing, filling, sealing, printing, punching, cutting and sealing into one. The advanced design has guaranteed this machine suits for different kinds of powder,like coffee powder,flour, milk powder,seasoning powder,etc. Its adjustment , operation and maintenance are very convenient.
Application:

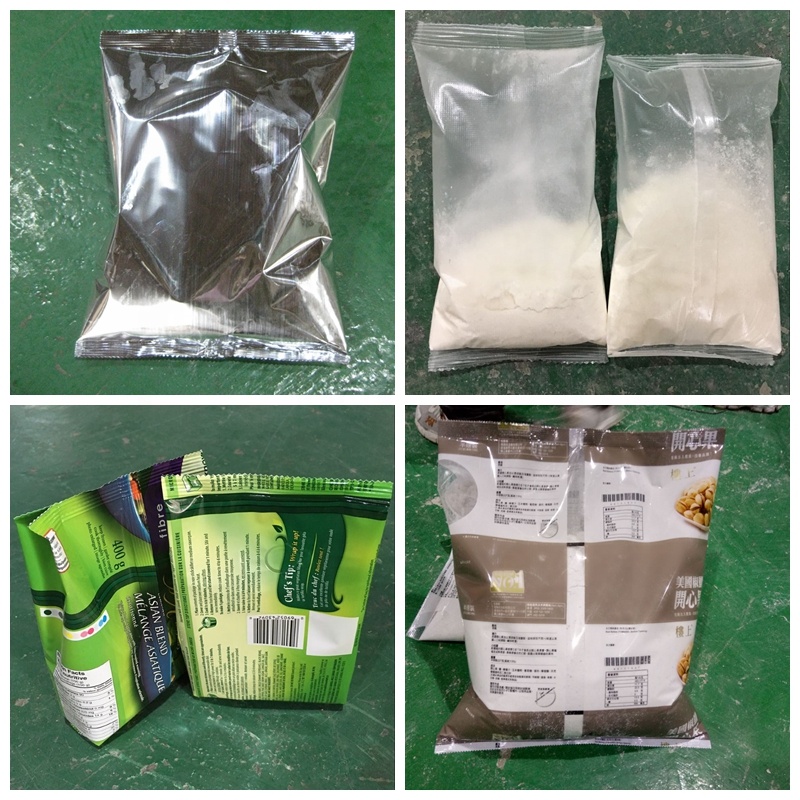

Sample bags:
Advantages:
|
Auger filler |
Servo motor control auger filling |
|
With full colour Touch Screen for better operating of the machine |
|
|
Can be detached for easy clean |
|
|
Simple and compact in design |
|
|
All stainless steel product contact parts. Non-contact parts are stainless steel and aluminum. |
|
|
Vertical packing machine |
This machine own functions of bag-making,sealing,date printing,cutting,etc.
|
|
Adopts Siemens PLC & Touch Screen，PANASONIC servo motor, Japanese Photo Sensor, Korean Air valve,Schneider electrical components,etc. |
|
|
Can be used for making pillow bag,gusset bag,hole-punching bag, box type bag,etc. |
|
|
Can be installed with ribbon printer, thermal transfer coding machine,label sticking machine for printing dates,letters,QR code,bar code and sticking labels on bag. |
|
|
Automatically form and make a bag by using roll film |
|
|
With independent touch screen for seting parameters |
Technical parameters:
|
Model |
Filler/Dosing system |
Bag type/ Bag Material |
Roll Film width |
Bag size:(mm) |
Packaging speed |
|
KY320 |
CJSL200 |
Pillow bag/gusset bag; LDPE/ Laminated Roll film |
Max 320mm |
W(60-150)*L(80-180) |
Max 60BPM |
|
KY420D |
CJSL2000 |
Max 420mm |
W(80-200)*L(80-280) |
Max 50BPM |
|
|
KY540B |
CJSL2000 |
Max 540mm |
W(120-260)*L(80-340) |
Max 40BPM |
|
|
KY730B |
CJSL2000/CJSL5000 |
Max 730mm |
W(150-350)*L(120-460) |
Max 30BPM |
|
|
KY780B |
CJSL5000 |
Max 780mm |
W(150-375)*L(120-460) |
Max 20BPM |
|
|
KY1100 |
CJL25K |
Max 1100mm |
W(300-535)*L(300-650) |
Max 10BPM |
|
|
KY1500 |
CJL25K |
Max 1500mm |
W(350-725)*L(300-900) |
Max 8BPM |
