Introduction:

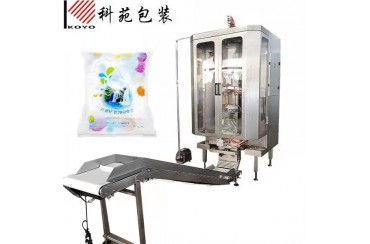

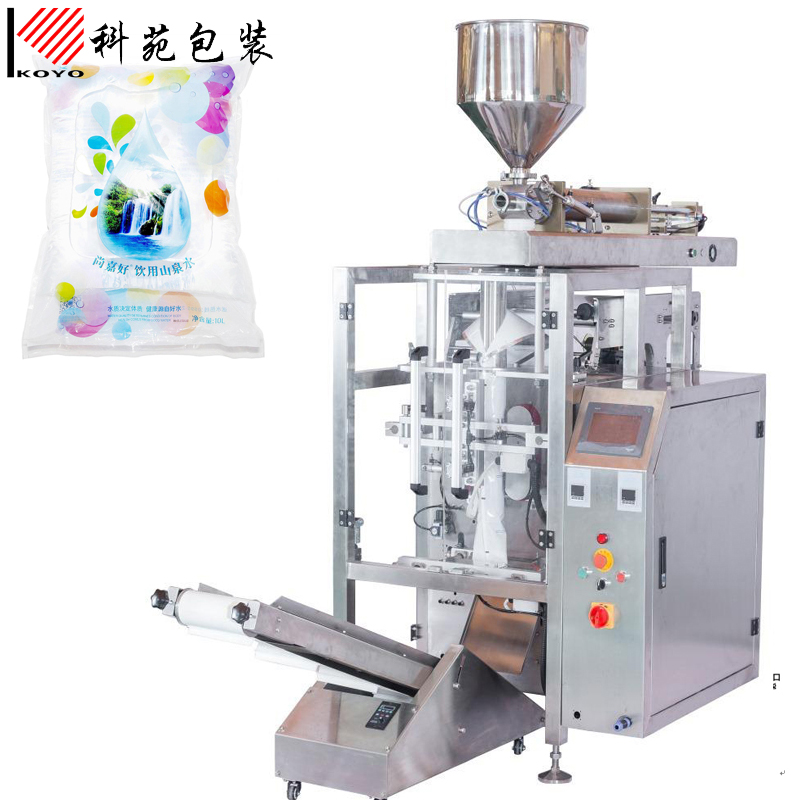

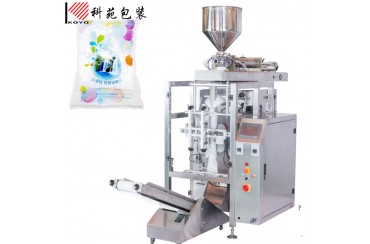

This packing unit consists of one vertical packing machine for bagging ,one set liquid pump for weighing , one liquid storage and pump feeding device and one conveyor for taking off the finished bags .It integrates functions of automatic bag-making, weighing, filling, sealing, printing, punching, cutting and sealing into one. The advanced design has guaranteed this machine suits for different kinds of liquid,such as: water,palm oil,milk,juice,chocolate paste,etc. Its adjustment , operation and maintenance are very convenient.
Application:

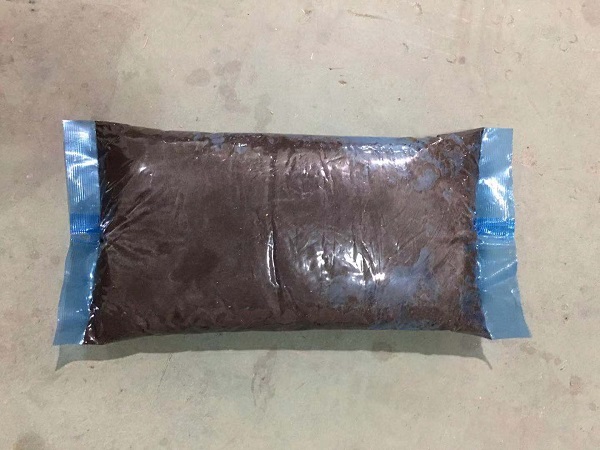

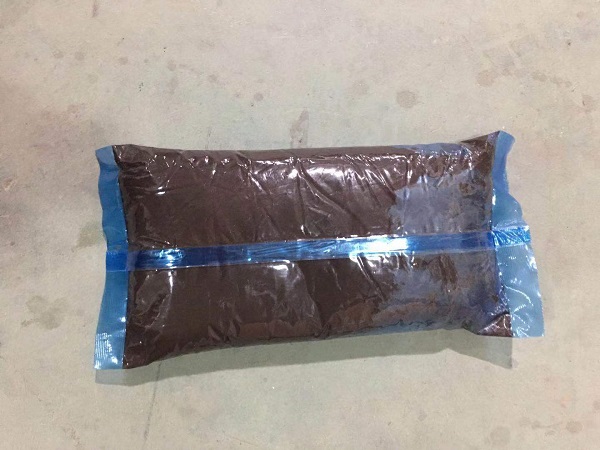

Sample bags:
Advantages:
|
Liquid pump |
Cylinder drives piston pump |
|
Products contact parts: 304 S.S |
|
|
With 50L Hopper for products storage. |
|
|
Filling Range: 1000-5000ml |
|
|
Weight Accuracy: +/- 0.5% |
|
|
With prevent oil dropping system |
|
|

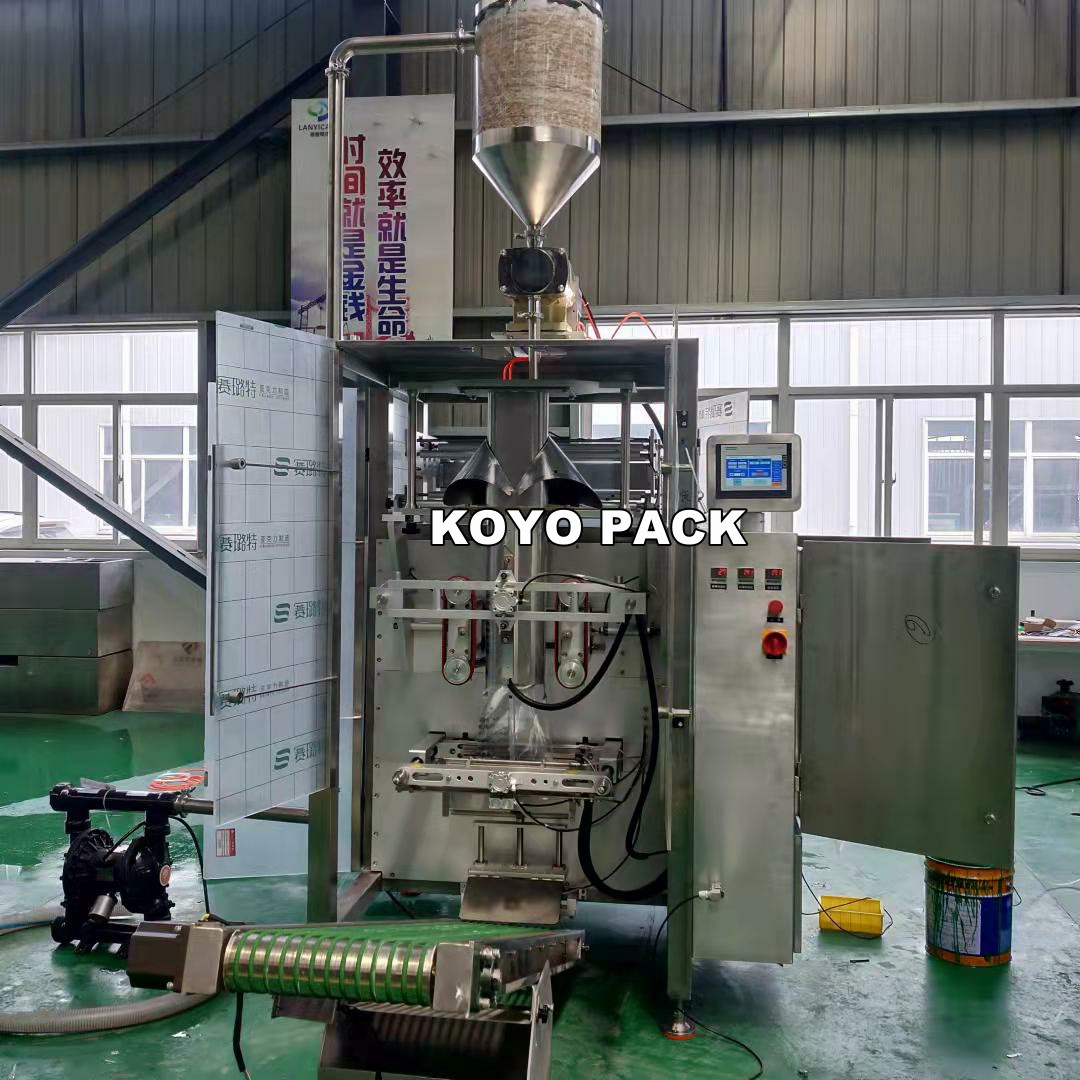

Vertical packing machine |
This machine own functions of bag-making,sealing,date printing,cutting,etc.
|
|

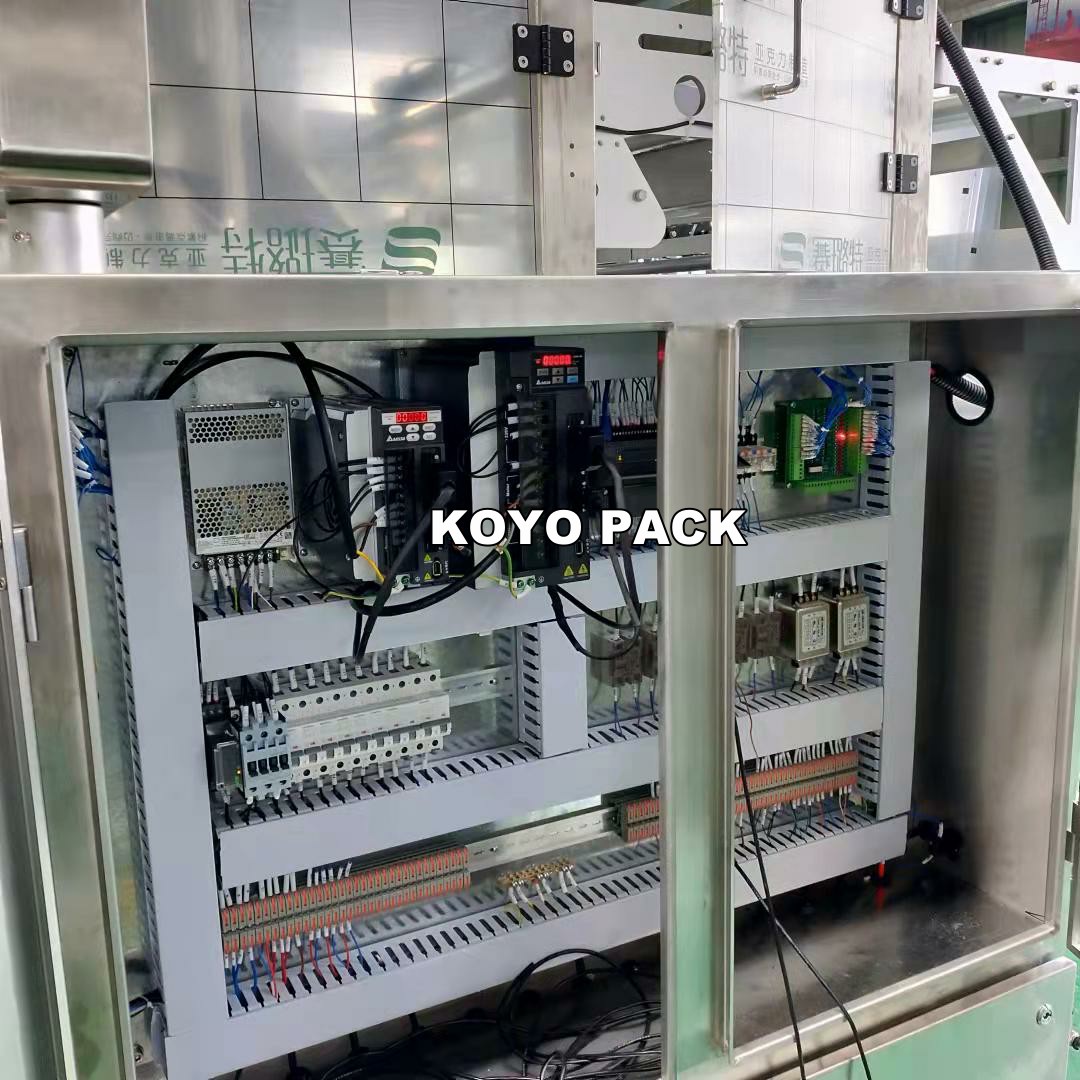

Adopts Siemens PLC & Touch Screen，PANASONIC servo motor, Japanese Photo Sensor, Korean Air valve,Schneider electrical components,etc. |
|
|
Can be used for making pillow bag,gusset bag,hole-punching bag, box type bag,etc. |
|
|
Can be installed with ribbon printer, thermal transfer coding machine,label sticking machine for printing dates,letters,QR code,bar code and sticking labels on bag. |
|
|

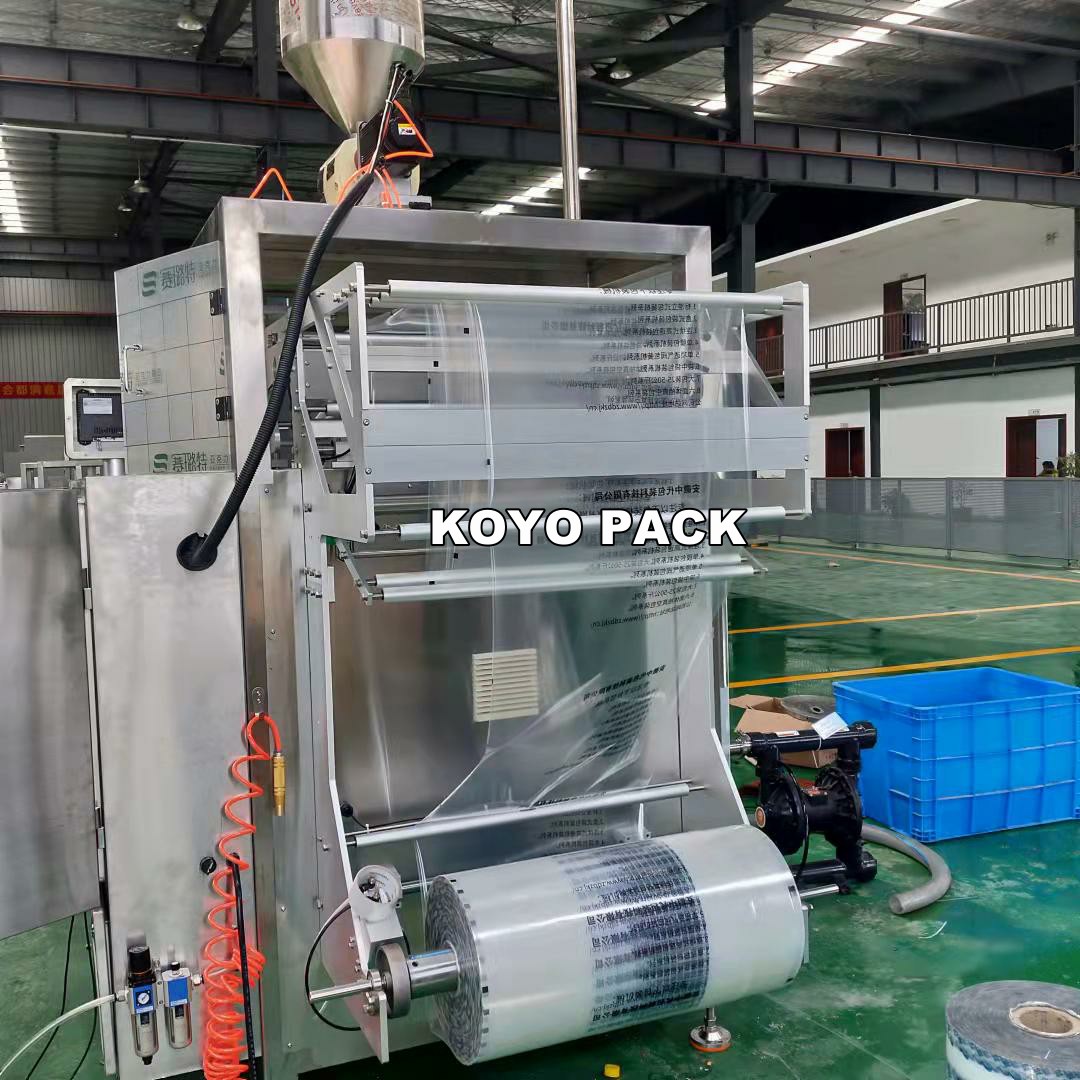

Automatically form and make a bag by using roll film |
|
|

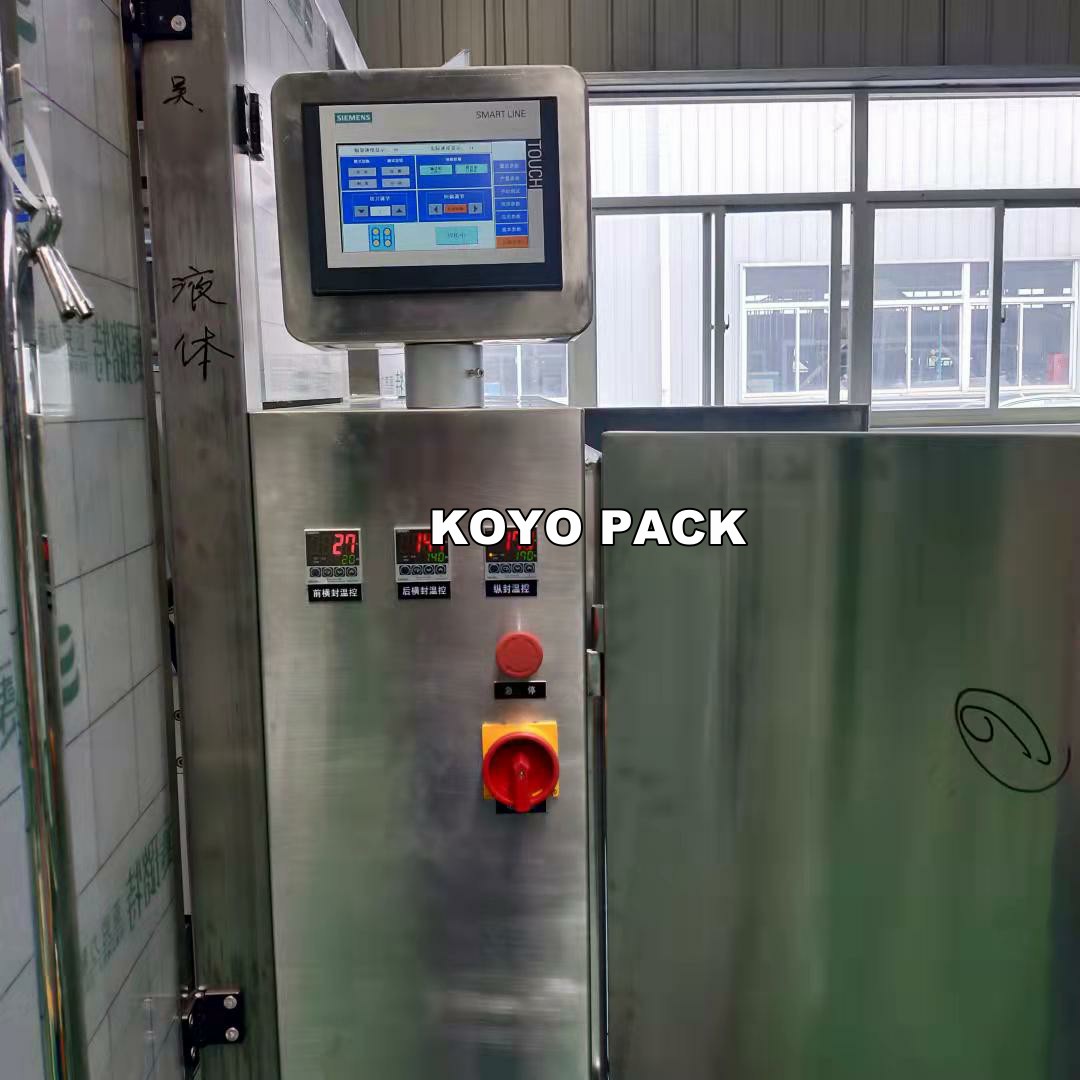

With independent touch screen for seting parameters |
Technical parameters:
|
Packing machine |
Weighing machine |
Bag type/ Bag Material |
Max Roll Film width |
Bag size:(mm) |
Max speed BPM |
|
KY320 |
Piston pump/rotor pump/servo pump |
Pillow bag,gusset bag;LDPE film/ Laminated film |
320mm |
W(60-150)*L(80-180) |
60BPM |
|
KY420D |
420mm |
W(80-200)*L(80-280) |
40BPM |
||
|
KY540B |
540mm |
W(120-260)*L(80-340) |
30BPM |
||
|
KY730B |
730mm |
W(150-350)*L(120-460) |
20BPM |
||
|
KY780B |
780mm |
W(150-375)*L(120-460) |
10BPM |
||
|
KY1100 |
1100mm |
W(300-535)*L(300-650) |
8BPM |
||
|
KY1500 |
1500mm |
W(350-725)*L(300-900) |
5BPM |

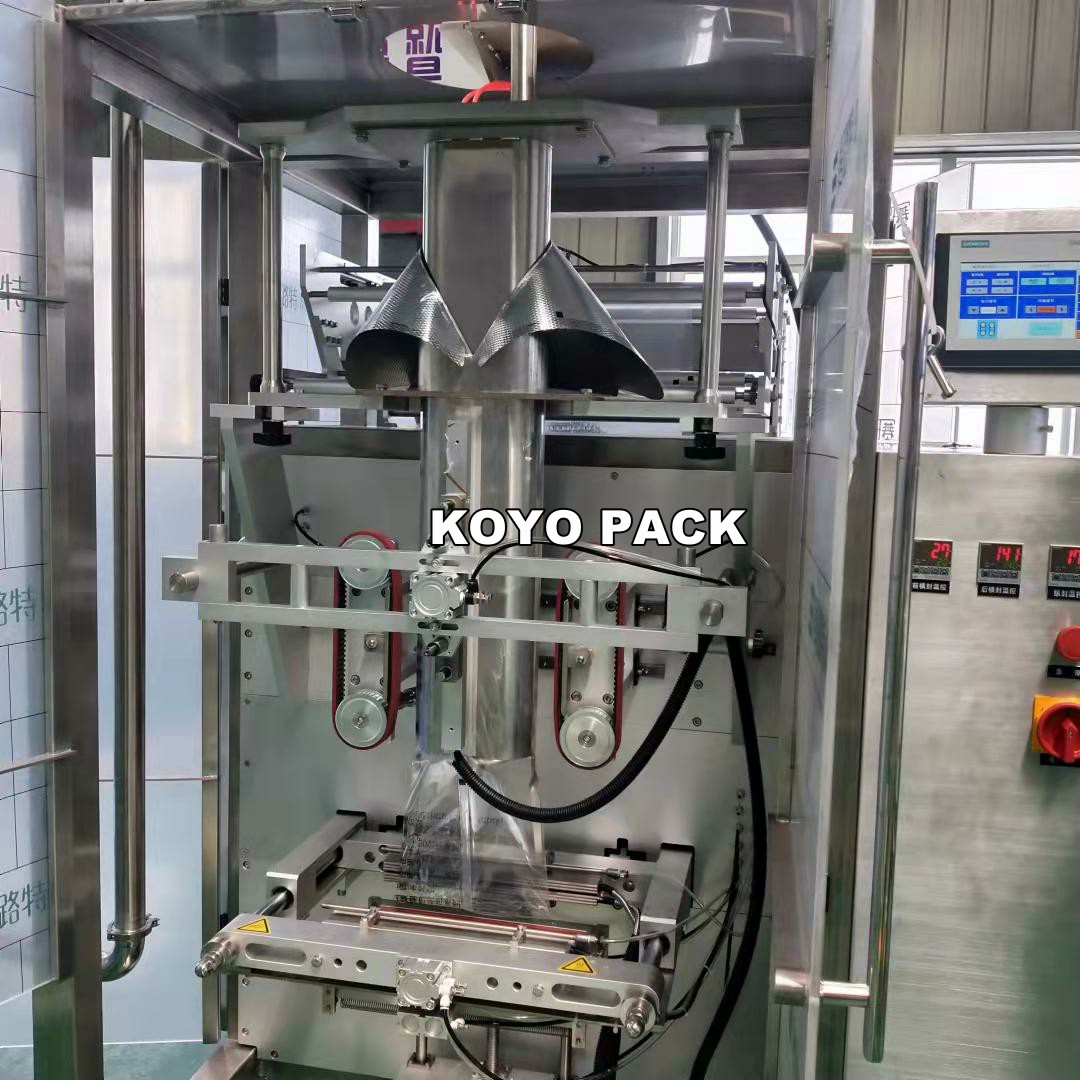

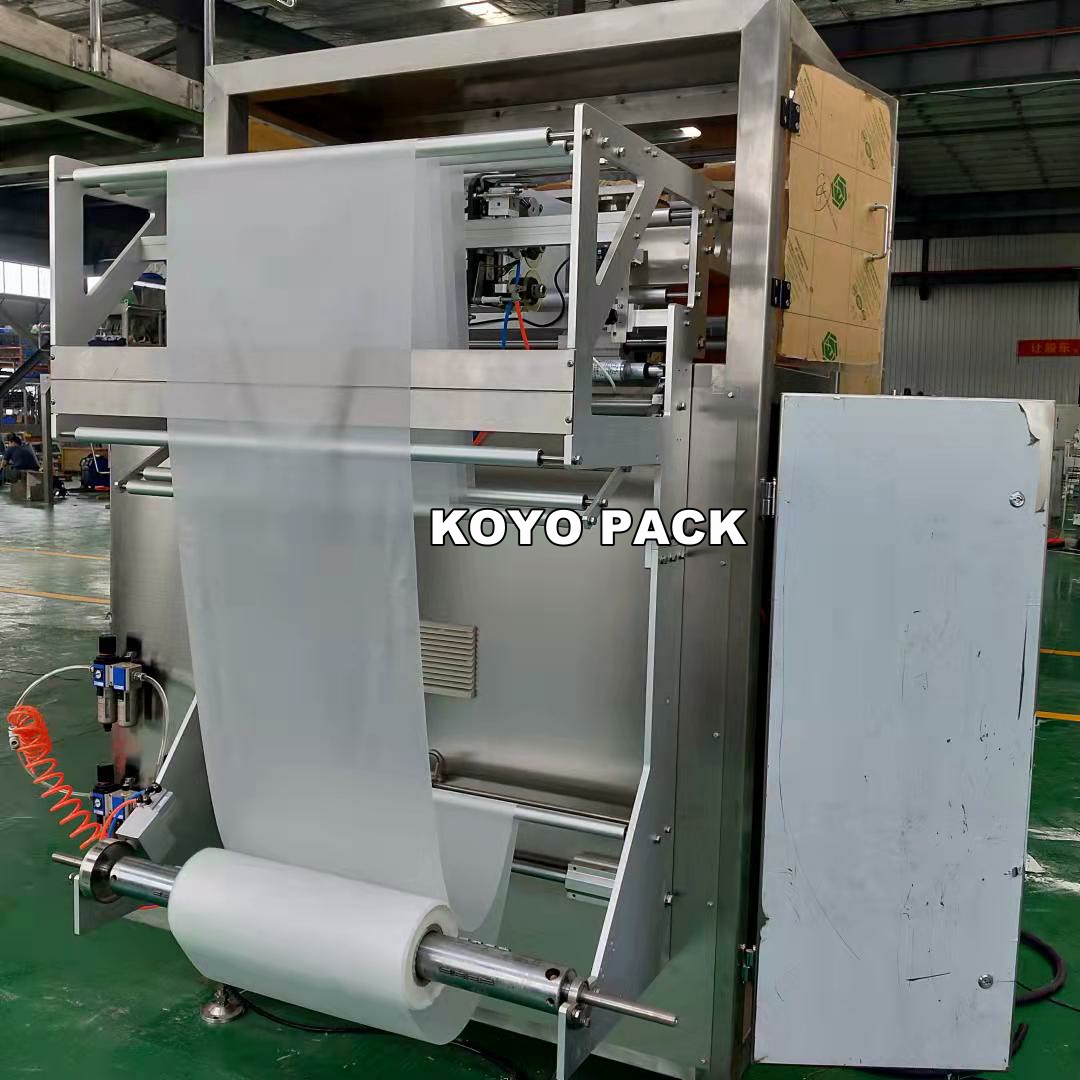

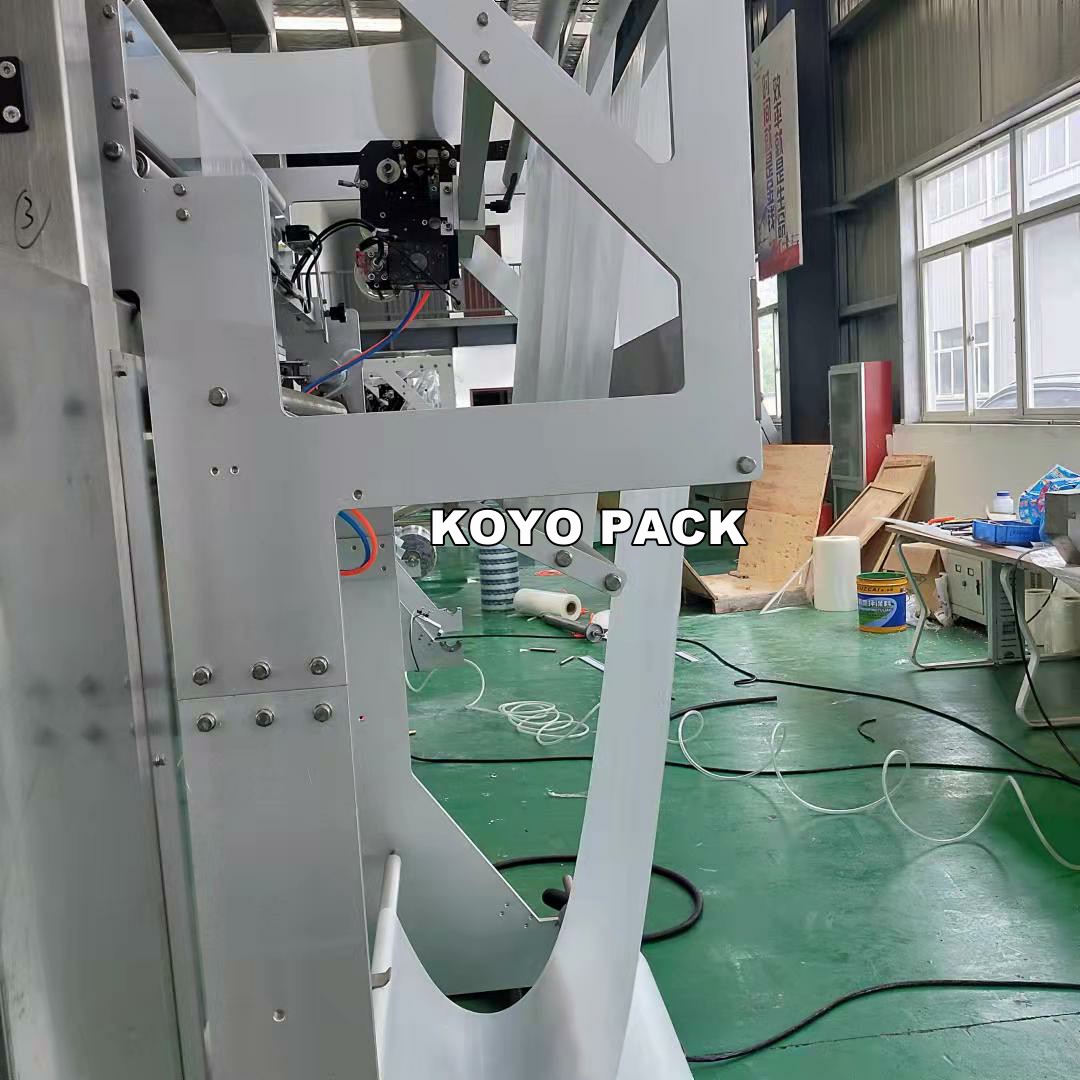

Machine components:
