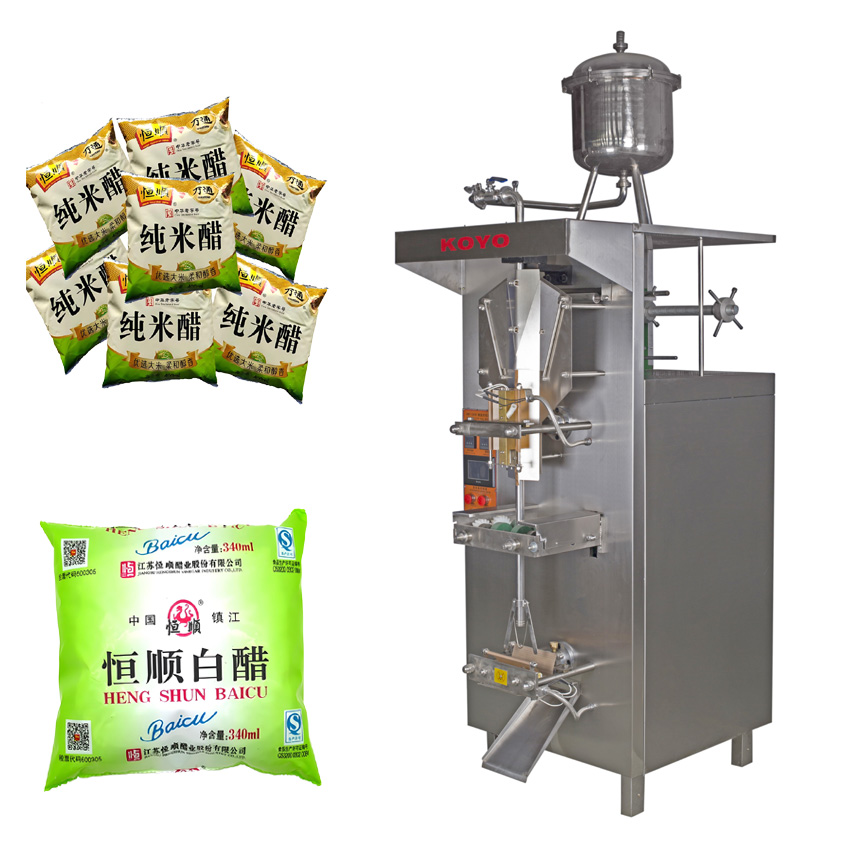

KOYO Brand DXD500 auto soy sauce packing machine

Equipment Overview:

The DXD500 model is the latest equipment meticulously developed by drawing on advanced technologies from domestic and international fully automatic liquid packaging machines. It is widely applicable for filling various liquid products such as beverages, fruit juice, milk, peanut milk, soy sauce, vinegar, edible oil, and more. This machine adopts a three-side sealing method, resulting in aesthetically pleasing and sturdy bags, making it the preferred choice for packaging liquid materials.

Featuring a stepper motor for tape feeding, it ensures stable operation and high precision in mark positioning. Utilizing PLC control technology, it allows flexible and convenient adjustment of bag length (digitally set via the human-machine interface) and easy mark alignment, significantly reducing the waste bag rate. The simplified control circuitry minimizes failure points, enhancing overall machine stability and facilitating ease of use and maintenance. All parts in contact with materials and the exterior housing are made of 304 stainless steel, fully enclosed to ensure compliance with national hygiene standards. Equipped with high-level gravity filling/quantitative pump filling, automatic carbon ribbon date printing (hot stamping embossing), and automatic mark positioning, it guarantees a complete and precise printed pattern on the product.

Features:

1. Stepper motor-controlled tape feeding ensures stable operation and high mark positioning accuracy.

2. PLC control technology enables flexible and convenient adjustment of bag length (digitally set via the human-machine interface) and easy mark alignment, greatly reducing the waste bag rate.

3. Simplified control circuitry minimizes failure points, enhancing overall machine stability and facilitating ease of use and maintenance.

4. All parts in contact with materials and the exterior housing are made of 304 stainless steel, fully enclosed to ensure compliance with national hygiene standards.

5. High-level gravity stirring filling/quantitative pump filling, automatic carbon ribbon date printing (hot stamping embossing), and automatic mark positioning ensure a complete and precise printed pattern.

Technical Parameters:

Film Width: 320mm (customizable)

Production Efficiency: 2,000 bags/hour

Voltage: 380V/50Hz

Power: 1.5 kW

Machine Weight: 500 kg

Overall Dimensions: 1100 × 1050 × 2100 mm
