KY50-B Vertical Type Brick Bag Automatic Vacuum Packaging Machine


Please enter your demands, our sales staff will offer you in 6 hours.

  • Product Description
  • Video

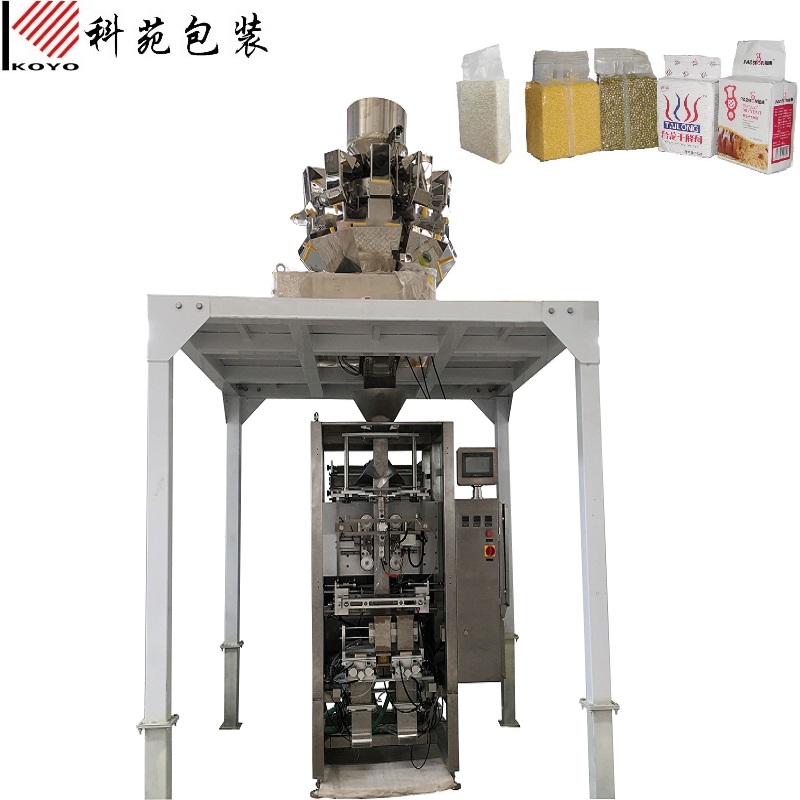

  • This machine including one set bucket feeding elevator, one set CJF2000 Auger measuring machine ,One set KY50-B vertical type automatic vacuum packing machine , one set output conveyor .This machine are widely use for packing food pharmacy chemical and other product in powder or small granule. Like coffee beans ,yeast powder ,rice and so on .The whole machine adopting inside pumping to vacuum product .The vacuum degree is very high and packing speed is very high ,the finished product is very nice and have a long shelf life.


    Technical parameters :

    Model :KY50-B

    Meter products:100g~1kg granules

    Packing speed :15~20 bpm


    Bag dimension:W80-250mm,L100-230mm

    Power :380V,50HZ,3P,5.5Kw


    Details introduction :

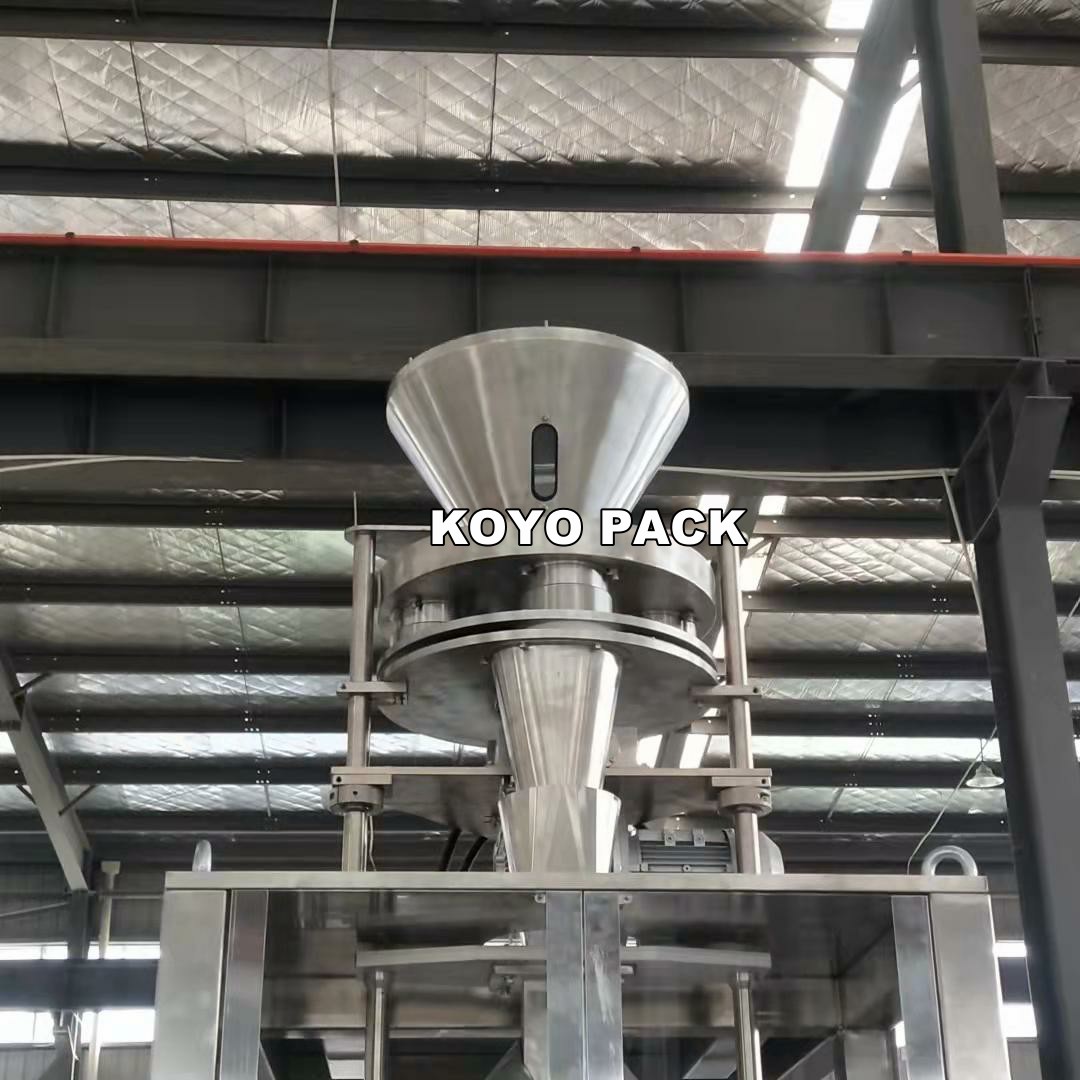

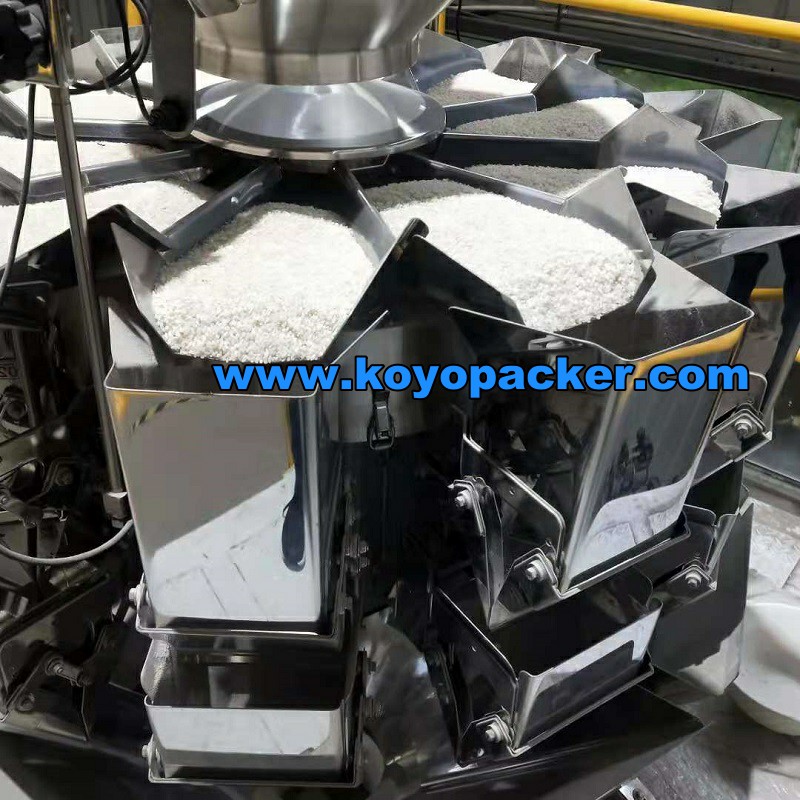

    1,CJF2000 Four head linear weigher



    This machine is four-head weighing machine, which is composed of storage bin, vibratory feeder, loadcell, weighing hopper and gate-opening mechanism.suitable for weighing of dry,bulk,granular and flaky material with reliable performance.All stainless steel hermetic casing with the function of corrosion resistance and dust prevention.It is widely applied in such packaging sectors as of daily chemistry,foodstuff,condiment,seeds,etc.

    Technical parameters:

    Metering capacity: 500g~1kg granules

    Metering speed:18~20times/min


    Machine weight: 500kg

     Max roll film width:520mm

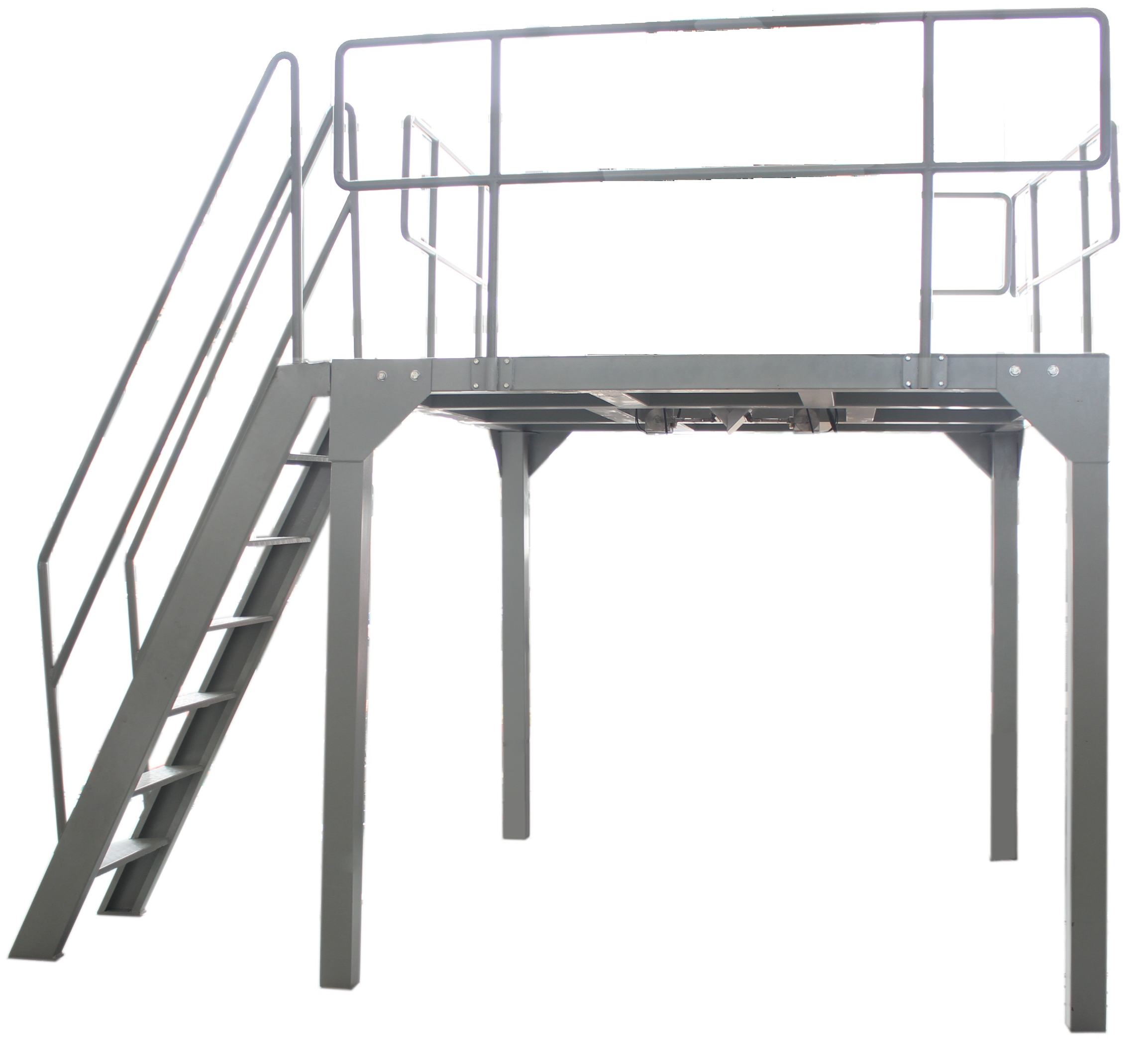

    2, Platform for supporting the four head linear weigher

    Made by sus304, with ladder and guardrail, for supporting the four head linear weigher

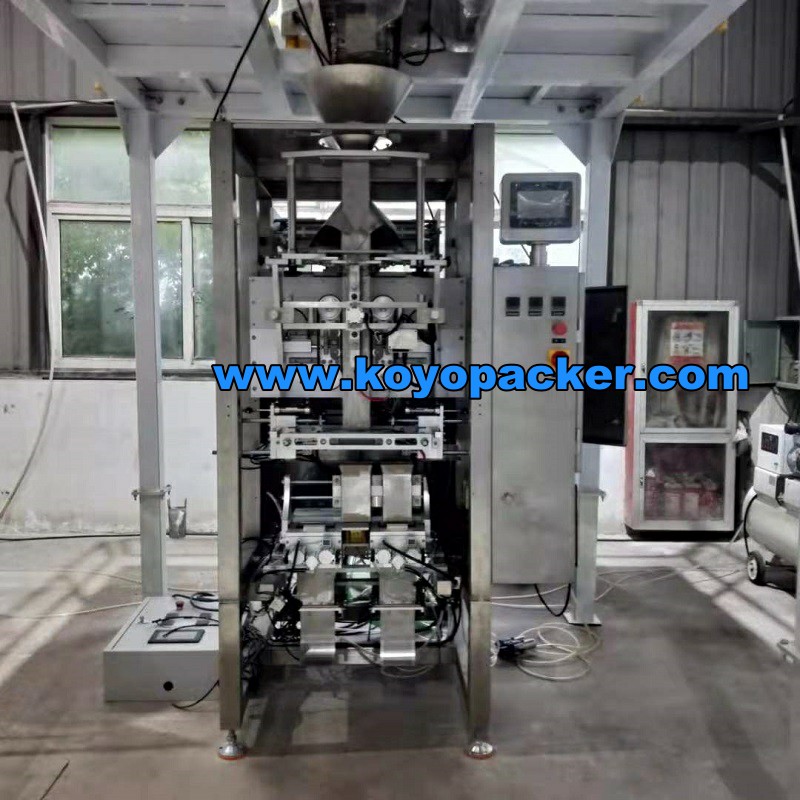

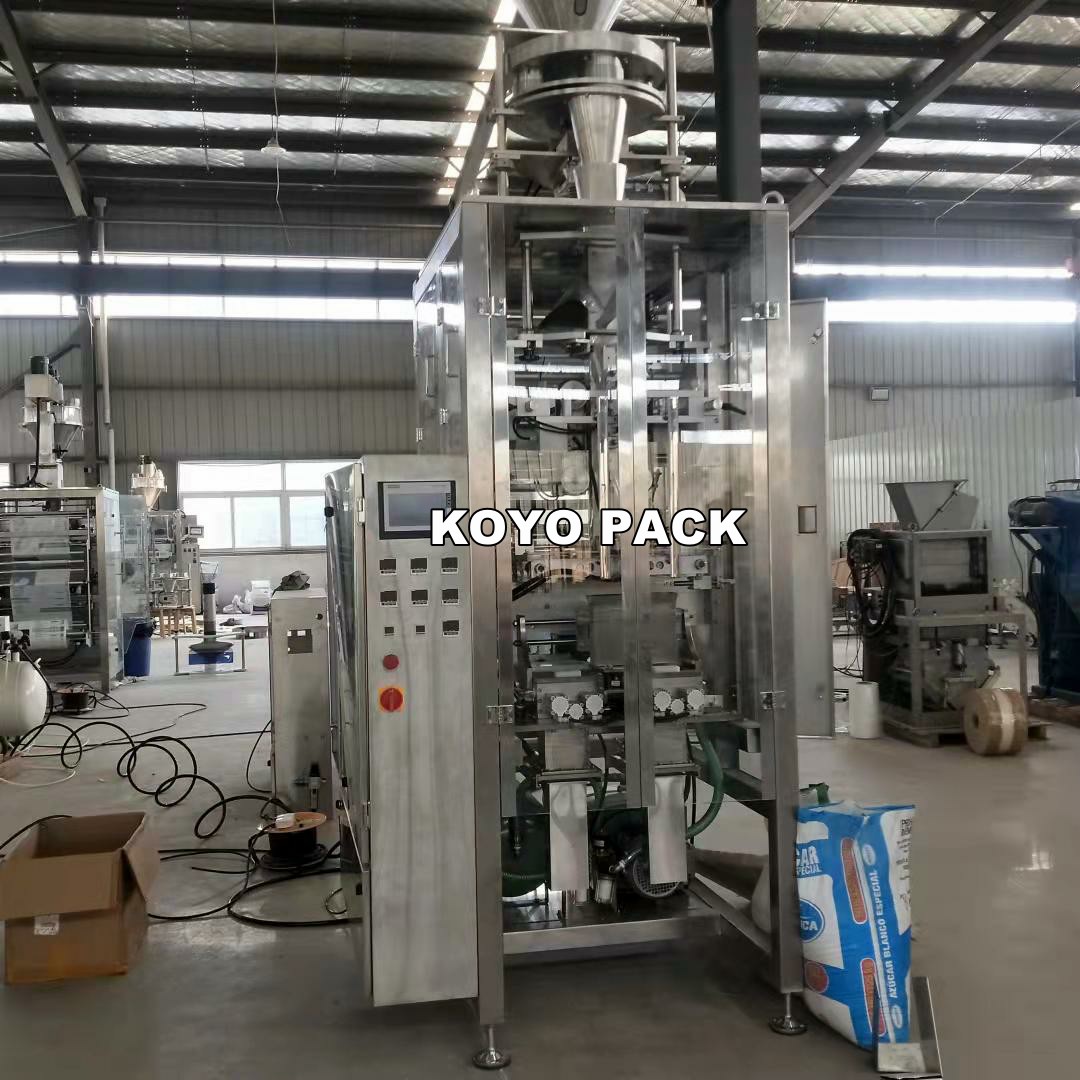

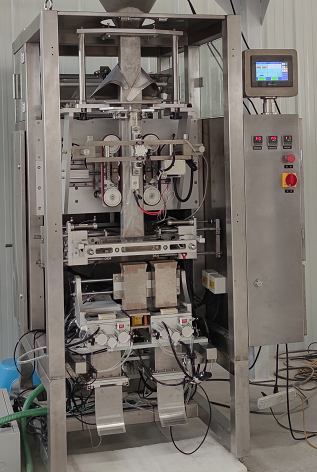

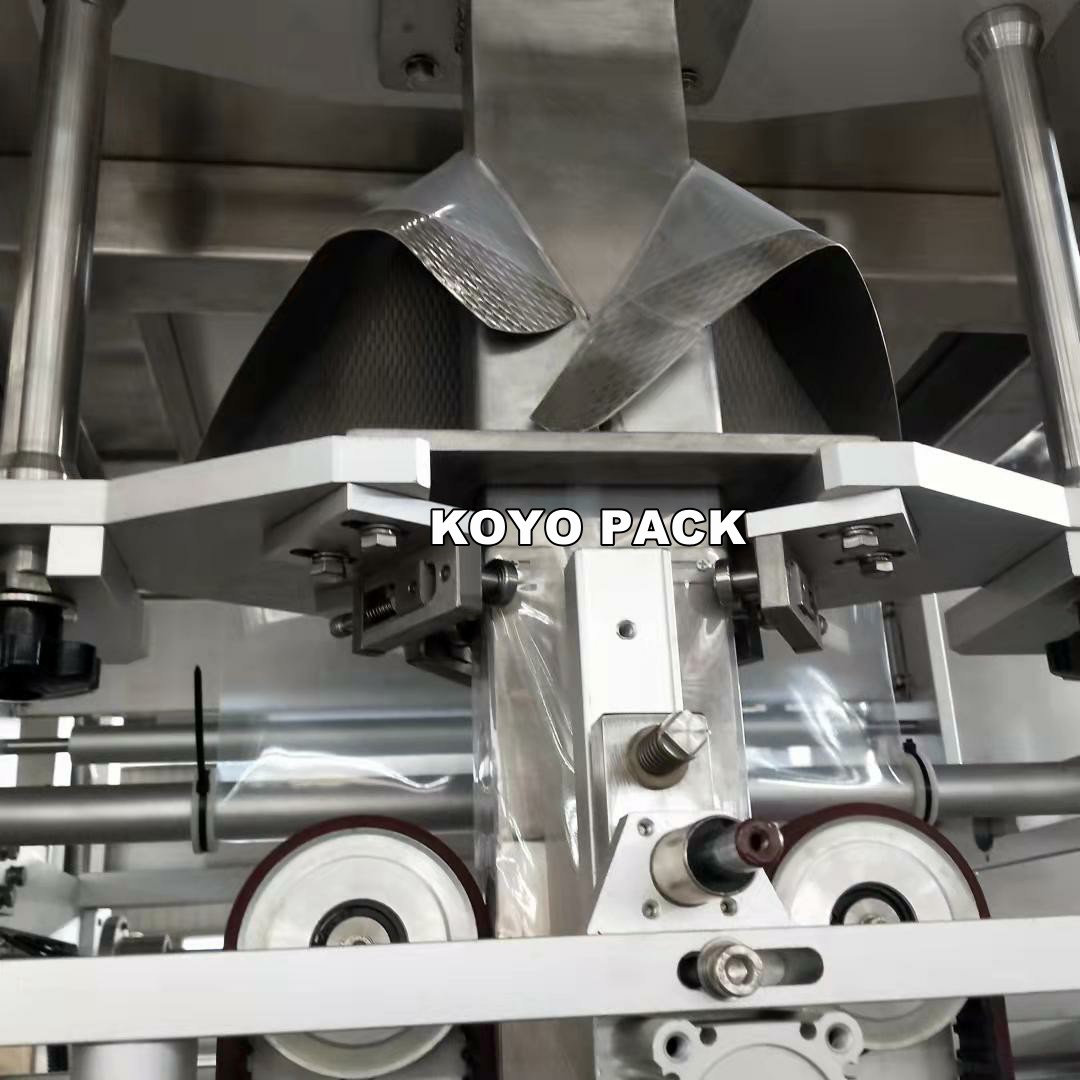

    3,KY50-B automatic brick bag vacuum packaging machine



    ♦  Machine fully controlled by Siemens  PLC & Touch-Screen

      Minute capacity can  automatically display on Siemens Touch screen

      Film transport system derived by Panasonic servo motor;

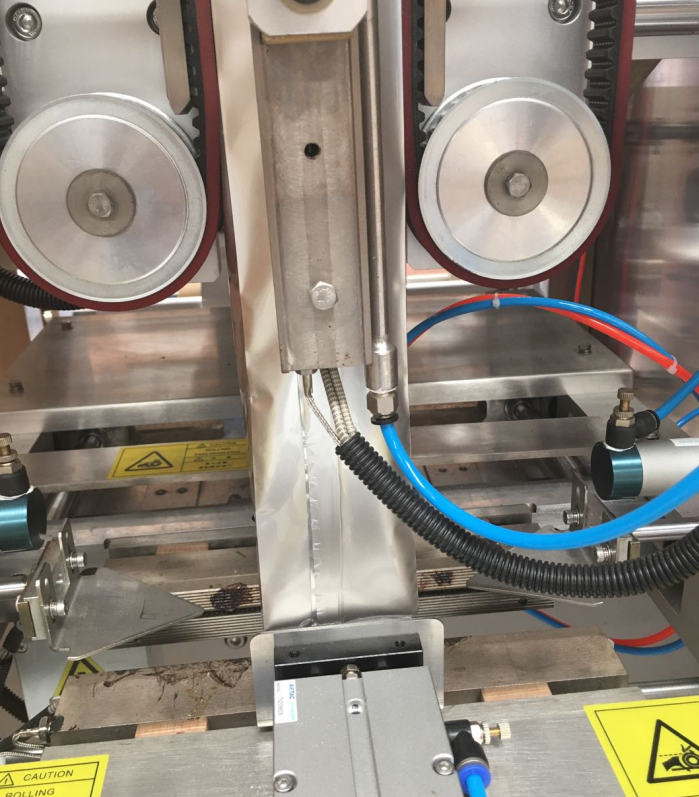

      horizontal Jaw sealing derived by Panasonic servo motor,sealed more strong;

    ♦  Safe quick change of tube and collar by just pull out the bracket

     Optoelectronics detect film position on collar to correct film excursion

     Electrical photo sensor inducting color code to control bag length

     Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting

     independent temperature adjustment.

      Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PE  PE/NYLON, aluminum foil based can be run on the machine.

      SMC Pneumatic Components& Schneider eletrical components

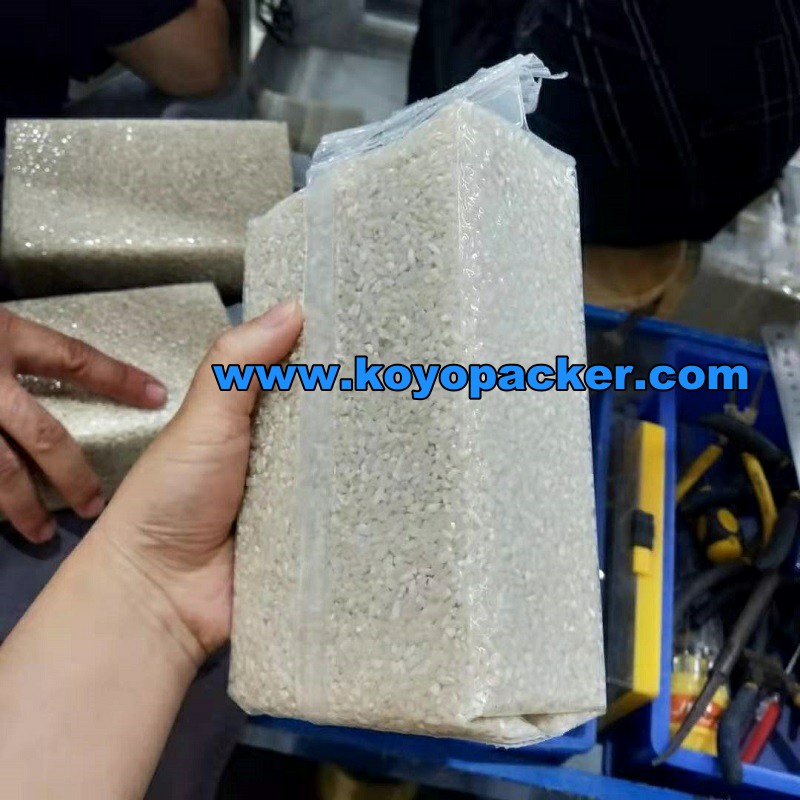

      The packing machine with bag edge folding and bottom flatting function to make a box type stand bag, which easy for vacuuming.

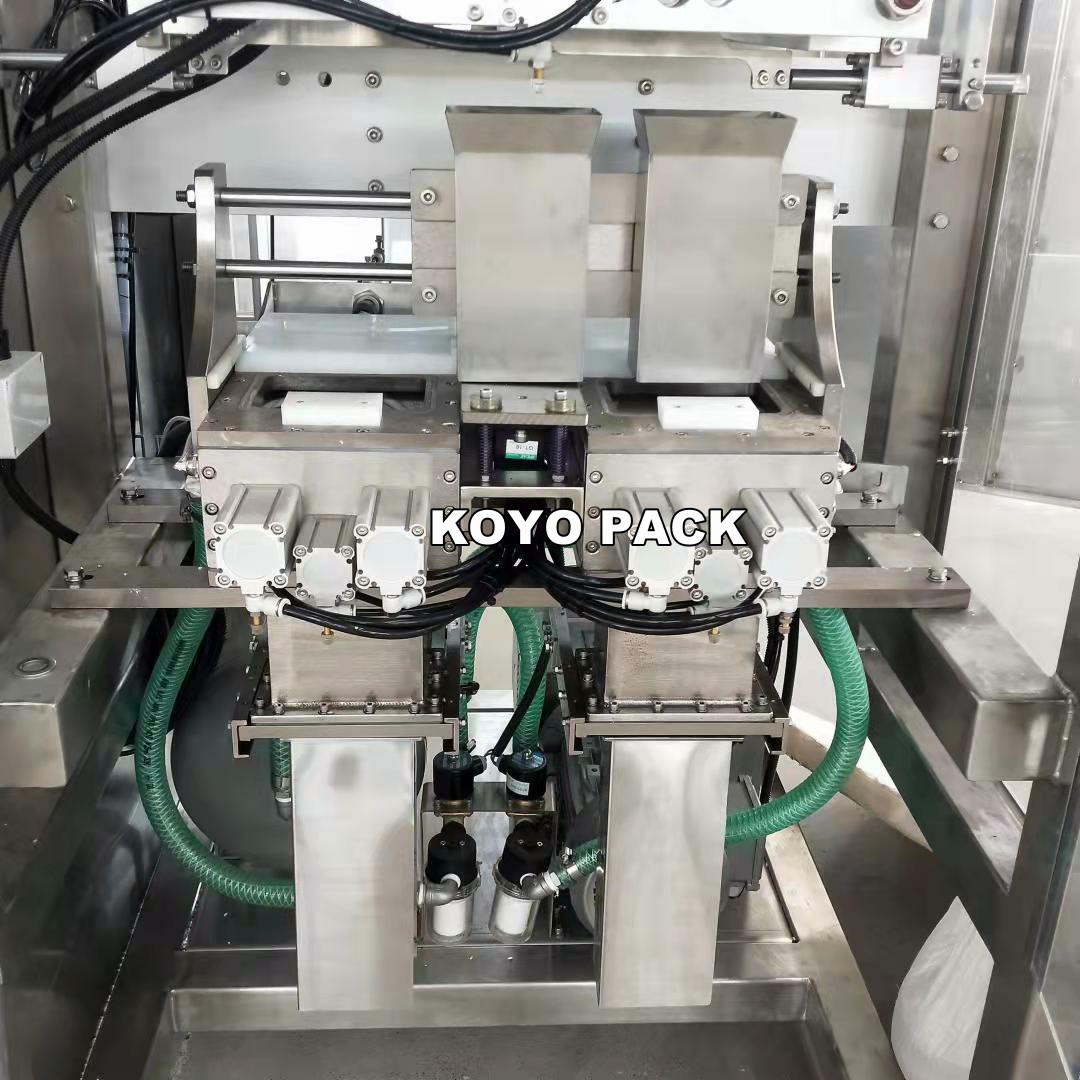

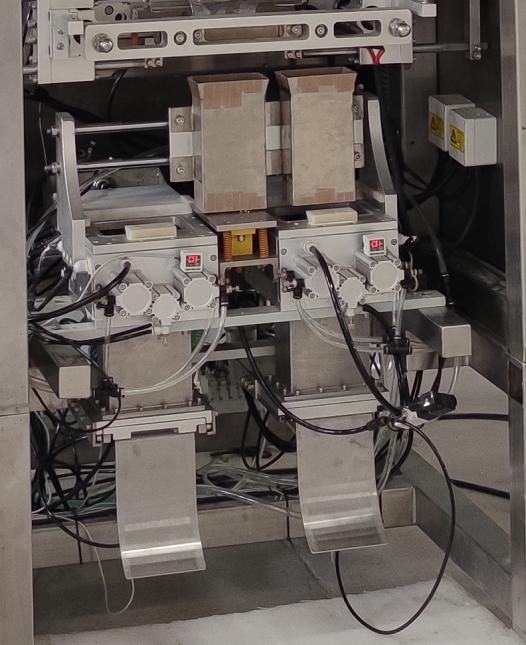

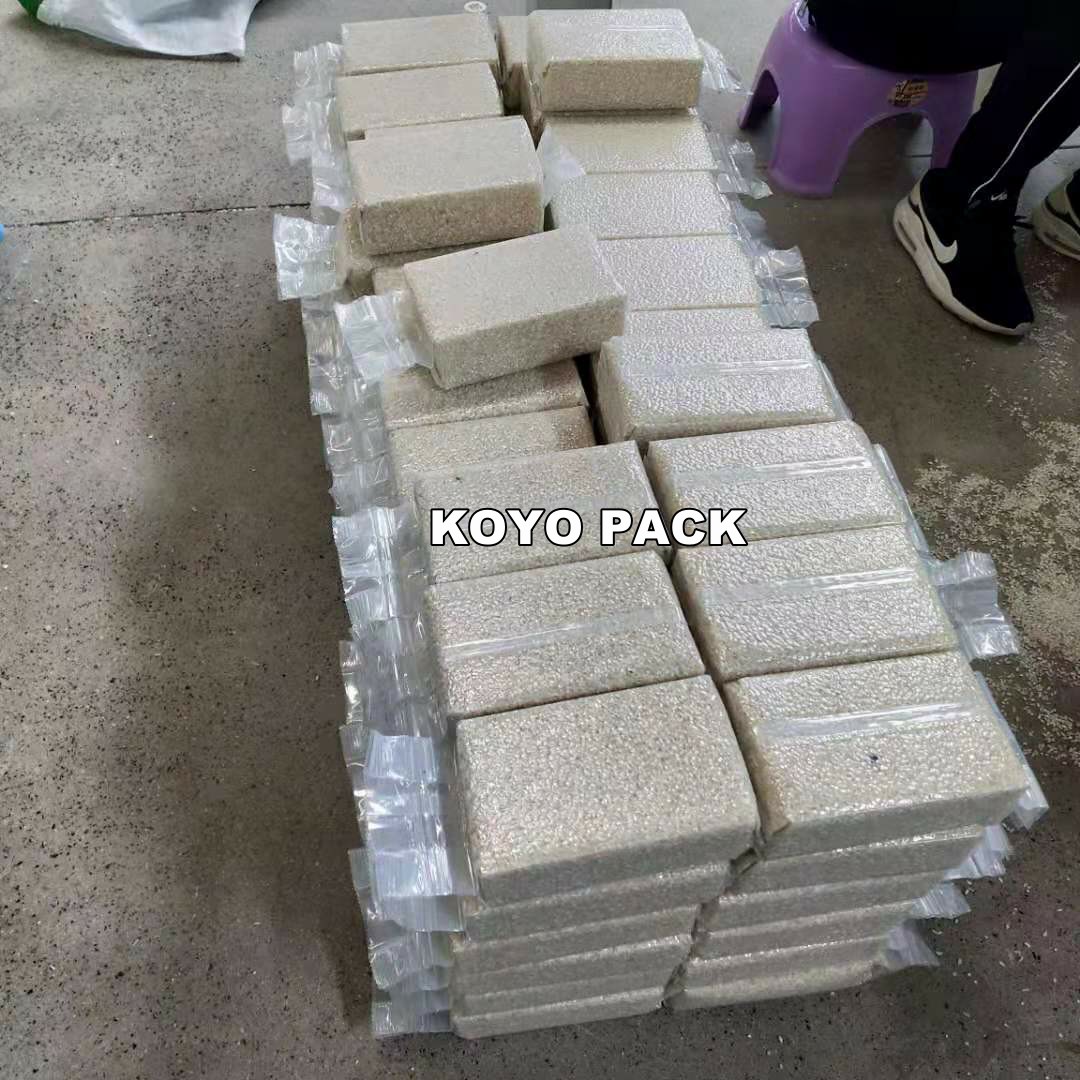

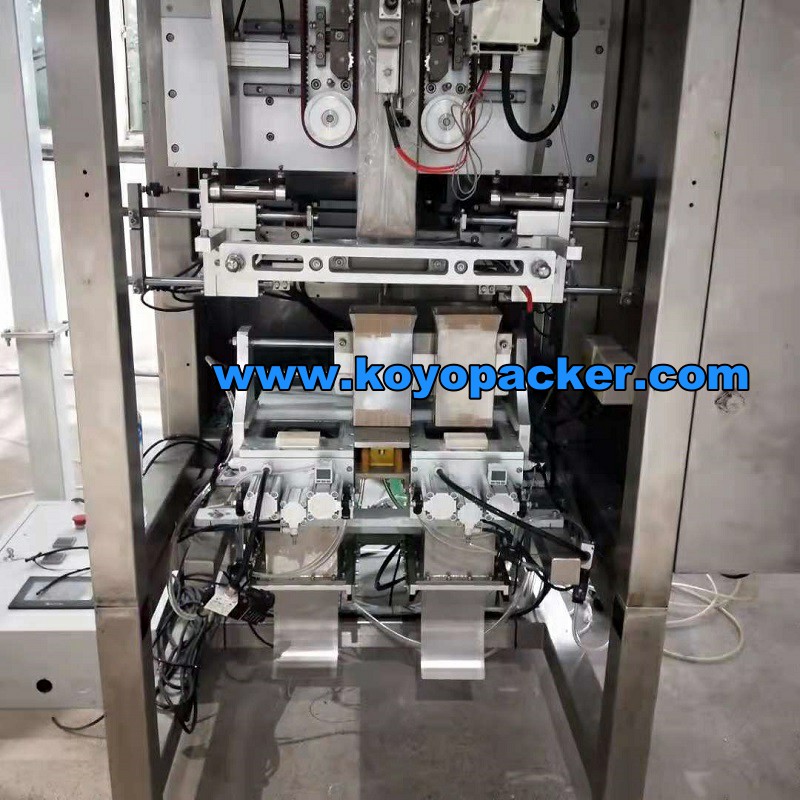

     Double chamber vacuum packing system for brick type of bag;

     18~20 bags/min for 450g-1000g brick type vacuum bag;

     Germany Beker vacuum pump;
