Granule box type bag packing machine


Please enter your demands, our sales staff will offer you in 6 hours.

  • Product Description
  • Video

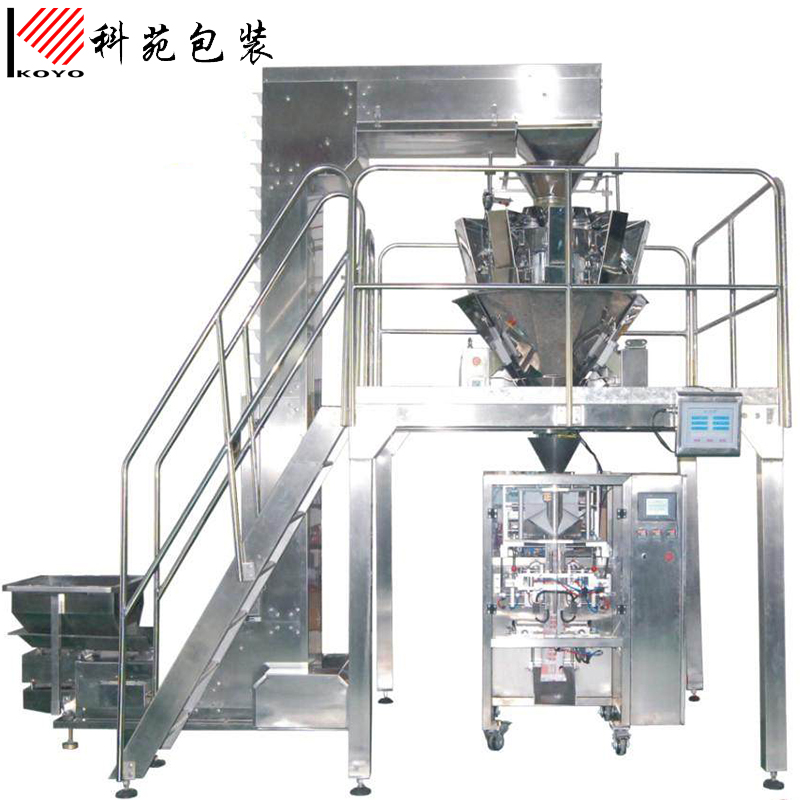

    This box-type bag packaging machine is a latest machine developed by our company, four corners are added on the packaging bag based on vertical bag, making the packaging bag have a stronger spatial vision, nicer appearance and more attraction. This packaging unit consists of one set box type bag packing machine, one set weighing machine,one set bucket elevator ,one set platform and one set take-off conveyor, suitable for weighing packing granules ,such as coffee beans, nuts in box type bag.

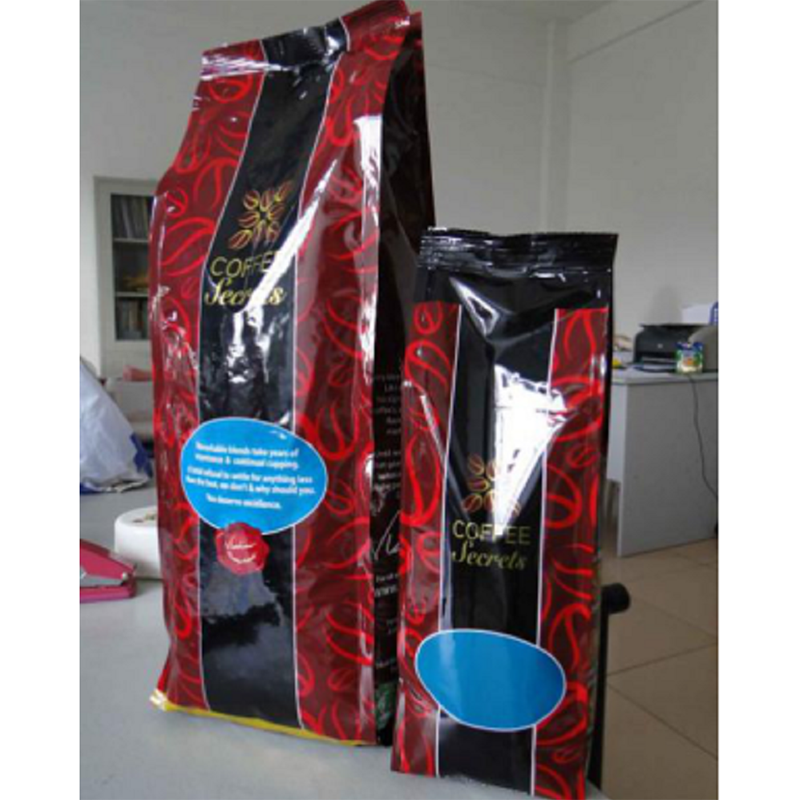

    Sample bags:



    Combination weigher

    Adopt high precision and high accurate loadcell of famous brand, resolution is improved up to 2 decimal;

    Program recovery function can reduce operation failures and support multi-segment weight calibration;

    No products auto pause function can improve weighing stability and accuracy;

    100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation;

    Linear amplitude can be adjusted independently in the running;

    Many languages available for global markets.

    Mechanical Character

    Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy;

    Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.

    Box type bag packing machine

    This machine own functions of bag-making ,bag sealing,date printing,cutting,etc.


    This machine own an independent bag edges folding &sealing,used for making box type bag, quad bag.

    Adopts Siemens PLC & Touch ScreenPANASONIC servo motor, Japanese Photo Sensor, Korean Air valve,Schneider electrical components,etc.

    Can be installed with ribbon printer, thermal transfer coding machine,label sticking machine for printing dates,letters,QR code,bar code and sticking labels on bag.

    Automatically form and make a bag by using roll film


    Technical parameters:


    Weigher/Dosing system

    Bag type/

    Bag Material

    Roll Film width

    Bag size:(mm)




    Quad bag/box type bag/

    Laminated roll film

    Max 540mm

    Front width: 50-190; Side width: 35-90;

    Edges seal:5-8; bag length:120-340;

    Max 50BPM



    Max 730mm

    Front width: 60-260; Side width: 45-120;

    Edges seal:5-8; bag length:120-460;

    Max 50BPM


    Machine components
