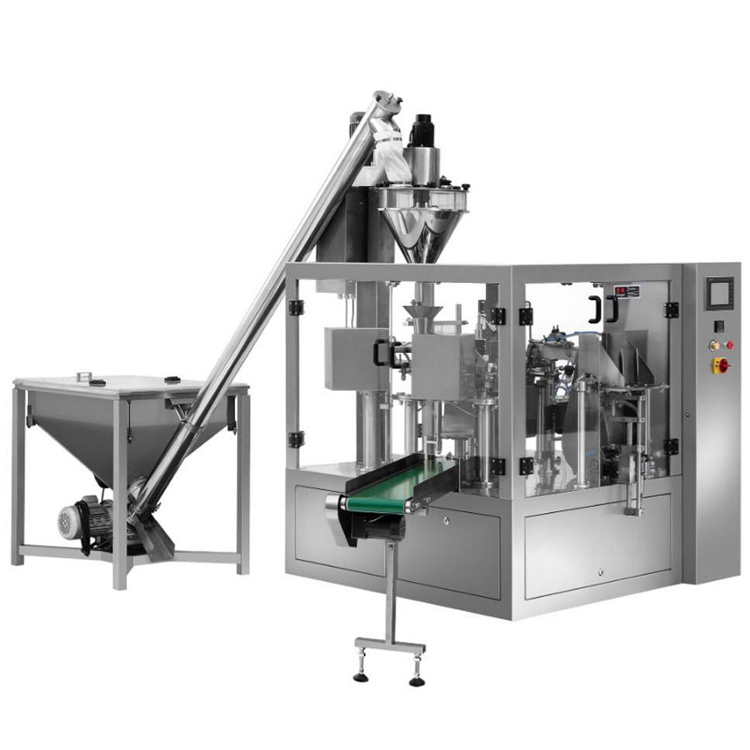

Auto premade pouch packaging machine
Product description:
The KY series of KOYO premade pouch packaging machines is suitable forpowder product, granule product, liquid product and paste product automatic packing. Rotary bag-given packing machine with different dosing(such as multi-head weigher, liquid filler, auger filler etc.),can be suitable for the automatic packing for granular, powder, liquid, paste etc.
Feature:
l)Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
2)Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
3)The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
4)The part where touch to the materials is made of stainless steel and according with the request of GMP.
5)Automatic Pre-made Pouch Rotary Packing Machine designed by Korea
6)Equipped with a 10'' PLC touch screen with graphic intraface and an automatic lubricating system.
7)Washing down frame, parts above the table made by 304# stainless steel and alumina material.
8)The whole machine weights 1.8 ton, and its grippers can work at the 5 KGS bag loading.
9)Verify weight in weighing station, and compensate by servo filling system.
10)Vacuum pouch in sealing postion
Technical Parameter:
Model: | KY-8-300 |
Working Position: | Eight-working position |
Bag Material: | Laminated Film OPP/PET/PE OPP/PET/PP |

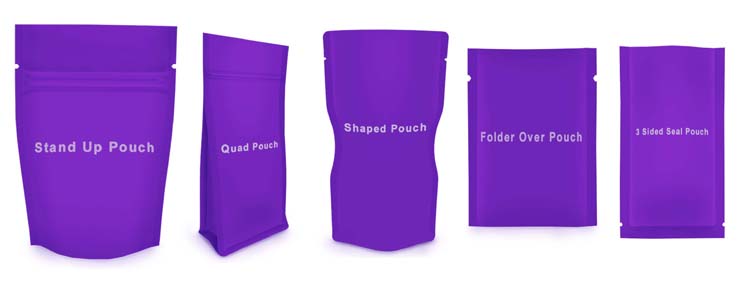

Bag Pattem: | Stand-up pouch,flat bag |
Max filling weight: | 10-5000g |
Filling Accuracy: | 0.5-1.5% |
Bag size: | W:200-300MM L:200-450MM(Can customized) |
Speed: | 10-60bags/min |
Voltage: | 220V/380V 50/60Hz |
Total Power: | 3KW |
Air Compresser: | 0.6-0.8Mpa 0.6m3/min |
Detecting Device: |
No ribbon,alarm and Emergency stop No pouch or pouch open error,no filling no sealing |
Safety Device: |
Open the door,alarm and emergency stop The air pressure no enough,alarm The sealing temperature anomaly,alarm |
