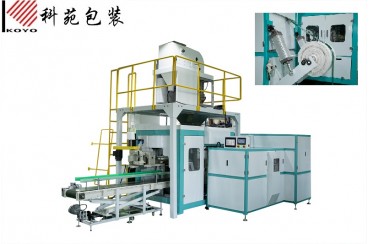

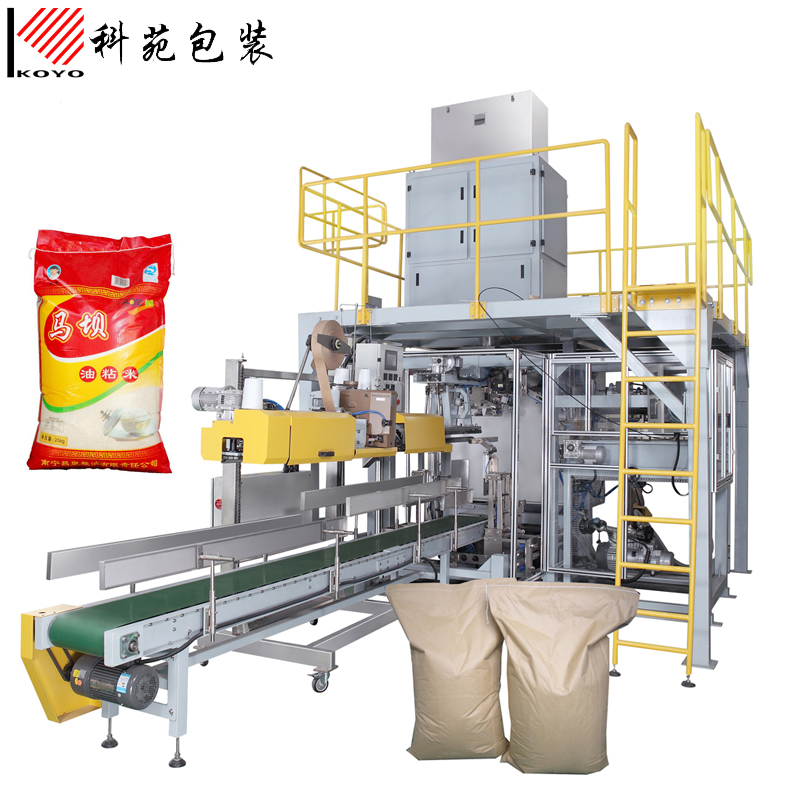

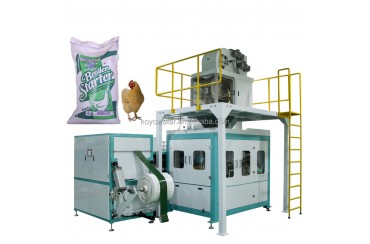

Auto granule bulk bag packaging&pallet robot

ASK FOR A QUOTE

Please enter your demands, our sales staff will offer you in 6 hours.

Clicks:
  • Product Description
  • Video
  • Introduction:

    KYZD-K system auto granule bulk bag packing machine is developed specifically for 10~50kg heavy bag of granule products which made in agriculture and food industry,such as rice,seeds,fertilizer, feed, sugar,pet food,etc. This machine can realize automatic weighing,bag-feeding, filling, bag-conveying, sealing/sewing, etc.Our company new improve the technology, using high speed servo weighing machine instead of normal weighing machine, increase the weighing speed by a large margin.



    Application:

    Sample bags:

    Advantages:

    Machines

    Features

    High speed servo weighting machine



    u Contact parts are made by stainless steel;

    u Single weighing head;

    u Servo motor controlling the feeding gate;

    u Touch screen for English interface operation.

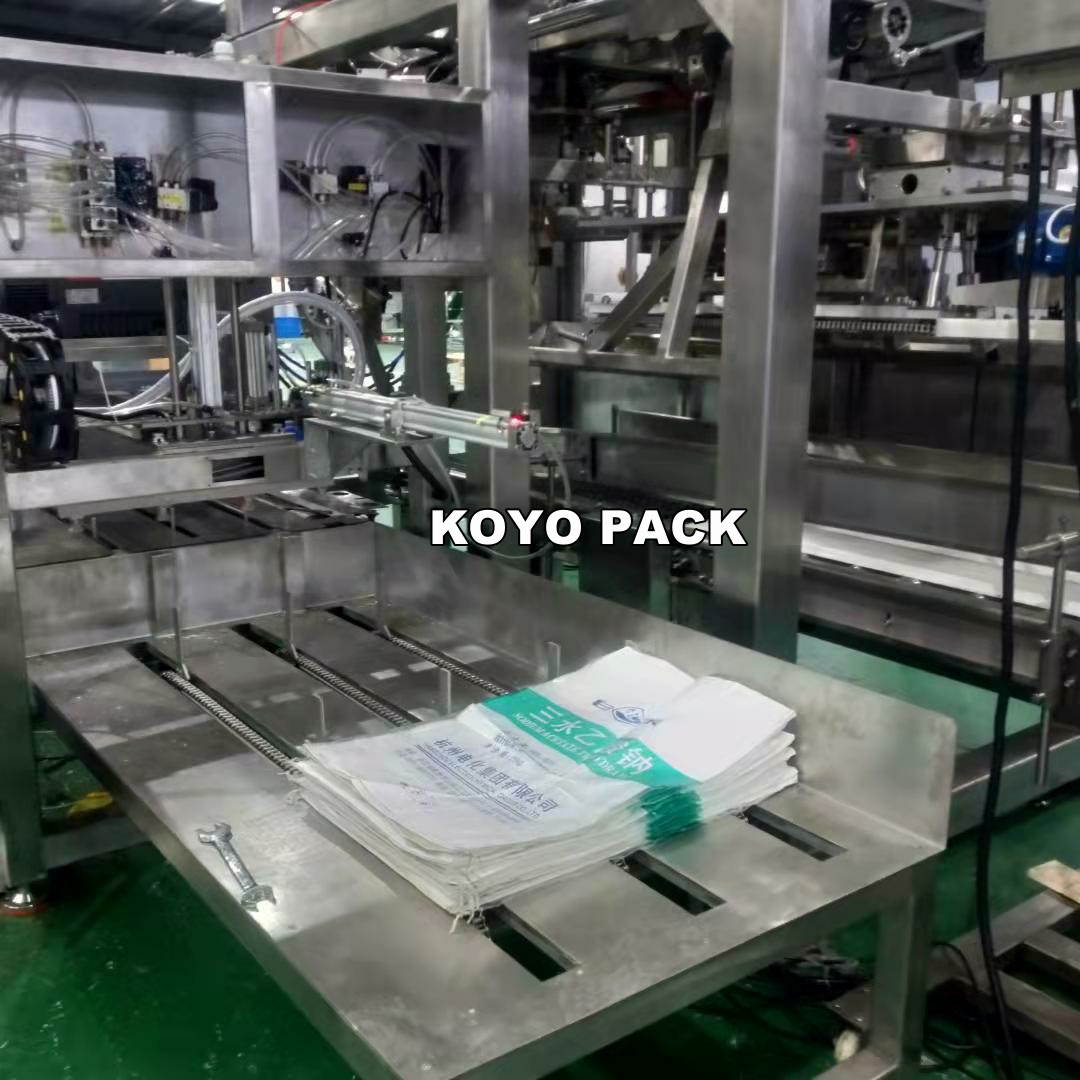

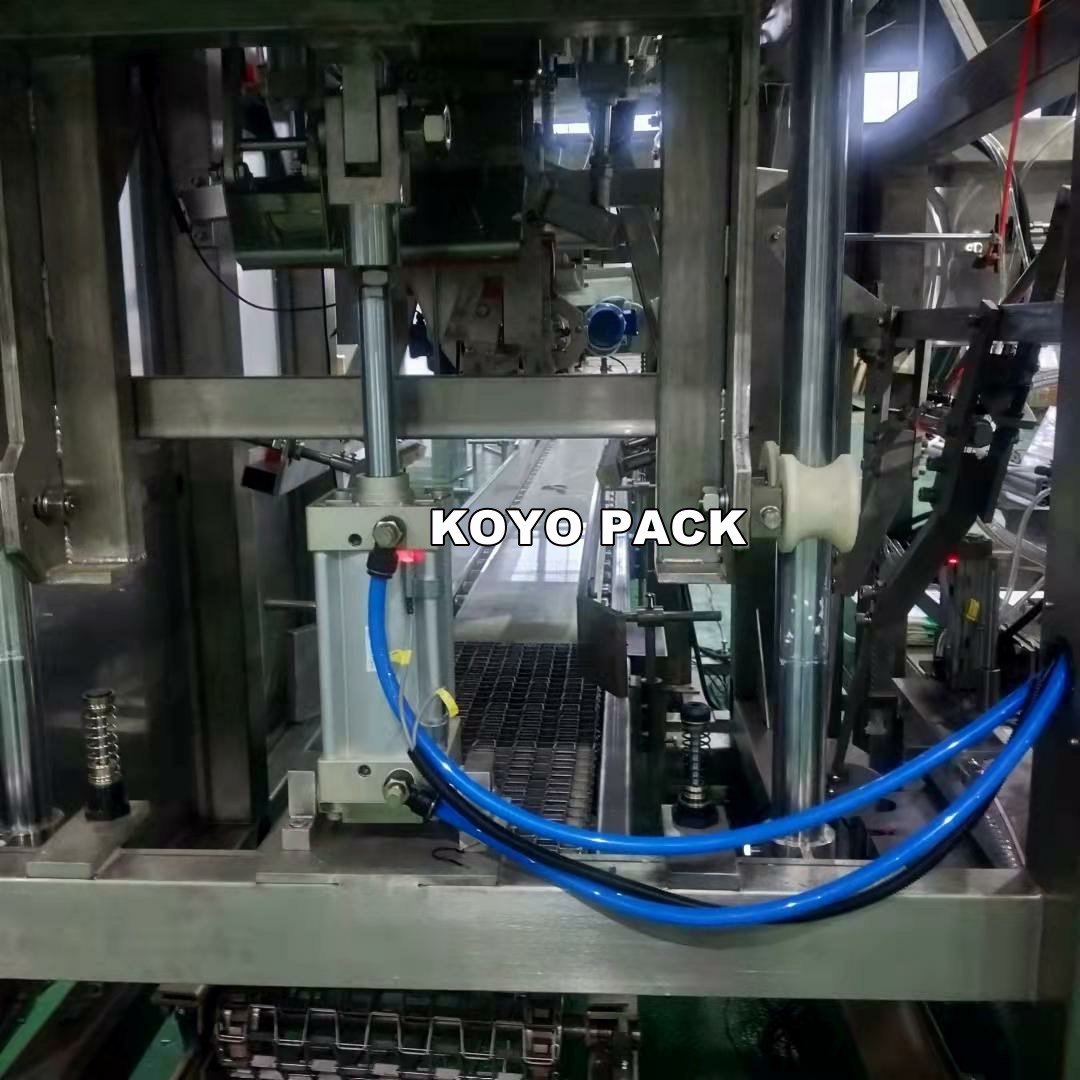

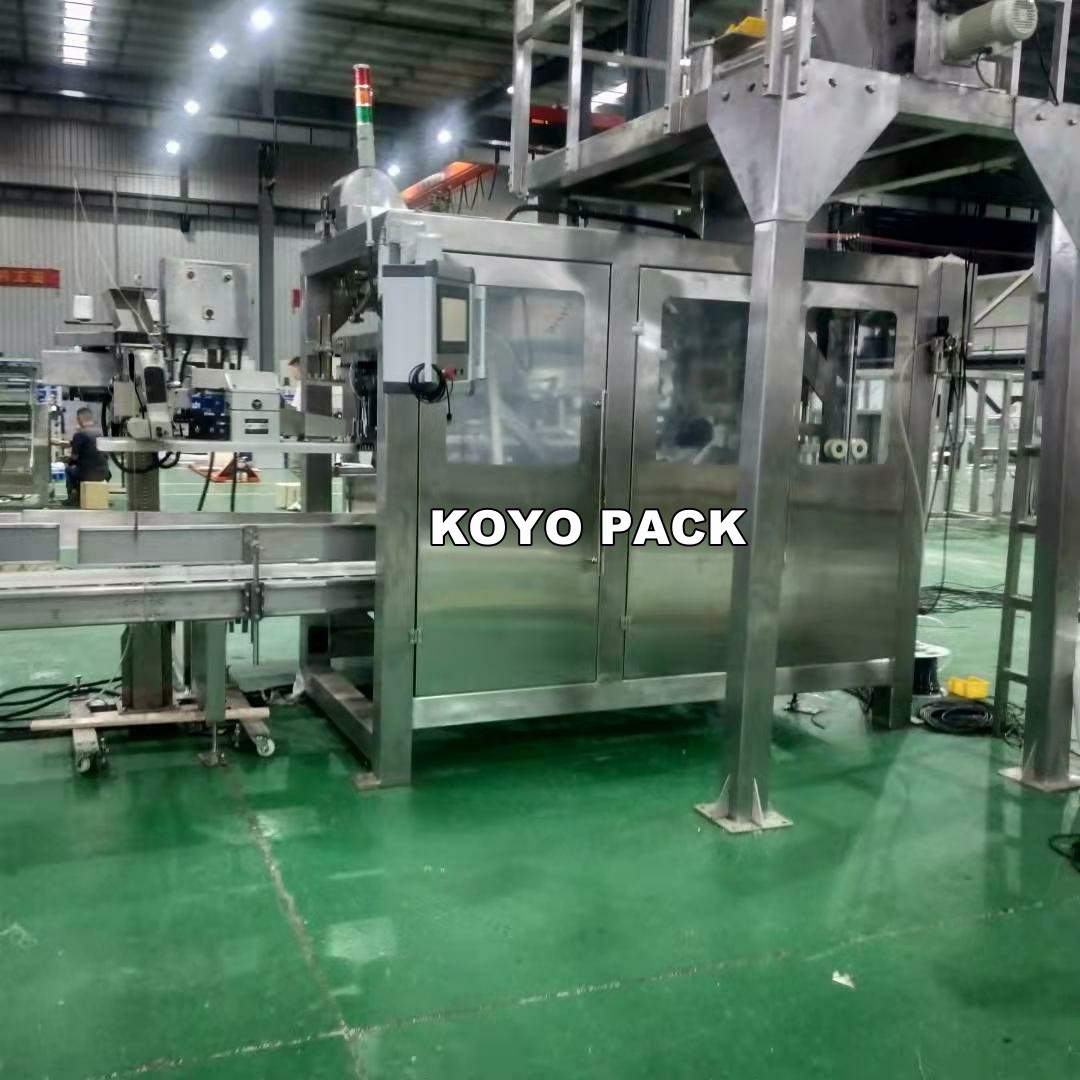

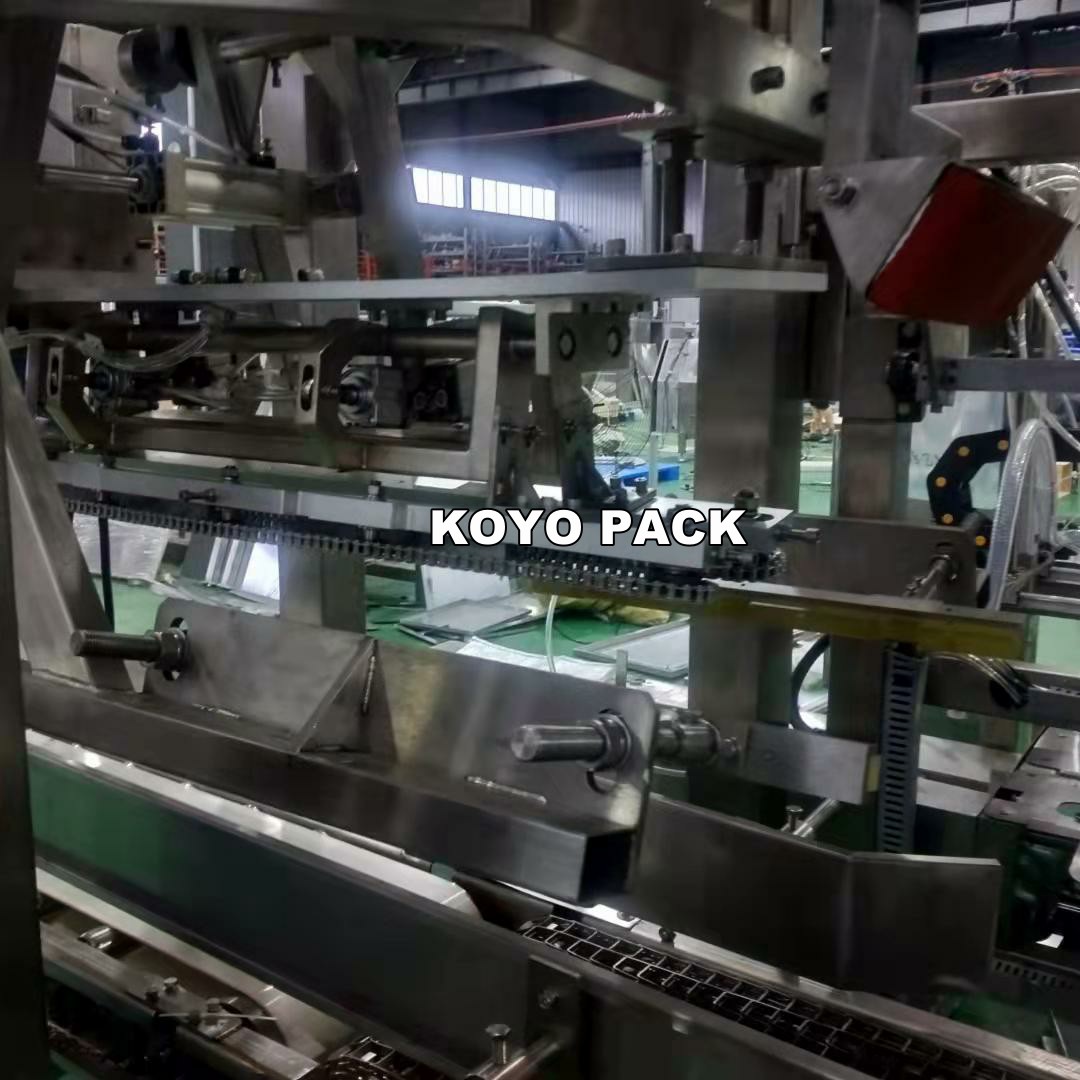

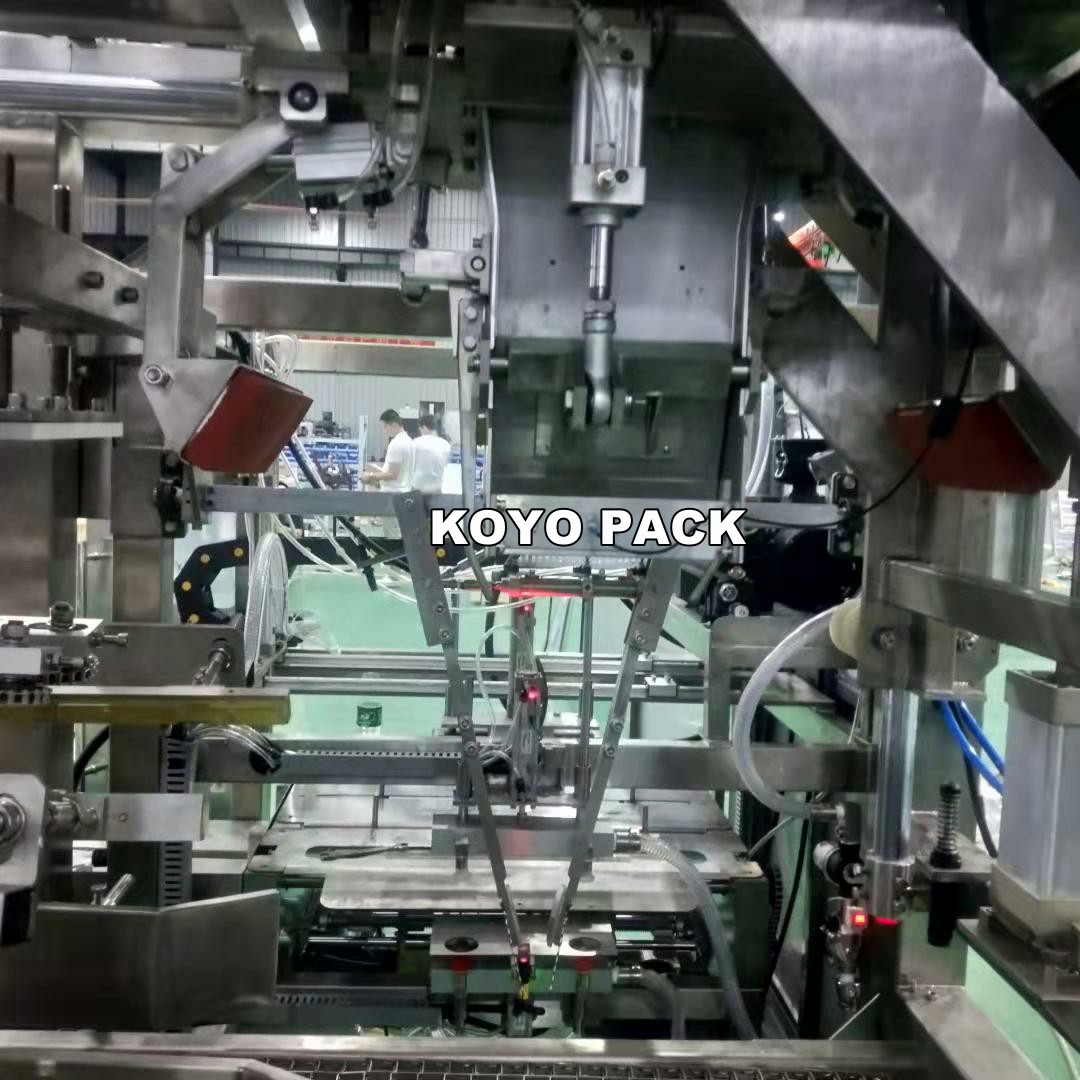

    Automatic bulk bag packaging machine



    u Contact parts be made by S.Steel;

    u With functions for automatic bag taking,bag opening, powder filling etc.

    u Touch Screen & PLC Siemens;

    u SMC air Pneumatic;

    u Delta Servo Motor;

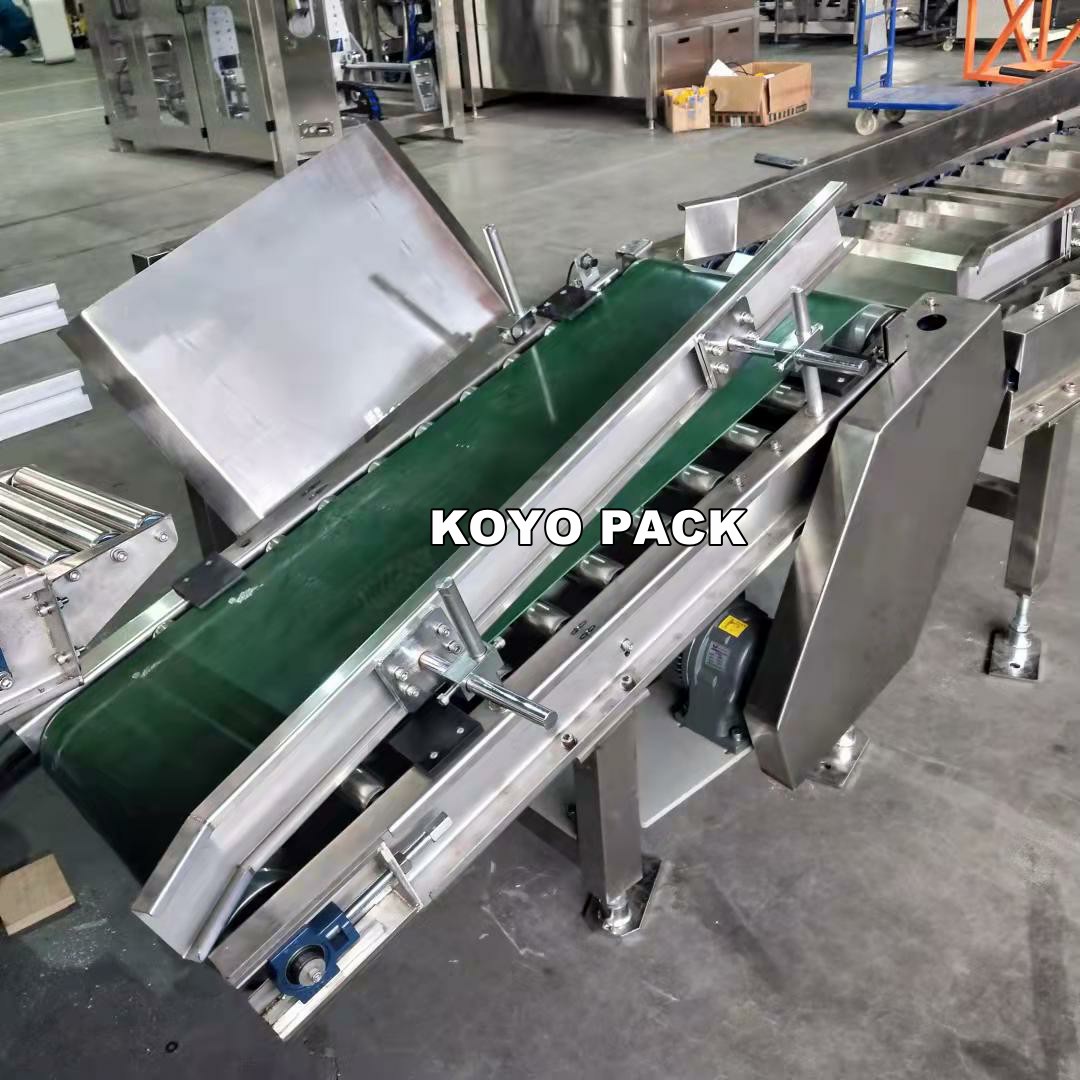

    u Conveyor system;

    Automatic sewing machine



    u With sewing machine;

    u Stitching with bag folding;.

    u Single line stitching.

    u Auto Pneumatic cutting.

    Plat form



    u For weighing machine supporting

    u With guardrail and sloping ladder;

    u Made by painted steel.

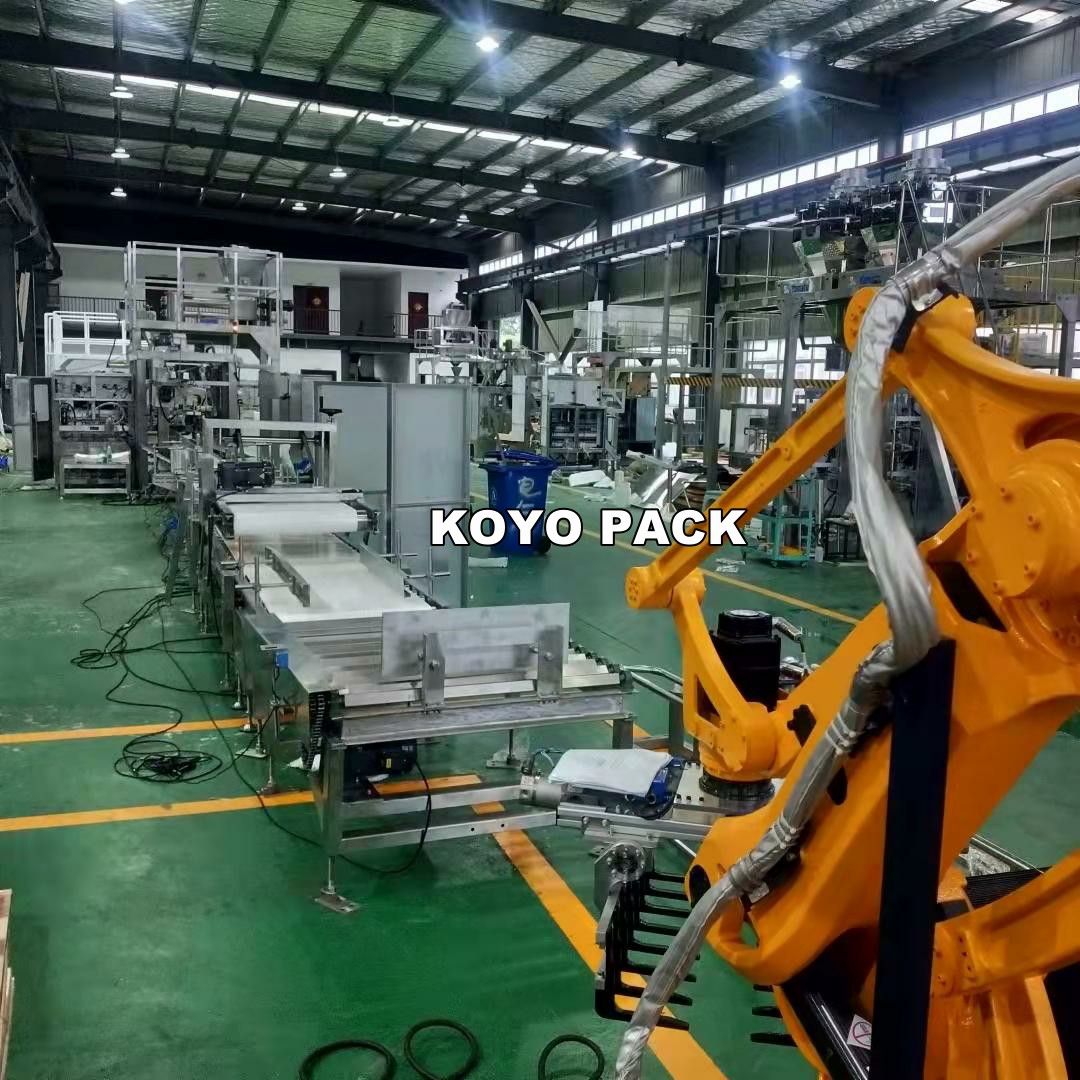

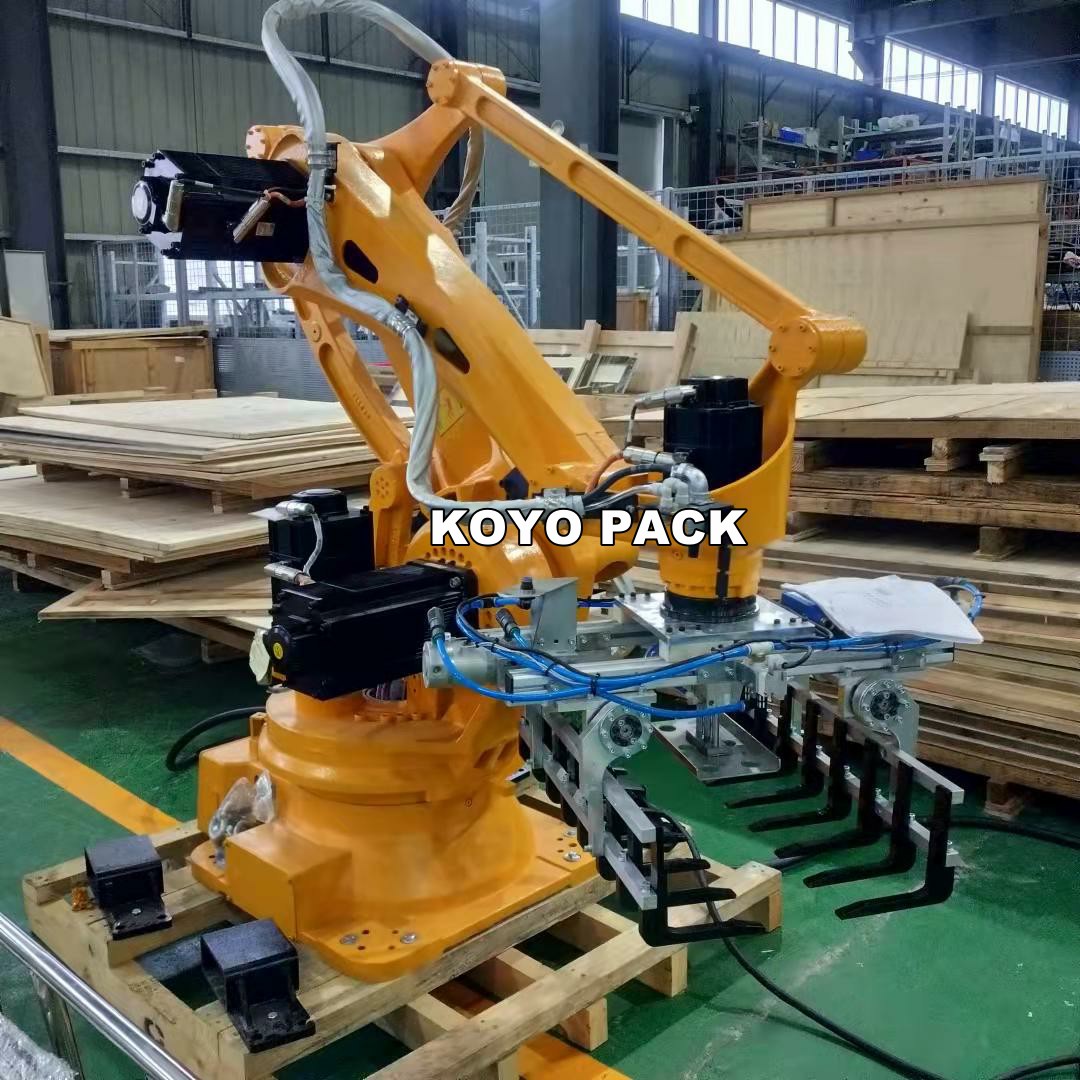

    Pallet robot

    u Customer can choose different international brand robot ,such as ABB,KUKA,FUJI for China brand

    uCan offer pallet system includes pallet library,empty tray feed conveyor,full tray conveyor,wrapping machine,etc. To realize auto stacking and wrapping.



    Technical parameters:

    Parameters

    KYZD-K10

    KYZD-K25

    KYZD-K50

    Material of premade bag

    PP Woven bag

    Packaging products

    Granules

    Packaging size

    350-450*630-830mm

    450-550*800-1000mm

    550-650*900-1100mm

    Speed

    6~15bags per min

    Weighing accuracy

    ±0.2%

    Power supply

    380V±10%  50Hz   6KW

    Machine weight

    1900kg

    2100kg

    2500kg

    Machine size

    5500*1600*4200mm

    5800*1800*4500mm

    6000*2000*4900mm

    Air supply source

    0.6MPa, 0.5m3/min

    Sealing type

    Woven bag:sew;kraft paper bag:sealing/sew;plastic bag:sealing
