Semi-auto granule packing machine

ASK FOR A QUOTE

Please enter your demands, our sales staff will offer you in 6 hours.

Clicks:
  • Product Description
  • Video
  • Introduction:

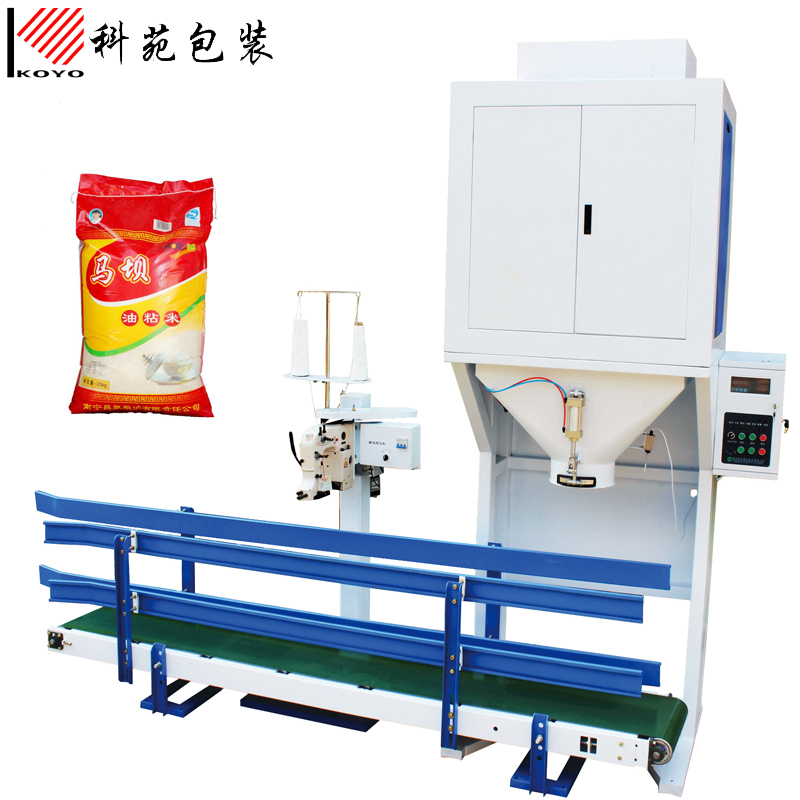

    The total unit includes one set of DCS-50 automatic weighing machine, one set 2.5 meters belt conveyor, one set of sewing machine, used for weighing filling granules, such as: rice, seeds, grains, etc. in pp woven bags and sewing the bag.



    Application:

    Advantages:



    1.Convenient to be operated: only need to coat bag manually and touch bag-clip switch charging, feeding, inflation and discharging will be completed automatically;

    2.Matching high accuracy sensor, one gate main feeder and one fine feeder cooperating work in order to keep high accuracy;

    3.Software self-adapting, error automatically amended more-less alarming ,trouble self-inspected functions, etc.;

    4.Number and quantity of package automatic counting, printing and data communication functions, etc.;

    5.Widely range of quantitative, high precision and matching with a bag-sewing machine which has multi-functions and high effective;

    6.Adopting imported pneumatic organ which is reliable, easy to maintenance and non-polluted;

    7.The machine part contact with material adopting stainless steel 304 which is safe and sanitary and not easy to eroded. So the equipment has a long life;

    8.We will adopts the ware resistance plastic bear which no need bath the oil.



    Technical parameters:



    Model

    KYS-10

    KYS-25

    KYS-50

    Weighing range

    1-10kg per bag

    10-25kg per bag

    25-50kg per bag

    Weighing head

    One or Two head

    Speed

    500-600bags/hour

    ≥360bags/hour

    ≥300bags/hour

    Accuracy

    X(0.2)

    power supply

    AC220V 50HZ 150W

    Compressed air

    0.4-0.8MPA

    Conveyor belt length

    2.5meters

    Material

    Parts contact with products are SUS403, other parts are carbon steel with paint
